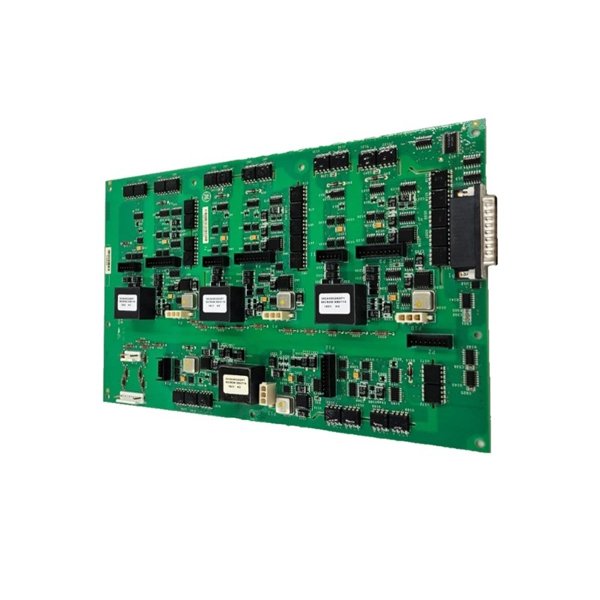

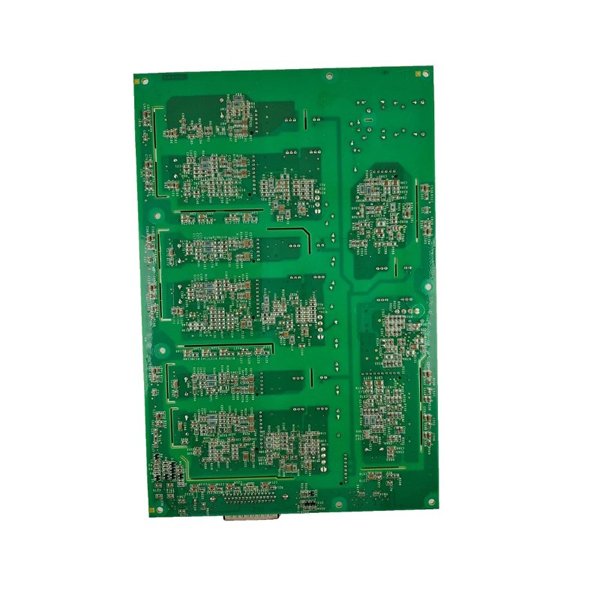

General Electric IS210AEDBH3A AE Bridge Interface

The GE IS210AEDBH3A AE Bridge Interface is a high-performance asset protection device designed for industrial monitoring systems. It serves as a critical interface for Acoustic Emission (AE) sensors, enabling precise detection of vibrations, leaks, and structural anomalies in machinery. The device integrates seamlessly with GE’s monitoring platforms, providing accurate signal conversion and transmission for real-time condition monitoring.

This AE Bridge Interface is engineered to operate reliably in demanding industrial environments, offering stable signal amplification, low noise interference, and compatibility with a wide range of AE sensors. Its design ensures minimal signal loss and maximum data fidelity for predictive maintenance and early fault detection.

Product Advantages

• High Signal Integrity: Maintains accurate AE signal conversion with minimal distortion.

• Wide Sensor Compatibility: Supports multiple AE sensors, enhancing flexibility for monitoring various equipment types.

• Robust Industrial Design: Built to withstand high vibration, temperature variations, and harsh conditions.

• Real-Time Monitoring Support: Enables immediate fault detection, reducing downtime and maintenance costs.

• Easy Integration: Compatible with GE Proficy and other monitoring software platforms.

• Low Noise Amplification: Reduces false alarms and improves detection accuracy.

Technical Specifications

Applications

• Rotating Machinery Monitoring: Detect early signs of imbalance, misalignment, or bearing faults.

• Steam and Gas Turbines: Continuous vibration monitoring to prevent catastrophic failures.

• Pressure Vessels and Pipes: Leak detection using acoustic emission technology.

• Industrial Compressors and Pumps: Condition monitoring to optimize operational efficiency.

• Power Generation Facilities: Integration with predictive maintenance systems for enhanced safety.

• Heavy Industrial Equipment: Reliable monitoring in harsh environments, including oil & gas and chemical plants.

FAQ

1. Q: What type of AE sensors can be connected to IS210AEDBH3A?

   A: It supports both resonant and broadband AE sensors with voltage ranges from 8V to 32V.

2. Q: What is the maximum signal frequency it can process?

   A: The interface handles AE signals from 100 kHz up to 1 MHz.

3. Q: Can it output both analog and digital signals simultaneously?

   A: Yes, the device supports concurrent analog and digital outputs.

4. Q: What is the noise performance of the interface?

   A: The SNR is greater than 80 dB, ensuring minimal signal distortion.

5. Q: Is it compatible with Ethernet communication?

   A: Yes, an Ethernet module can be optionally installed for networked monitoring.

6. Q: What power supply options are supported?

   A: Standard 24 V DC ±10%.

7. Q: Can it be mounted on a DIN rail?

   A: Yes, it supports both DIN rail and panel mounting.

8. Q: Does it support continuous monitoring under high-temperature conditions?

   A: Yes, it operates reliably from -20°C to 60°C.

9. Q: Is it compatible with GE Proficy software?

   A: Fully compatible, allowing direct integration for real-time monitoring.

10. Q: Can multiple interfaces be networked together for large machinery setups?

    A: Yes, RS485 and Ethernet interfaces allow multiple units to be connected in a networked configuration.
