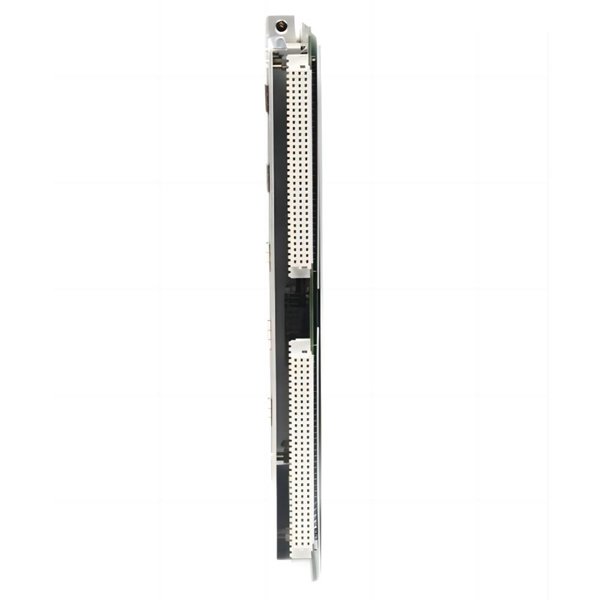

Bently Nevada 3500/61 133924-01 TC Isolated External Termination Block

The Bently Nevada 3500/61 133924-01 TC Isolated External Termination Block is a key component in the 3500 Series machinery protection system. It is designed for use with the 3500/60 and 3500/61 Temperature Monitor Modules, providing isolated connections for thermocouple (TC) inputs to ensure accurate and reliable temperature monitoring in industrial environments.

Technical Specifications

Applications

• Industrial Machinery Monitoring: Monitors critical equipment temperatures in power plants, oil & gas facilities, and manufacturing plants.

• Vibration Monitoring Systems: Integrates with vibration monitoring systems to provide comprehensive machinery health data.

• Process Control Systems: Ensures accurate temperature readings for process optimization and operational safety.

Advantages

• Electrical Isolation: 250 Vdc isolation between channels protects against electrical noise and ground loops.

• Easy Integration: Compatible with Bently Nevada 3500/60 and 3500/61 modules for seamless system integration.

• Robust Design: Built to withstand harsh industrial environments, ensuring long-term reliability.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 3500/61 133924-01 termination block?

   It provides isolated connections for thermocouple inputs to the 3500/60 and 3500/61 modules.

2. How does the isolation benefit the system?

   It protects the monitoring system from electrical noise and ground loops, ensuring accurate readings.

3. Can this termination block be used with other Bently Nevada modules?

   It is specifically designed for use with the 3500/60 and 3500/61 modules.

4. What types of thermocouples are supported?

   Supports various thermocouple types, depending on the configuration of the connected module.

5. Is the termination block suitable for hazardous environments?

   Yes, it is designed for industrial environments; specific certifications should be verified for each application.

6. How is the termination block mounted?

   It is mounted using terminal strip connectors for secure and reliable connections.

7. What is the weight of the termination block?

   The termination block weighs approximately 0.91 kg.

8. Are there different versions of this termination block?

   Yes, similar models include versions with Euro-style connectors.

9. Can the termination block be repaired if damaged?

   It is recommended to replace damaged components to maintain system integrity.

10. Where can I purchase this termination block?

    Contact Us.
