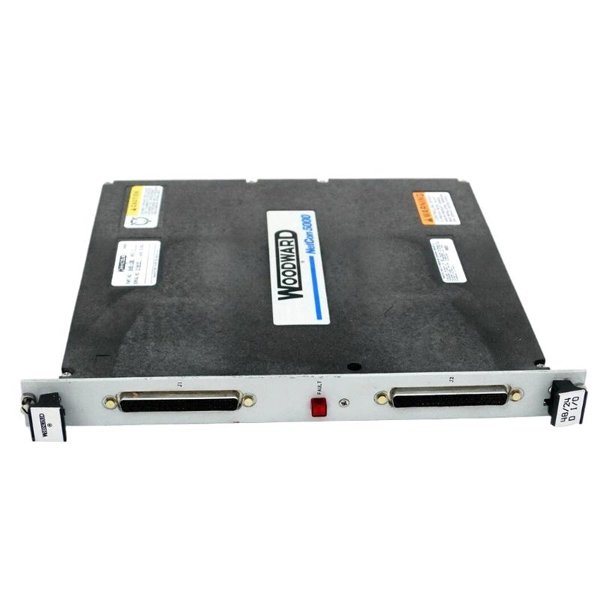

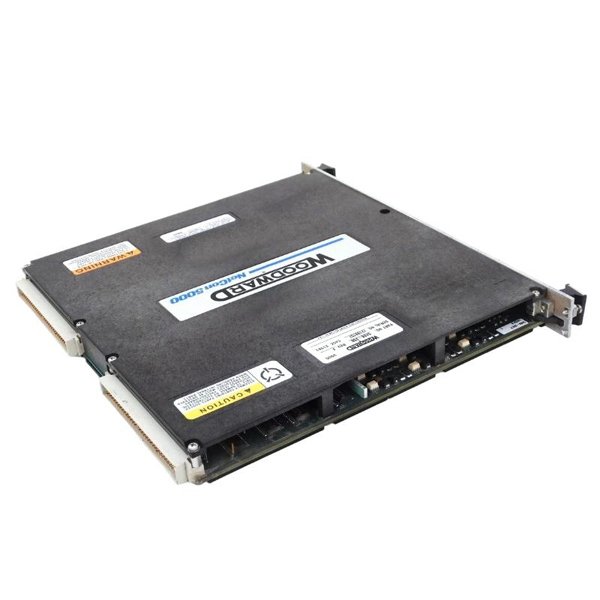

Woodward 5466-258M Discrete I/O Module

The Woodward 5466-258M Discrete I/O Module is a robust input/output interface designed for Woodward’s MicroNet™ control systems. This module provides reliable processing and isolation of discrete signals for mission-critical industrial automation and turbine control applications. It supports both digital inputs and outputs, enabling seamless interaction between field devices and the control system.

Engineered for high-performance and harsh industrial environments, the 5466-258M ensures precise detection and actuation of on/off signals with built-in diagnostics for increased system reliability. Its modular design makes it suitable for scalable control architectures, while its rugged construction allows continuous operation in demanding conditions.

Product Specifications

Product Applications

The Woodward 5466-258M Discrete I/O Module is used in a wide range of industrial and power generation systems where reliable digital signal management is essential:

• Turbine Control Systems: Interfaces with limit switches, solenoids, and trip circuits.

• Compressor Control: Provides discrete signal monitoring and actuation for industrial compressors.

• Power Generation Units: Integrates with generators and auxiliary systems for alarm and protection signals.

• Industrial Automation: Handles on/off signals in distributed control systems.

• Safety Systems: Supports emergency shutdown systems requiring high-reliability digital I/O.

• Retrofit Projects: Ideal for upgrading existing MicroNet™ systems with additional digital I/O capabilities.

Product Advantages

• High Channel Density: Provides 32 total channels (16 inputs + 16 outputs) in a compact module.

• Industrial-Grade Isolation: Ensures signal integrity and protects against electrical noise.

• Fast Response Time: <5 ms update rate suitable for real-time control and protection.

• Built-In Diagnostics: Open/short detection and self-testing enhance system safety and reliability.

• Seamless Integration: Designed for use with Woodward MicroNet™ racks and controllers.

• Durable Design: Rugged construction supports continuous operation in harsh industrial environments.

FAQ

1. How many discrete inputs and outputs does the 5466-258M support?

   The module provides 16 isolated digital inputs and 16 isolated digital outputs.

2. What is the nominal operating voltage for the module?

   Both input and output channels are designed for 24 VDC nominal operation.

3. Does the module offer electrical isolation between channels?

   Yes, it features channel-to-channel and channel-to-ground isolation for noise immunity and safety.

4. What is the typical response time for the I/O channels?

   The update rate is less than 5 ms, making it suitable for real-time control systems.

5. Can the 5466-258M be used with emergency shutdown systems?

   Yes, its fast response and reliable digital handling make it suitable for ESD applications.

6. Is the module compatible with existing MicroNet™ control racks?

   Yes, it integrates seamlessly into standard Woodward MicroNet™ rack configurations.

7. What kind of diagnostics does the 5466-258M provide?

   It includes self-test functions, open and short circuit detection, and channel status LEDs.

8. Can the module be hot-swapped in a running system?

   Hot-swap capability depends on the specific MicroNet™ system configuration and redundancy setup.

9. What type of field devices can the outputs drive?

   The digital outputs can control solenoids, relays, and other 24 VDC-driven devices.

10. What industries typically use the 5466-258M?

    It is widely used in power generation, oil & gas, chemical processing, and other heavy industrial control applications.
