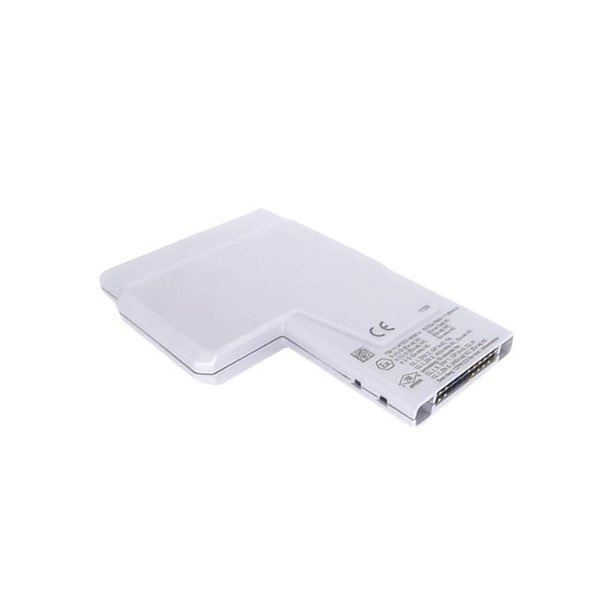

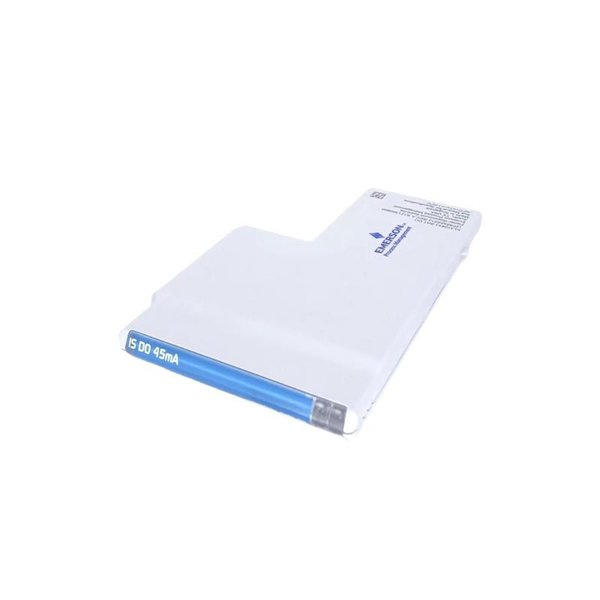

Emerson KL3104X1-BA1 Digital Output CHARM Module

The Emerson KL3104X1-BA1 Digital Output CHARM Module is a vital component designed for use within Emerson’s DeltaV distributed control system (DCS). This module provides reliable and precise digital output control, enabling the DeltaV system to interface with a variety of field devices such as actuators, relays, and solenoids.

The KL3104X1-BA1 features four channels of digital output, each capable of driving discrete control signals to external equipment. Built for industrial environments, this CHARM module integrates seamlessly with the DeltaV system’s LocalBus, ensuring robust communication and control.

Engineered for easy installation and maintenance, the module supports quick replacement and expansion, providing flexibility for process automation engineers. Its compact size and efficient design contribute to optimized control panel layouts and reduced wiring complexity.

Product Specifications

Applications

• Controlling on/off signals to actuators, solenoids, valves, and relays within process control systems.

• Interfacing discrete control commands between the DeltaV system and field devices in oil & gas, chemical, power generation, and manufacturing plants.

• Managing safety interlocks and shutdown functions requiring reliable digital output.

• Facilitating modular expansion of the DeltaV control system’s output capabilities.

• Enabling precise and rapid switching for automated process control.

Product Advantages

• Reliable Performance: Designed to provide consistent and fault-tolerant digital output signals in demanding industrial environments.

• Modular Design: Easy to install, replace, or upgrade within the DeltaV system, minimizing downtime.

• Compact Size: Fits efficiently in control cabinets, helping reduce panel space and simplify wiring.

• Robust Construction: Withstands harsh operating conditions including wide temperature ranges and humidity.

• Seamless Integration: Fully compatible with Emerson DeltaV architecture for smooth and efficient control system operation.

• Simplified Maintenance: Supports hot-swap capability and straightforward diagnostics for faster troubleshooting.

Frequently Asked Questions (FAQ)

1. What kind of outputs does the KL3104X1-BA1 provide?

   It provides four discrete digital output channels for controlling devices like relays and actuators.

2. Is this module compatible with all DeltaV systems?

   Yes, it is designed specifically for use with Emerson DeltaV systems and integrates via the LocalBus.

3. What is the maximum voltage or current supported by the outputs?

   Detailed output ratings are specified in the Emerson DeltaV hardware manual; typically it handles industrial control voltages and currents.

4. Can this module be hot-swapped during operation?

   Yes, it supports hot-swapping, allowing replacement without shutting down the entire system.

5. What environmental conditions can this module operate under?

   It operates reliably within a temperature range of -40°C to +70°C and in up to 95% non-condensing humidity.

6. How does the module communicate with the DeltaV controller?

   Communication occurs via the LocalBus network integrated into the DeltaV rack system.

7. Is any special software required to configure this module?

   Configuration and control are managed through the DeltaV system software.

8. What are the physical dimensions and weight of the module?

   The module measures 7.62 x 76.2 x 114.3 mm and weighs 0.031 kg.

9. Can the KL3104X1-BA1 be used for safety-critical applications?

   It is suitable for control applications, but safety systems should be designed according to applicable safety standards and may require certified safety components.

10. What maintenance procedures are recommended for this module?

    Regular visual inspection and functional testing during scheduled maintenance; follow Emerson’s service guidelines for detailed instructions.
