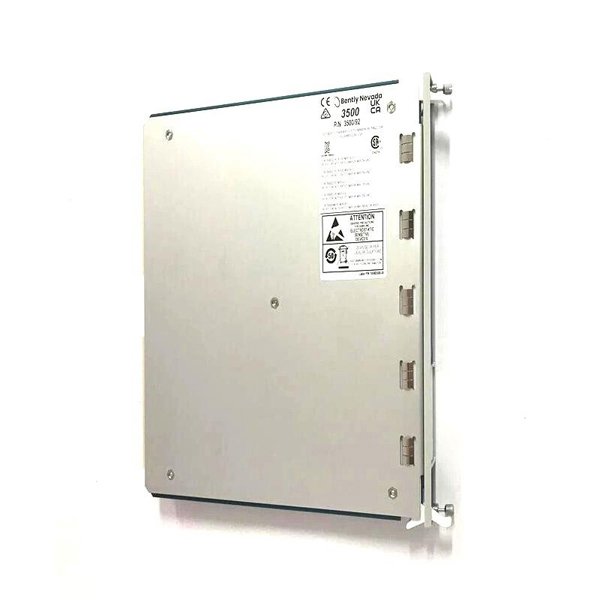

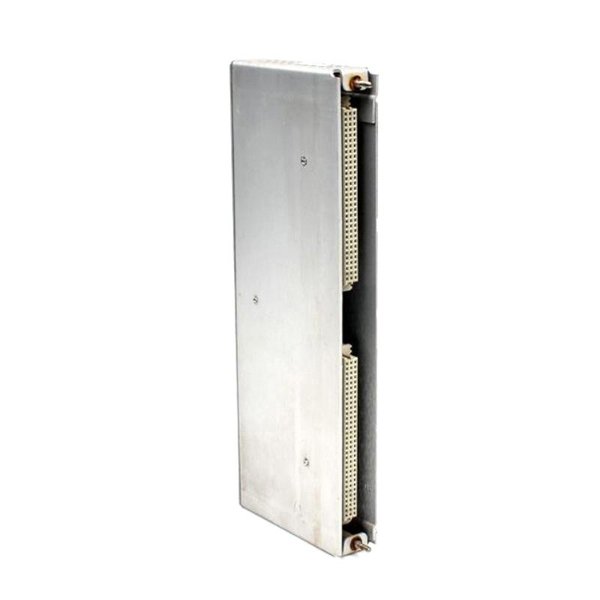

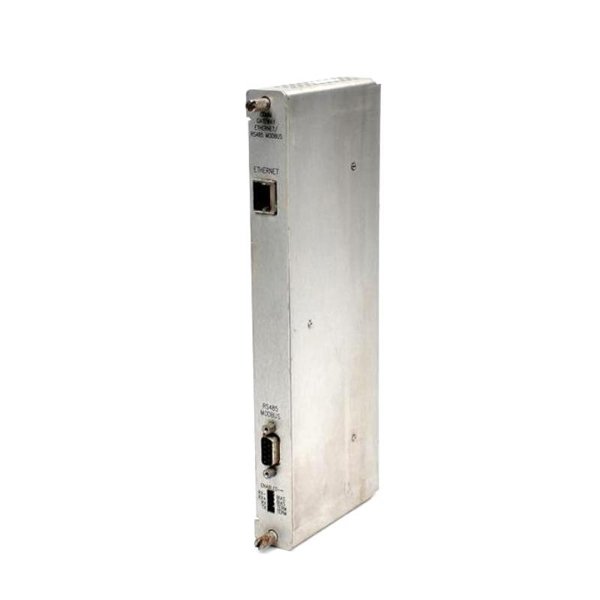

Bently Nevada 3500/92 136180-01+136188-02 Communication Gateway Module

The Bently Nevada 3500/92 Communication Gateway Module enables seamless integration between 3500 series monitoring systems and external plant control networks. It provides high-speed data transfer, reliable diagnostics, and enhanced monitoring capabilities, supporting critical machinery protection and operational efficiency.

Product Specifications

Applications

• Integration of 3500 series machinery monitoring data with plant SCADA/DCS systems

• Remote diagnostics and data logging for critical rotating equipment

• Support for vibration and condition monitoring in turbines, compressors, and pumps

• Facilitation of predictive maintenance strategies and alarm management

• Industrial automation systems requiring high-reliability data gateways

Advantages

• Reliable communication across multiple protocols

• Compact and lightweight design for easy installation

• Enhances plant-wide monitoring and data acquisition

• Reduces system downtime through efficient diagnostics

• Robust design for harsh industrial environments

• Compatible with existing Bently Nevada 3500 system components

FAQ

1. What is the primary function of the 3500/92 Communication Gateway Module?

It serves as a communication bridge between Bently Nevada 3500 monitoring systems and plant control networks.

2. Which communication protocols are supported?

Modbus, Ethernet/IP, and OPC are supported for seamless integration.

3. Can it operate in extreme temperatures?

Yes, it operates between -40°C and 70°C and can be stored up to 85°C.

4. How is the module powered?

It requires a 24 V DC power supply.

5. What is the installation method?

The module can be mounted on a DIN rail or directly on a panel.

6. Does it support remote diagnostics?

Yes, it enables remote access to system status and diagnostic data.

7. Is it compatible with older 3500 system modules?

Yes, it is compatible with legacy 3500 series components.

8. What are the dimensions and weight?

The module measures 241 x 24.4 x 242 mm and weighs 0.82 kg.

9. Does it include status indicators?

Yes, it has LEDs indicating power, communication, and fault status.

10. What industrial applications is it suitable for?

It is ideal for turbines, compressors, pumps, and other critical rotating machinery monitoring.
