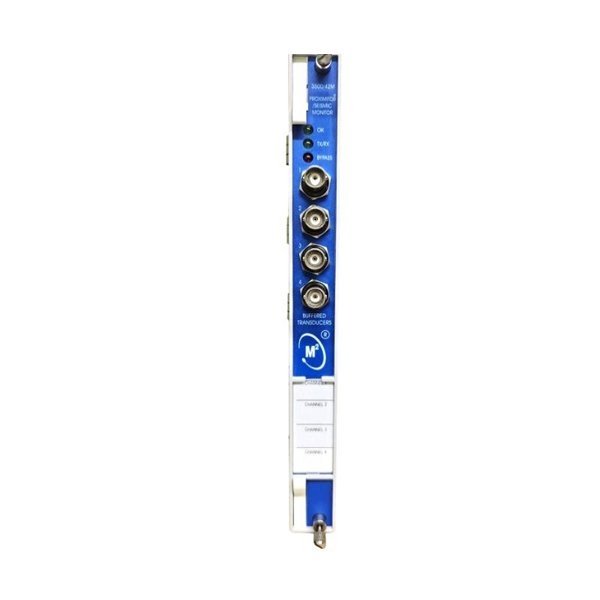

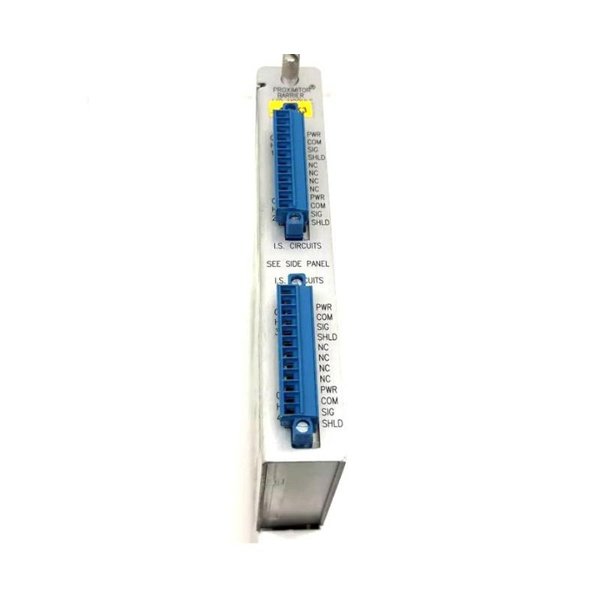

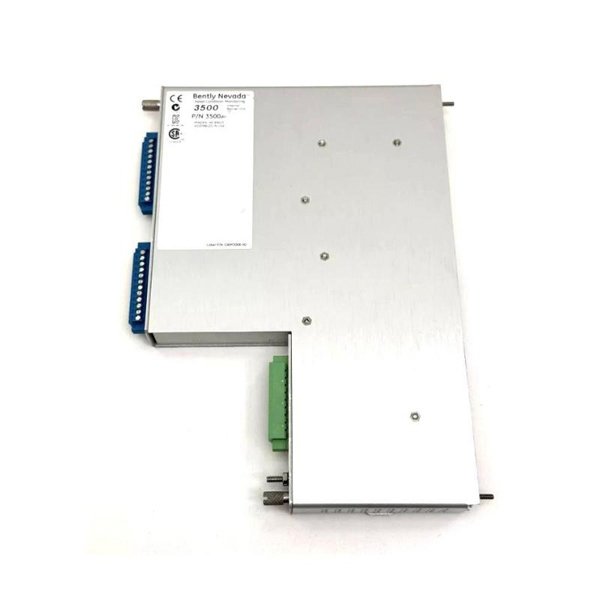

Bently Nevada 3500/42M 176449-02+135489-01 Proximitor Seismic
Manufacturer:Bently Nevada
Product Number:3500/42M 176449-02+135489-01
Product Type:Proximitor Seismic Monitor
Origin:USA
Dimensions:241.3 x 24.4 x 241.8 mm
Weight:0.91 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/42M Proximitor Seismic Monitor is a 4-channel monitoring module designed for high-performance machinery protection and condition monitoring. Compatible with both proximity and seismic sensors, it provides real-time measurements of vibration, position, acceleration, and shaft behavior.
Applications
-
Critical rotating equipment (turbines, compressors, motors)
-
Predictive maintenance systems
-
High-speed machinery requiring real-time vibration diagnostics
-
Industrial process environments (oil & gas, power generation, petrochemical)
Key Advantages
-
Simultaneous processing of proximity and seismic signals
-
User-configurable channel pairing with dual-function monitoring
-
High accuracy across a broad frequency range (3 Hz to 30 kHz)
-
Built-in alarming and recorder outputs for control system integration
-
Certified for use in hazardous areas (Class I, Div 2 / ATEX Zone 2)
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | 3500/42M Proximitor Seismic Monitor |
| Input Channels | 4 channels (proximity/seismic) |
| Signal Inputs | Proximitor, Velomitor, Acceleration, Seismoprobe |
| Input Impedance | 10 kΩ (Proximitor and acceleration) |
| Output Signal (Recorder) | 4–20 mA, update ≤100 ms |
| Buffered Output | Coaxial, short-circuit protected |
| Frequency Response Range | 3 Hz to 30,000 Hz (depending on signal type) |
| Alarm Configuration | 0–100% full scale; alert & danger setpoints per channel |
| Alarm Accuracy | ±0.13% of desired value |
| Power Consumption | 7.7 W typical |
| Operating Temperature | -30°C to +65°C (w/o barriers), 0°C to +65°C (with barriers) |
| Humidity | 95% non-condensing |
| Compliance | FCC, CE (EN 61000-6-x, EN 61010-1), RoHS, ABS, DNV |
| Hazardous Area Approvals | ATEX, IECEx, CSA, cNRTLus |
| Module Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Module Weight | 0.91 kg |
Frequently Asked Questions (FAQ)
Q1: What transducer types are supported by the 3500/42M?
A1: The monitor supports proximity probes, Velomitor velocity sensors, and accelerometers.
Q2: Can the 3500/42M handle mixed signal types on different channels?
A2: Yes, channels can be independently configured to support different functions and signal types.
Q3: How are alarms managed on the 3500/42M?
A3: Each channel supports configurable alert and danger setpoints with adjustable delays for each.
Q4: Is the 3500/42M certified for hazardous locations?
A4: Yes, it holds cNRTLus, ATEX, and IECEx certifications for use in Zone 2 / Div 2 environments.
Q5: What is the update rate for analog outputs?
A5: The 4–20 mA recorder outputs update at approximately 100 ms or less.
Q6: How accurate are the vibration measurements?
A6: Measurement accuracy is typically within ±0.33% of full scale, with a maximum of ±1%.
Q7: What is the power requirement of the unit?
A7: The monitor typically consumes 7.7 watts.
Q8: Can this monitor detect shaft eccentricity and thrust position?
A8: Yes, both parameters are supported via specific sensor configurations.
Q9: Is the unit capable of detecting REBAM (Rolling Element Bearing Analysis Method)?
A9: Yes, REBAM measurements including spike, rotor, and element frequencies are supported.
Q10: Can the 3500/42M operate in marine applications?
A10: Yes, it complies with ABS and DNV maritime standards.
