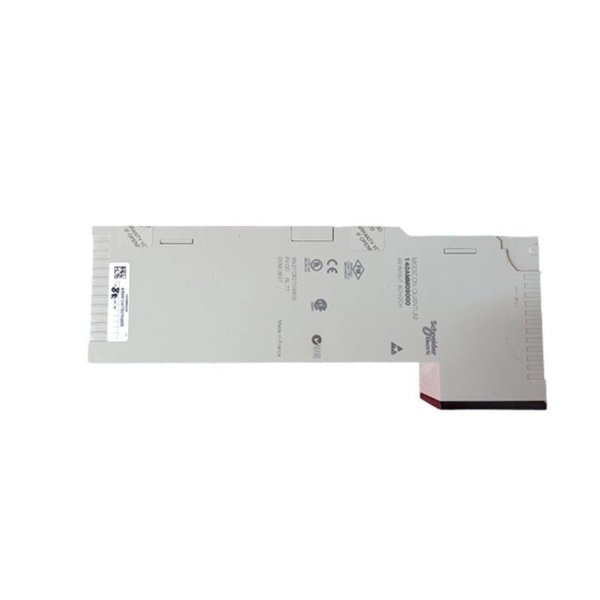

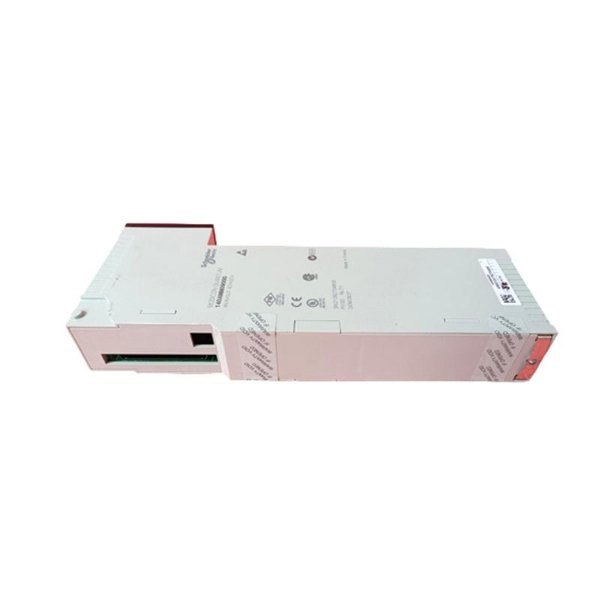

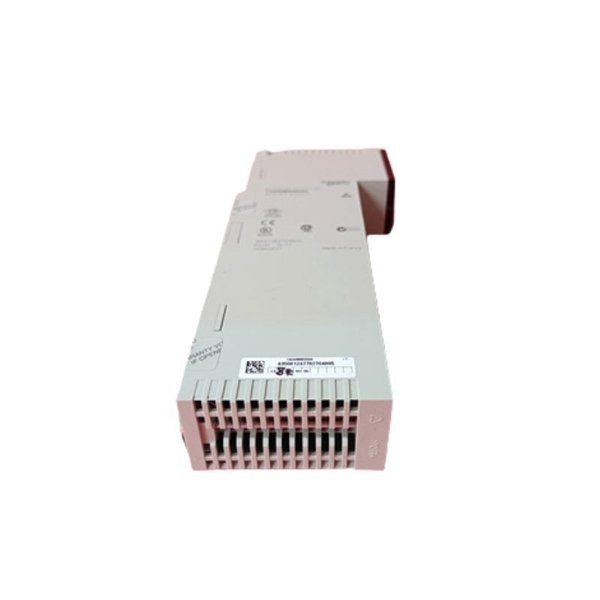

Schneider 140AMM09000C Analog Input/Output Module

The Schneider Electric 140AMM09000C is a high-performance analog input/output module from the Modicon Quantum series, designed for demanding industrial automation environments. This module combines both input and output analog channels, making it ideal for space-constrained applications where versatility and high accuracy are required. Designed to interface directly with analog field devices, such as sensors, transmitters, actuators, and control valves, the 140AMM09000C ensures seamless data acquisition and control output with a high degree of precision and reliability.

This module supports a wide range of signal types and configurations, offering engineers the flexibility to adapt to complex process control requirements. It is frequently used in industries such as oil and gas, water treatment, chemical manufacturing, and energy management systems.

Product Specifications

Product Applications

• Industrial Process Control: Accurate analog signal processing for PID loops, temperature regulation, and pressure control.

• Water and Wastewater Management: For interfacing flow meters, level transmitters, and pH sensors.

• Energy Management Systems: Monitoring and controlling current, voltage, and power levels in distributed assets.

• Oil and Gas Sector: Real-time analog input/output for remote well sites and compressor stations.

• Manufacturing Automation: Integrating temperature sensors and control signals for heating, cooling, and motion control.

• Chemical and Pharmaceutical Plants: High-precision control of dosing and batch processing systems.

Product Advantages

• Mixed I/O Configuration: Integrates both analog input and output in a single module, reducing the need for multiple cards.

• High Signal Accuracy: 16-bit resolution ensures precise signal acquisition and output.

• Flexible Signal Support: Accepts both voltage and current signals, allowing broad compatibility with field devices.

• Robust Electrical Isolation: Enhances safety and minimizes signal interference across channels.

• Easy Configuration: User-friendly interface via Unity Pro or Concept software platforms.

• Time-Saving Maintenance: Features removable terminals and hot-swap capability on compatible Quantum racks.

• Global Certifications: Fully certified for use in a wide range of industrial and marine environments.

• Long Lifecycle Support: Backed by Schneider’s commitment to long-term availability and support.

Frequently Asked Questions (FAQ)

1. What does the 140AMM09000C module do?

   It handles both analog input and output signals, making it ideal for process control and instrumentation.

2. Can I configure each channel independently for voltage or current?

   Yes, both input and output channels are configurable per channel via software settings.

3. Is the module hot-swappable?

   Yes, when used in a properly configured Quantum rack system.

4. Does it support 4-20mA analog sensors?

   Yes, it supports standard 4-20mA and 0-20mA current input/output.

5. What software is used to configure this module?

   You can use Schneider Electric’s Unity Pro or EcoStruxure Control Expert.

6. Is calibration required after installation?

   Factory calibration is provided; however, periodic calibration is recommended in precision-critical applications.

7. Can it be used in hazardous environments?

   It meets ATEX and marine certifications, making it suitable for classified zones with proper installation.

8. What type of backplane is needed for installation?

   It is designed to be mounted in a Schneider Quantum series backplane.

9. Is this module backward compatible with older Quantum systems?

   Yes, it supports backward compatibility with most Quantum racks and CPUs.

10. What is the lifespan of this module?

    Typically exceeds 10 years under normal operating conditions, with appropriate environmental controls.
