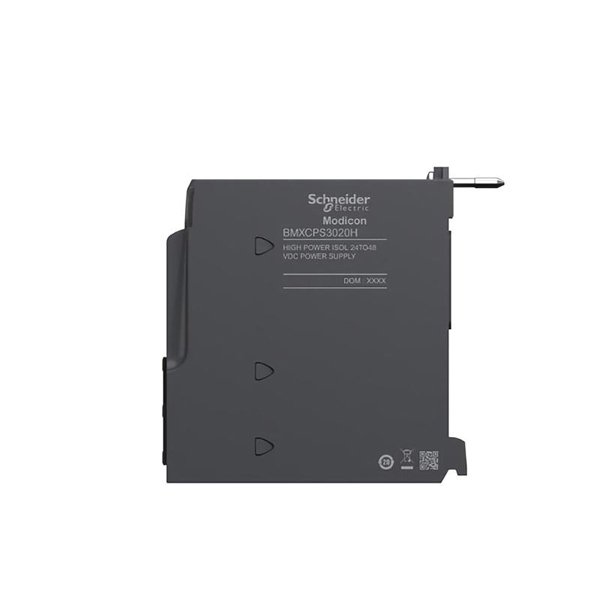

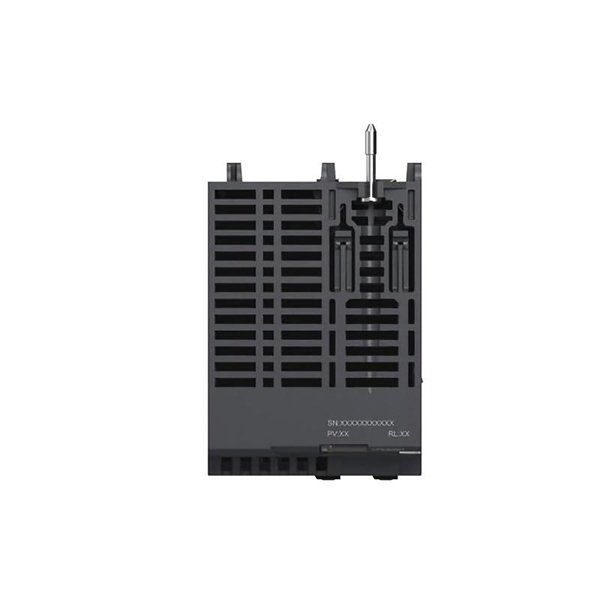

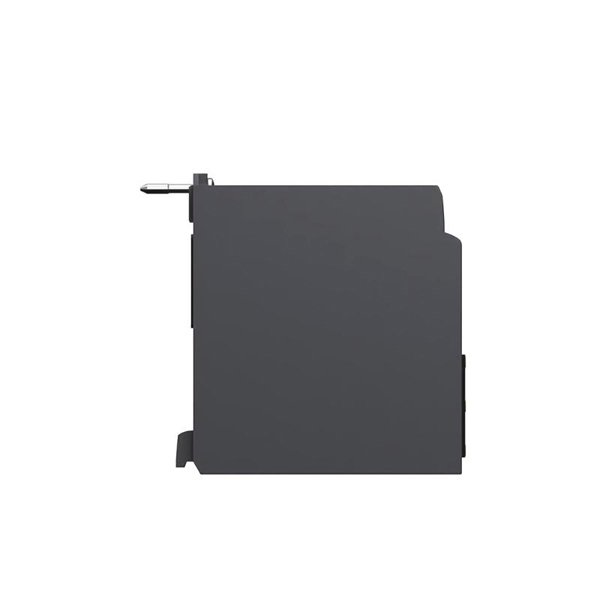

Schneider BMXCPS3020H Power Supply Module

The Schneider Electric BMXCPS3020H is a high-performance power supply module designed specifically for the Modicon M340 Programmable Automation Controller (PAC) platform. As an industrial-grade component, the BMXCPS3020H plays a critical role in delivering stable and reliable DC power to automation systems, ensuring seamless operation in demanding control environments. This module features a redundant-capable 24 VDC power input, making it ideal for critical control applications where uptime and reliability are non-negotiable. It is widely used in sectors like manufacturing, utilities, transportation, and process industries where electrical robustness, operational safety, and system integrity are paramount.

With built-in overvoltage and overload protections, compact dimensions, and easy DIN rail mounting, the BMXCPS3020H is engineered for simplicity and resilience. Its hot-swap functionality and high MTBF (Mean Time Between Failures) rating underscore its suitability for mission-critical operations where downtime is costly and unacceptable.

Technical Specifications

Applications

The BMXCPS3020H is tailored for applications that demand high reliability, consistent power delivery, and minimal maintenance. Key application areas include:

• Industrial Automation Systems: Ensures reliable power supply for Modicon M340 controllers in factory automation settings.

• Process Control: Widely used in oil & gas, chemical, water treatment, and food & beverage industries.

• Infrastructure & Utilities: Provides stable power to automation units in power plants, water distribution systems, and transportation control.

• Building Automation: Powers controllers for HVAC systems, lighting control, and security infrastructure.

• Material Handling Systems: Supports conveyor systems and automated storage systems by powering PLCs and I/O modules.

• Redundant Power Setups: Often deployed in redundant mode to ensure continuity during primary source failure.

Product Advantages

• High Reliability: Built for 24/7 industrial operation with robust protection mechanisms.

• Compact Design: Slim profile enables installation in confined control cabinets.

• Hot-Swap Capability: Can be replaced without shutting down the entire control system.

• Redundant Operation Support: Designed to work in redundant power supply configurations.

• Quick Diagnostics: LED indicators allow instant status checks for power availability and faults.

• Universal Standards Compliance: Certified for use globally with CE, UL, CSA, and RoHS approvals.

• Low Maintenance: Minimal need for periodic servicing or calibration.

• Durable Construction: Withstands industrial shocks and vibrations with ease.

• Eco-Design: Conforms to Schneider’s Green Premium label for environmental responsibility.

• Seamless Integration: Plug-and-play with Modicon M340 architecture, simplifying system design.

FAQ

1. Q: What type of power input does the BMXCPS3020H support?

   A: It supports a 24 VDC input with a tolerance of ±20%, suitable for industrial DC power systems.

2. Q: Can this module be used in a redundant configuration?

   A: Yes, the BMXCPS3020H is designed for redundant operation, allowing you to connect multiple units for backup.

3. Q: Is the module hot-swappable?

   A: Yes, the BMXCPS3020H supports hot swapping, which allows replacement without interrupting system power.

4. Q: What is the typical output current of this power supply?

   A: It provides a nominal output current of 2.9 A.

5. Q: What are the environmental limits for storage and operation?

   A: Operating temperature is 0°C to 60°C, and storage temperature is -40°C to 85°C.

6. Q: Is there protection against overload or short circuit?

   A: Yes, it features integrated protection against overloads, short circuits, and overvoltage conditions.

7. Q: Does this power module include any diagnostic features?

   A: It includes front-facing LED indicators for quick fault and status diagnostics.

8. Q: Can it be used with any other controller besides Modicon M340?

   A: It is optimized for the Modicon M340 PAC, though may be adaptable to similar Schneider platforms under guidance.

9. Q: What is the estimated life expectancy or MTBF?

   A: The MTBF is greater than 1 million hours, indicating exceptional reliability.

10. Q: How do I mount this module in a control cabinet?

    A: The module is DIN rail mountable, supporting quick installation and secure mechanical attachment.
