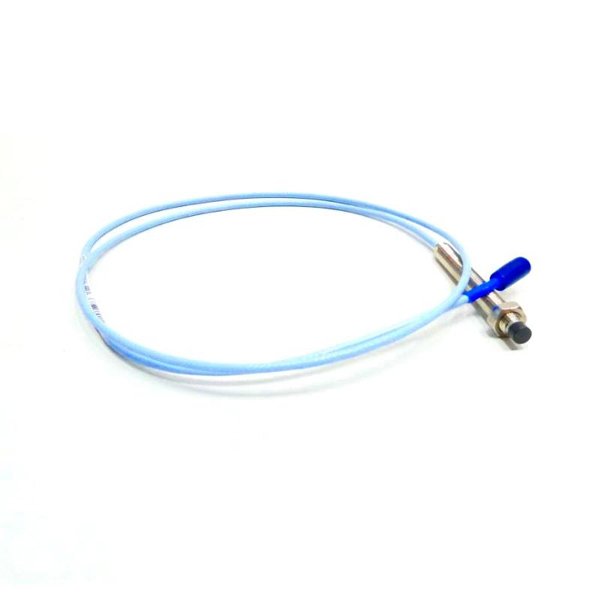

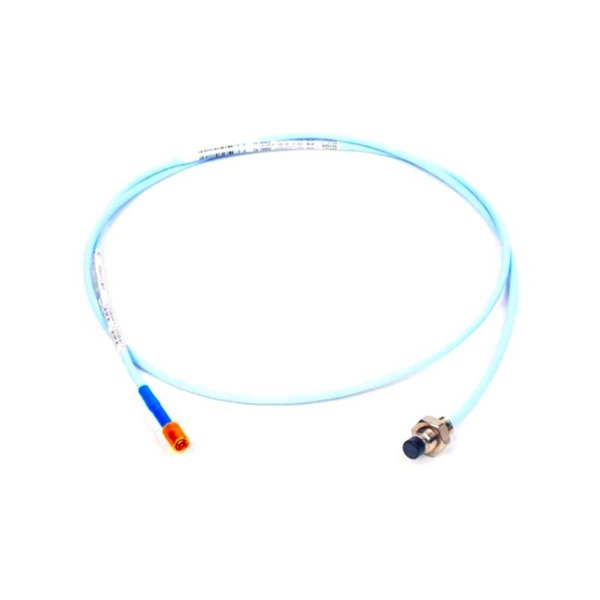

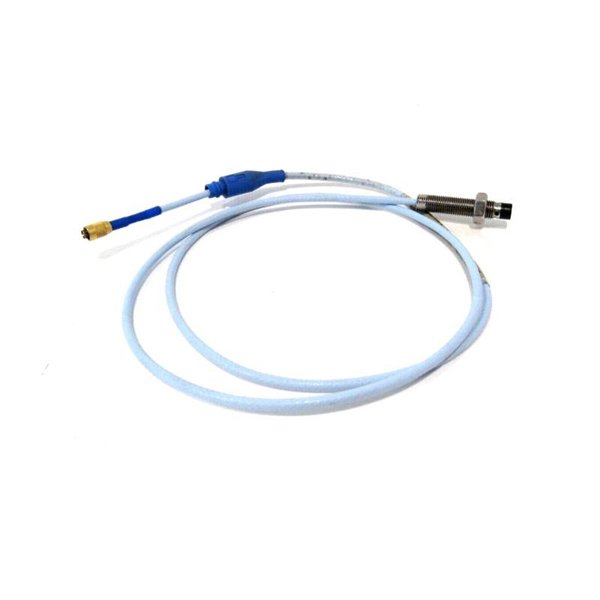

Bently Nevada 330101-00-75-15-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-75-15-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.5 meters
Weight:0.485 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The 330101-00-75-15-02-05 is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It includes a non-contacting proximity probe designed to measure both static (position) and dynamic (vibration) parameters. This model is often used in fluid-film bearing machinery, providing reliable data for monitoring shaft displacement and vibration.
Key Applications
-
Radial vibration monitoring in rotating machinery
-
Axial (thrust) position measurements
-
Shaft speed and phase referencing (Keyphasor)
-
Overspeed protection (when appropriately configured)
Advantages
-
Fully API 670 Compliant – Meets mechanical and performance standards
-
Interchangeability – Mix-and-match probes, cables, and sensors
-
High RFI/EMI Immunity – CE-compliant without special shielding
-
Robust Design – Patented TipLoc and CableLoc for mechanical reliability
-
Wide Temperature Range – Standard probe: up to 177°C; ETR variant: up to 218°C
-
Easy Installation – SpringLoc terminal strips and ClickLoc connectors
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | 3300 XL 8 mm Proximity Probe |
| Part Number | 330101-00-75-15-02-05 |
| Tip Diameter | 8.0 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.5 meters |
| Weight | 0.485 kg |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 200 mV/mil ±5% (5 m system) |
| Frequency Response | 0–10 kHz |
| Operating Temp. (Probe) | -52°C to +177°C |
| Operating Temp. (Sensor) | -52°C to +100°C |
| Pressure Seal | Viton® O-ring (user to test for pressure suitability) |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330101-00-75-15-02-05 probe?
A1: It measures shaft vibration and position in critical rotating machinery.
Q2: Is it compliant with API 670?
A2: Yes, the 3300 XL 8 mm system is fully compliant with API 670.
Q3: What material is the probe casing made from?
A3: The probe housing is constructed from AISI 303/304 stainless steel.
Q4: Can this model be used in high-temperature areas?
A4: Yes. It can operate up to 177°C; an extended temperature version reaches 218°C.
Q5: Is the probe tip ruggedized?
A5: Yes. It uses the patented TipLoc process for enhanced durability.
Q6: Can I mix this with older 3300 series components?
A6: Yes. It’s backward compatible with 3300 5 mm and 8 mm components.
Q7: Does it require special tools for wiring?
A7: No. SpringLoc terminals and ClickLoc connectors simplify installation.
Q8: How long is the extension cable for this model?
A8: This specific model is 1.5 meters in total length and may not include an extension cable.
Q9: What’s the maximum cable length to the monitor?
A9: Up to 305 meters (1000 feet) of field wiring is supported.
Q10: Are connector protectors required?
A10: Recommended for all installations to ensure environmental protection.
