Vibro-Meter CPUM 200-595-075-122 Central Processing Unit Card
Item Number: CPUM 200-595-075-122
Brand:Vibro-Meter
Lead Time: In stock
Description: Central Processing Unit Card
Payment: T/T
Product Description

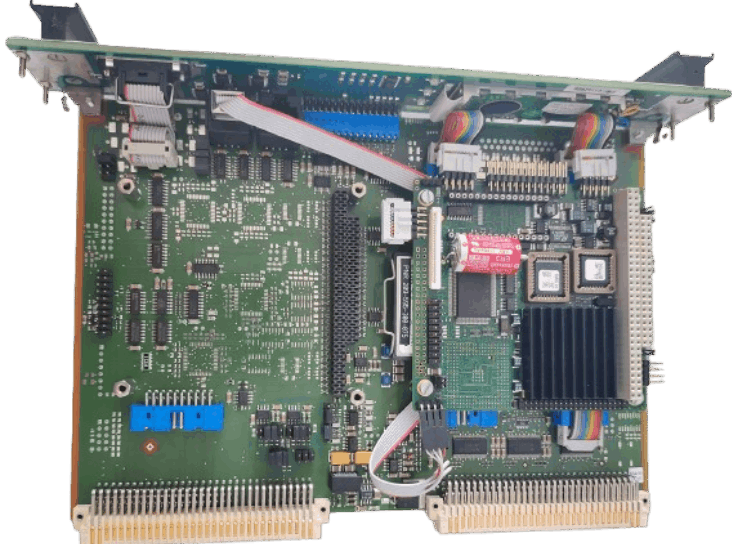

The CPUM 200-595-075-122 is a Central Processing Unit Card used in machinery protection system (MPS) and condition monitoring system (CMS) racks. Depending on system requirements, this card can be installed standalone in the rack's front card cage or used in conjunction with a corresponding IOC N input/output card (installed in slot 0 of the rear card cage, directly behind the CPUM).
Function & Features
- The CPUM 200-595-075-122 consists of a base carrier card with two PC/104-type slots, each of which can accommodate one of a series of PC/104 modules.
- The IOCN network communication card that comes with the CPUM 200-595-075-122 includes two pairs of RJ11 connectors (labeled A and B) for configuring a rack's multi-drop RS-485 network, and an RJ45 connector for redundant Ethernet connections.
- The front panel of the CPUM 200-595-075-122 features an LCD display that displays the level of the selected monitored output in both bar graph and numeric form. The bar graph indicates Alert and Danger levels, and the top of the display shows the signal identifier (slot and output number).
Specifications
|
Parameter |
Details |
|
Model |
CPUM 200-595-075-122 |
|
Supply voltage |
5 V₍₍DC₎₎ ± 5% |
|
RS 485 isolation |
500 V₍₍DC₎₎ |
|
Power consumption |
< 10 W |
|
Type |
MSM586SEN or equivalent |
|
Processor speed |
133 MHz |
|
Memory |
128MB DRAM |
|
Communication ports |
- RS232/RS422/RS485: ≤ 115.2 kBaud - Ethernet: Network interface: 10 Base - T; Data transfer rate: 10 Mbits/s |
|
Height |
6U (262 mm) |
|
Width |
40 mm |
|
Depth |
187 mm |
|
Weight |
0.4 kg |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A: Central Processing Unit Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
