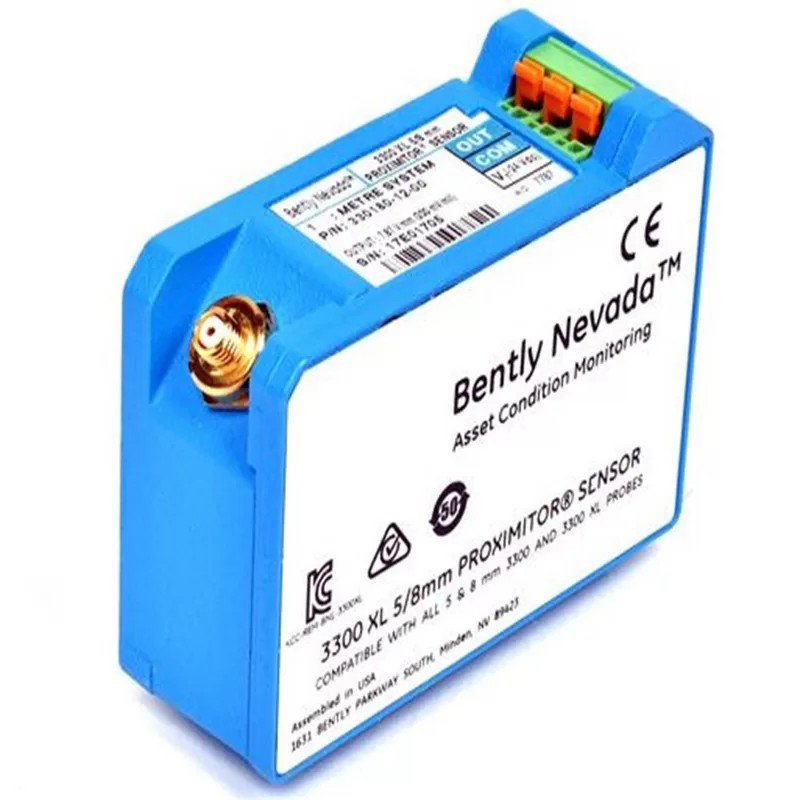

The Bently Nevada 3300/53-03-02-00-30-20-00-00-00 is a proximity transducer designed for measuring the vibration of machinery. As a non-contacting device, it utilizes eddy current technology to measure the displacement of a target. It belongs to the Bently Nevada 3300 product line, which is a family of vibration monitoring systems.

Technical Specifications

• Type: Proximity transducer
• Range: 0 to 0.2 inches (0 to 5 mm)
• Resolution: 0.0002 inches (5 microns)
• Nonlinearity: Less than 2%
• Output: 4 to 20 mA
• Power Supply: 24 VDC
• Operating Temperature: -40 to 180°F (-40 to 82°C)
• Ingress Protection: IP67
• Hazardous Area Rating: Class I, Division 2

Monitoring Capabilities

This transducer can be employed to monitor a range of vibration problems, such as:

• Unbalance
• Misalignment
• Bearing wear
• Looseness
• Cavitation

Features

• Hermetically Sealed: Ensures reliability and durability in harsh environments.
• Single-Axis Measurement: Provides accurate vibration measurement for specific axis.
• Class I, Division 2 Hazardous Areas: Suitable for use in hazardous locations.
