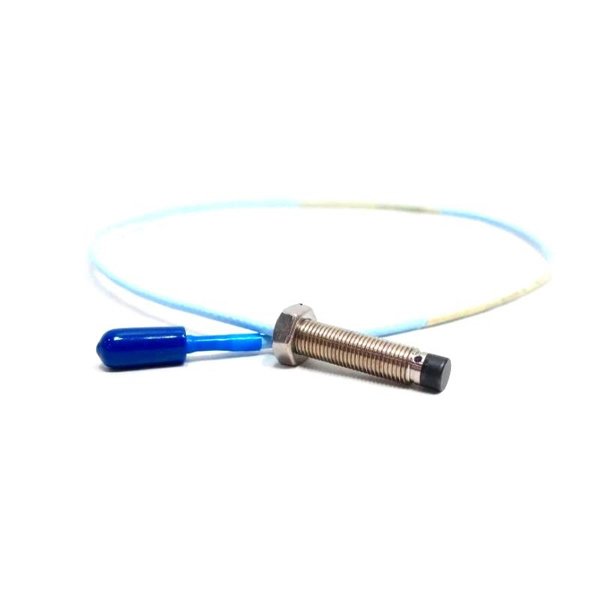

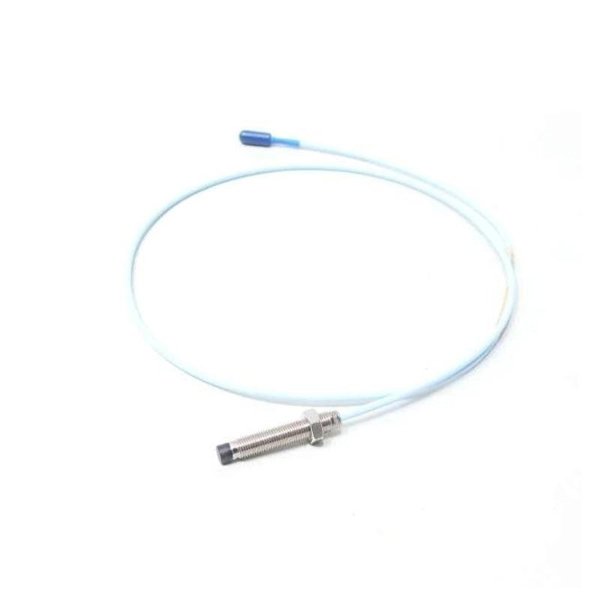

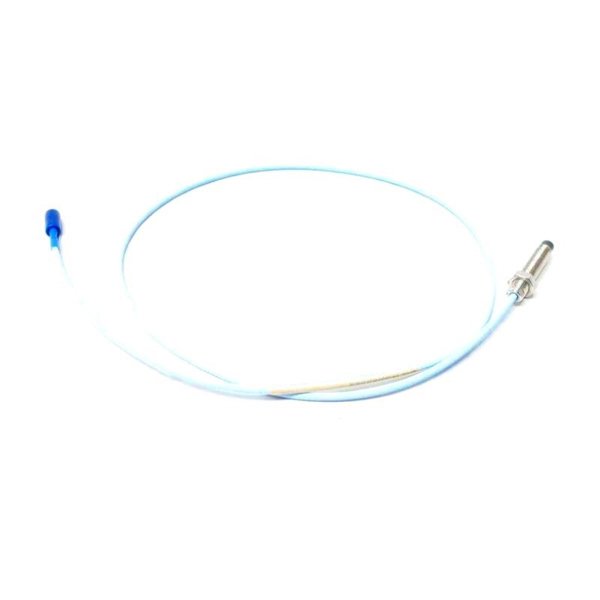

Bently Nevada 330101-00-52-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-52-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-52-10-02-05 is a high-performance 8 mm proximity probe that is part of the 3300 XL system. It provides reliable, non-contact vibration and position monitoring for critical rotating machinery. The system includes the probe, extension cable, and a matching Proximitor Sensor. It supports both static and dynamic measurements and fully complies with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Part Number | 330101-00-52-10-02-05 |
| Sensing Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Output Voltage Range | -1 V to -17 V DC |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Cable Type | 75Ω triaxial FEP insulated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303/304 |
| Connector Type | ClickLoc Miniature Coaxial |
| Temperature Range | -52°C to +177°C |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Pressure Rating | Viton® O-ring sealed |
| Mounting Thread | 3/8-24 UNF |
| Compliance | API 670, CE, FCC, RoHS, SIL 2/3 |
Applications
-
Vibration monitoring of fluid-film bearing machines
-
Shaft position and displacement measurements
-
Overspeed and Keyphasor reference signal measurements
-
Steam, gas, and hydro turbine condition monitoring
-
Compressors and motors in process industries
Advantages
-
Full API 670 compliance
-
Advanced EMI/RFI immunity
-
ClickLoc connectors ensure secure, tool-free connection
-
Interchangeable with other 3300 XL 8 mm and 5 mm components
-
Patented TipLoc and CableLoc designs for enhanced durability
-
Wide temperature range and optional extended temperature versions
-
No individual component matching or bench calibration required
Frequently Asked Questions (FAQ)
Q1: What is the sensing range of the 330101-00-52-10-02-05?
A1: The linear sensing range is from 0.25 mm to 2.3 mm (10 to 90 mils).
Q2: Does the probe comply with API 670?
A2: Yes, the 3300 XL 8 mm system is fully compliant with API 670.
Q3: Can it operate in high-temperature environments?
A3: Yes, it operates up to +177°C. For higher temperatures, use the ETR version.
Q4: What is the recommended shaft size?
A4: Minimum shaft diameter is 50.8 mm, recommended is 76.2 mm.
Q5: Is the system backward compatible with older 3300 series?
A5: Yes, it is fully compatible with both 5 mm and 8 mm non-XL components.
Q6: What type of connector does it use?
A6: It uses a gold-plated ClickLoc miniature coaxial connector.
Q7: Can I use it in hazardous areas?
A7: Yes, it has CSA, ATEX, and IECEx approvals for hazardous locations.
Q8: What is the probe’s output sensitivity?
A8: The sensitivity is 7.87 V/mm (200 mV/mil) ±5%.
Q9: How is the probe installed?
A9: It is typically mounted via threaded holes using its 3/8-24 UNF mounting thread.
Q10: Is it suitable for dynamic vibration monitoring?
A10: Yes, it’s optimized for both static and dynamic vibration measurements.
