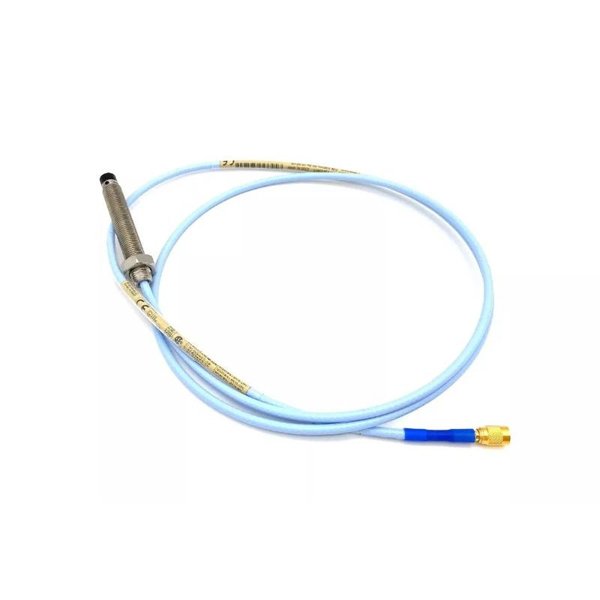

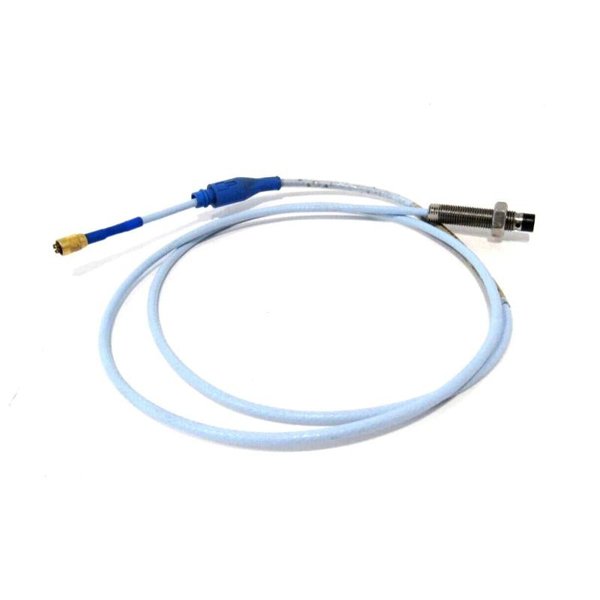

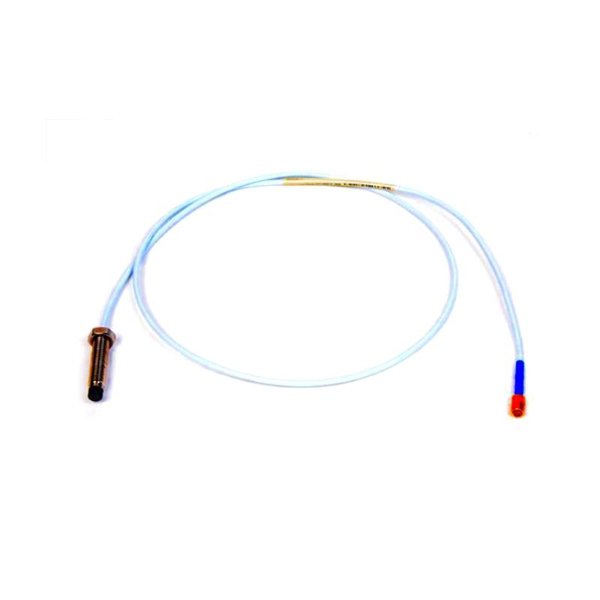

Bently Nevada 330101-00-30-10-11-R0 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-30-10-11-R0 is an 8mm Proximity Probe designed for the 3300 XL Proximity Transducer System. It delivers high-precision measurements of vibration and position on fluid-film bearing machinery, with applications including rotor monitoring, Keyphasor® signal generation, and speed measurement. Its modular design allows interchangeability with other 3300 XL system components, reducing maintenance complexity and ensuring consistent performance.

Specifications

Applications

• Rotor vibration monitoring in turbines and compressors

• Bearing displacement measurement in high-speed machinery

• Keyphasor® signal generation for speed synchronization

• Process monitoring in oil & gas, power generation, and industrial machinery

• Condition monitoring and predictive maintenance programs

Advantages

• Fully interchangeable with all 3300 XL components

• Compliant with API 670 Standard ensuring accuracy and reliability

• Easy installation and removal with finger-tight ClickLoc™ connector

• Optional FluidLoc® cable prevents oil or fluid leakage

• Robust and corrosion-resistant construction for harsh environments

• High repeatability and stable long-term performance

FAQ

1. What is the measurement range of the probe?

The probe provides a linear displacement measurement range as defined by API 670 Standard for 8 mm probes.

2. Is the probe compatible with older 3300 XL systems?

Yes, the 330101-00-30-10-11-R0 is fully compatible with all 3300 XL Proximitor Sensors and extension cables.

3. What environments can the probe operate in?

It is suitable for industrial environments, including high humidity, oil-rich atmospheres, and moderate temperature variations.

4. Does the probe require calibration?

No individual probe calibration is required; system-level calibration ensures accurate measurement.

5. Can the probe detect Keyphasor® signals?

Yes, it can be used to generate Keyphasor® pulses for speed monitoring and phase reference.

6. What is the connector type and how is it installed?

The probe uses a gold-plated ClickLoc™ connector, installed with finger-tight torque without special tools.

7. Can it be used in oil-lubricated machines?

Yes, and an optional FluidLoc® cable can prevent oil leakage through the probe.

8. What is the expected lifespan of the probe?

The probe is designed for long-term industrial use with robust materials and stable performance over time.

9. How is the probe affected by temperature fluctuations?

It is designed to maintain linearity and stability across the temperature range defined by API 670.

10. Is it suitable for both speed and vibration monitoring?

Yes, it is suitable for simultaneous vibration, displacement, and speed measurement applications.
