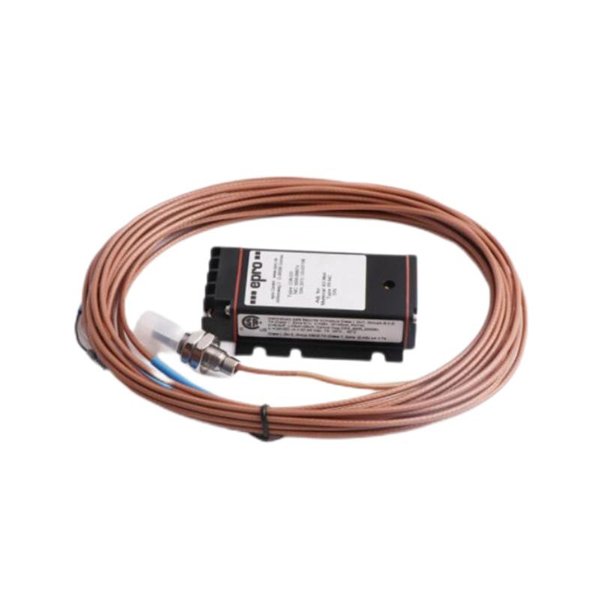

Epro PR6424/118-000 16 mm Eddy Current Sensor

The Epro PR6424/118-000 16 mm Eddy Current Sensor is an advanced, non-contact sensor designed for high-precision displacement, position, and vibration measurement applications. This sensor uses eddy current technology, which allows for high-speed, accurate, and reliable measurements without the need for direct contact with the measured object. The PR6424/118-000 is particularly suitable for use in demanding industrial environments where traditional contact-based sensors are not ideal due to wear or mechanical strain.

With its compact 16 mm sensor head, the PR6424/118-000 can be used in tight spaces where precision is critical. It is widely used in machine condition monitoring, process control, vibration analysis, and positioning systems. The sensor delivers reliable and repeatable data, even in harsh environments characterized by high vibrations, extreme temperatures, and electromagnetic interference.

Designed to provide exceptional performance, this sensor offers high accuracy, fast response times, and a wide operational range. The PR6424/118-000 is built for long-term use, minimizing maintenance requirements and offering robust protection against external elements.

Technical Specifications

Below is the table summarizing the technical specifications for the Epro PR6424/118-000 16 mm Eddy Current Sensor:

Product Applications

The Epro PR6424/118-000 16 mm Eddy Current Sensor is commonly used across various industries that require high-precision, non-contact measurement. Some typical applications include:

• Machine Condition Monitoring: It is ideal for monitoring the displacement, position, and vibration of rotating equipment such as motors, pumps, and turbines to ensure smooth operation and prevent mechanical failure.

• Process Control: The sensor provides precise measurements for automated systems in manufacturing processes, helping to ensure the quality and efficiency of operations.

• Vibration Analysis: Frequently used in machinery to detect early signs of vibration, misalignment, or imbalance, preventing costly damage to equipment.

• Position and Displacement Measurement: Ideal for applications in robotics, automation, and conveyor systems where precise positioning is essential.

• Turbine and Engine Monitoring: The sensor ensures the accurate measurement of components in turbines and engines, helping to detect misalignments or movement that could lead to system failure.

• Automotive Manufacturing: Essential for maintaining precision in assembly lines and automated systems where accurate positioning and measurement are critical.

• Aerospace: Helps in monitoring the condition and position of components in aerospace systems, ensuring they operate within safe parameters.

Product Advantages

• Non-Contact Measurement: The PR6424/118-000 uses eddy current technology, eliminating the need for physical contact with the object being measured. This significantly reduces wear and tear, extending the sensor’s lifespan.

• Compact and Lightweight: With a sensor head diameter of only 16 mm and a weight of 0.2 kg, the sensor can easily be integrated into space-constrained applications.

• High Precision: This sensor provides an exceptional accuracy of ±0.001 mm, making it perfect for applications that require highly accurate measurements.

• Fast Response Time: With a response time of less than 1 ms, the sensor can capture rapid changes in displacement and position, making it suitable for high-speed applications.

• Wide Operational Range: The sensor operates effectively in temperatures ranging from -20°C to 85°C, making it suitable for a wide variety of industrial environments.

• Durability and Protection: With an IP67 protection rating, the sensor is dust-tight and resistant to immersion in water, ensuring reliable operation in harsh industrial conditions.

• Flexible Output Options: The sensor provides both analog (4-20 mA) and digital (0-10 V) outputs, making it easy to integrate with different monitoring systems.

FAQ

1. What measurement principle does the Epro PR6424/118-000 sensor use?

The Epro PR6424/118-000 sensor uses eddy current technology to provide non-contact displacement and position measurements.

2. What type of output does the sensor provide?

The sensor offers both analog (4-20 mA) and digital (0-10 V) outputs, depending on the configuration.

3. What is the accuracy of the sensor?

The sensor provides high accuracy with a typical value of ±0.001 mm.

4. What is the operating distance range of the Epro PR6424/118-000 sensor?

The operating distance range is from 1 mm to 8 mm, depending on the specific configuration.

5. What is the required supply voltage for the sensor?

The sensor requires a supply voltage between 10 and 30 VDC.

6. How fast is the response time of the sensor?

The sensor has a fast response time of less than 1 ms, making it suitable for real-time applications.

7. What is the operating temperature range for the sensor?

The operating temperature range is from -20°C to 85°C, making it suitable for a wide range of industrial environments.

8. Is the Epro PR6424/118-000 sensor suitable for outdoor applications?

Yes, the sensor has an IP67 protection rating, meaning it is dust-tight and resistant to water immersion, making it ideal for outdoor use.

9. Is the sensor suitable for vibration monitoring?

Yes, the sensor is well-suited for vibration analysis and machine condition monitoring.

10. Can the output of the Epro PR6424/118-000 sensor be customized?

Yes, the output of the sensor can be customized to meet specific system requirements, offering both analog and digital output options.
