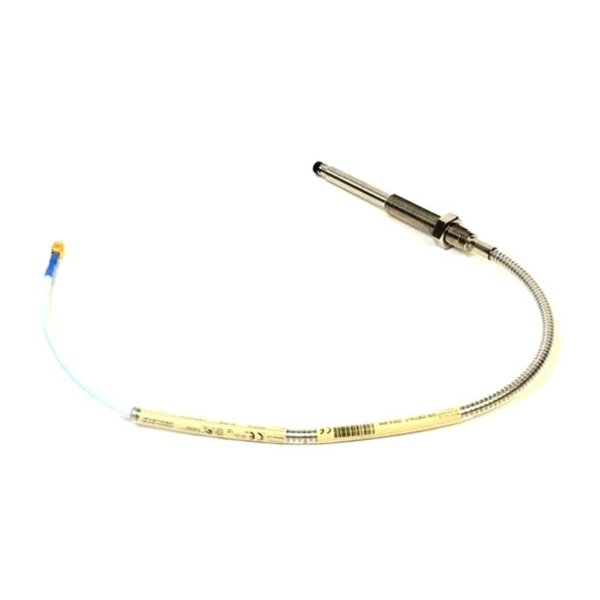

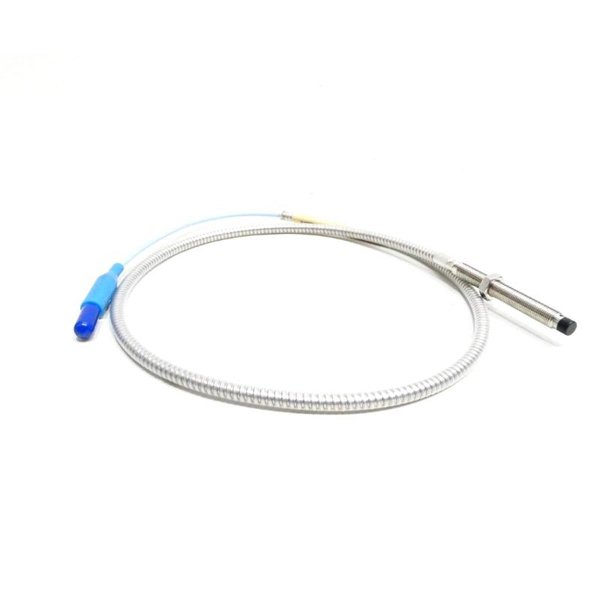

Bently Nevada 330102-05-40-05-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-05-40-05-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-05-40-05-02-05 is part of the 3300 XL 8 mm proximity transducer system, designed to deliver precise vibration and position measurements in rotating machinery. It features armored construction for durability, ClickLoc connectors for secure and easy installation, and full compliance with API 670 standards. The probe provides static and dynamic measurements with robust environmental resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm, armored |
| Part Number | 330102-05-40-05-02-05 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Diameter (Tip) | 8.0 mm |
| Thread Size | 3/8-24 UNF |
| Cable Type | Standard with ClickLoc connector |
| Operating Temperature | -52°C to +177°C (probe tip) |
| Linear Range | 2 mm (0.25–2.3 mm) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Output Sensitivity | 200 mV/mil ±5% |
| Recommended Shaft Min. | 76.2 mm |
Applications
-
Vibration monitoring of fluid-film bearing machines
-
Shaft position and runout measurements
-
Keyphasor reference signal generation
-
Overspeed protection measurements
Product Advantages
-
Fully API 670 compliant
-
Interchangeable components eliminate calibration needs
-
High immunity to EMI/RFI for reliable performance
-
Patented TipLoc and CableLoc designs ensure mechanical integrity
-
Armor provides additional protection in harsh environments
FAQ
Q1: What is the standard output sensitivity of this probe?
A1: 200 mV/mil ±5% over the linear range.
Q2: Is the 330102 probe compatible with older 3300 systems?
A2: Yes, it is backward-compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: What is the minimum recommended shaft diameter?
A3: At least 76.2 mm for accurate measurements.
Q4: Does the probe require a specific target material?
A4: It is factory-calibrated to AISI 4140 steel but can be calibrated for others on request.
Q5: Is it suitable for hazardous areas?
A5: Yes, it holds CSA, ATEX, and IECEx approvals for hazardous area use.
Q6: Can the probe operate in high humidity?
A6: Yes, less than 3% scale factor change in 93% humidity over 56 days.
Q7: What is the advantage of the armored cable?
A7: It enhances protection against mechanical damage and harsh environments.
Q8: What is the recommended installation torque for the probe?
A8: 11.2 N•m (100 in•lbf) for forward-mount probes.
Q9: What is the linear measurement range of the probe?
A9: Approximately 0.25–2.3 mm (10–90 mils).
Q10: Does it require special tools for connector installation?
A10: No, the ClickLoc connectors can be tightened by hand.
