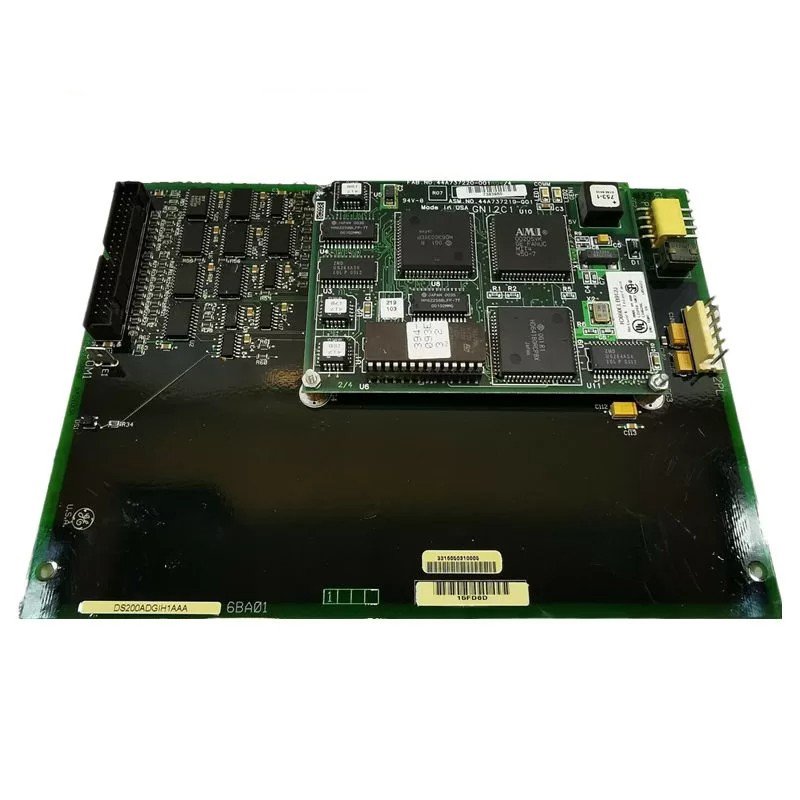

The GE DS200ADGIH1AAA is an auxiliary interface board for the Mark V Turbine Control System Series. Though no longer produced, it was crucial for the automation of GE steam and gas turbines. This board is a part of the Speedtronic control system, a groundbreaking technology in turbine control.

Technical Specifications

• Dimensions: 8 inches wide by 6 inches long
• Connectors: Includes one 40-pin connector and one 6-pin connector
• Components: Features 60 jumpers and multiple test points
• Installation: Mounts in a board cabinet with four screws
• Conformal Coating: DC2K type

Function

The DS200ADGIH1AAA board acts as an interface for the Mark V control system. It ensures effective communication and data transfer within the system. For specific roles and functionalities, detailed documentation or engineering knowledge of the Mark V system is necessary.
