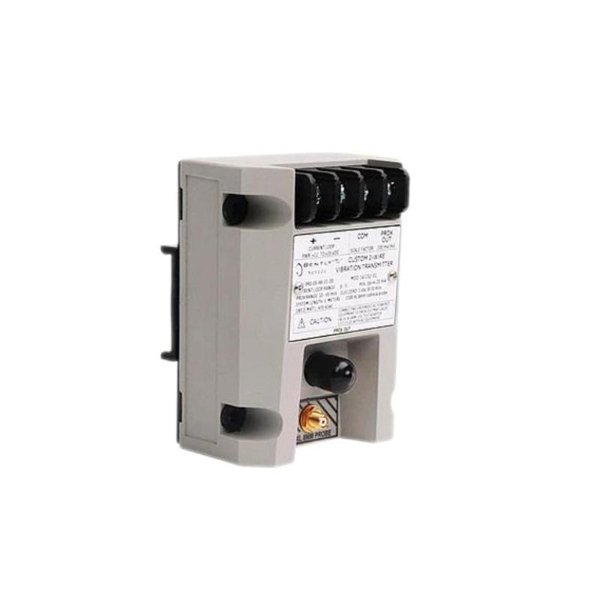

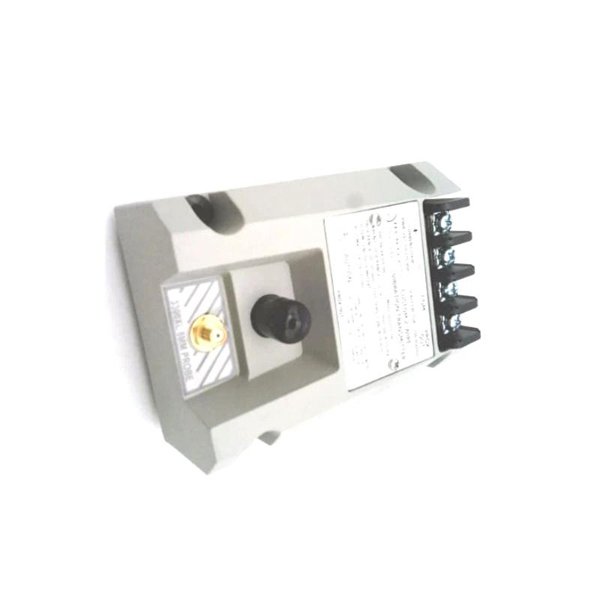

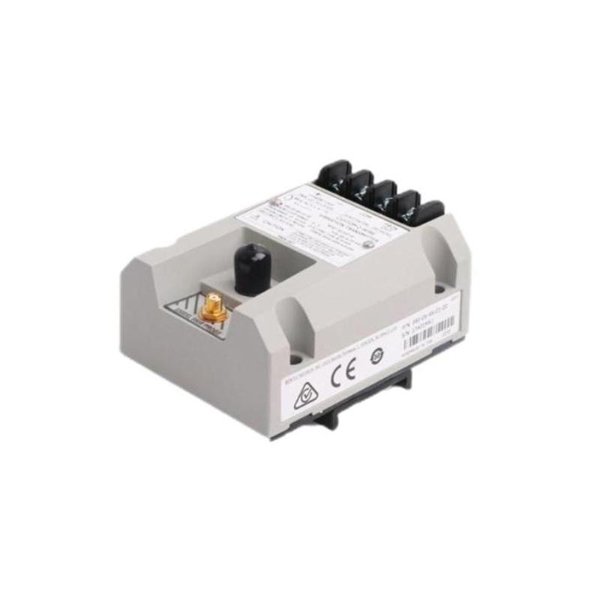

Bently Nevada 990-04-70-02-00 Vibration Transmitter
Manufacturer:Bently Nevada
Product Number:990-04-70-02-00
Product Type:Vibration Transmitter
Origin:USA
Dimensions:100.1 x 73.9 x 53.3mm
Weight:0.43kg
Views:49
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 990-04-70-02-00 Vibration Transmitter is designed for OEMs of centrifugal compressors, small pumps, motors, and fans. It provides a simple 4–20 mA output signal proportional to vibration amplitude, enabling integration into machinery control systems. It is a loop-powered, two-wire device compatible with the 3300 NSv proximity probe.
Features
-
Integrated Proximitor® Sensor—no external unit required
-
Non-isolated dynamic signal output for diagnostics
-
Built-in NOT OK signal suppression
-
DIN-rail or bulkhead mounting options
-
Rugged, potted construction for high-humidity environments
-
Test input pin for output verification
-
Loop accuracy within ±1.5%
Technical Specifications
| Parameter | Value |
|---|---|
| Input | 3300 NSv Proximity Probe |
| Power Supply | +12 to +35 VDC |
| Output | 4–20 mA DC, loop-powered |
| Frequency Response | 5 Hz to 6,000 Hz |
| Probe Gap Range | 0.5–1.75 mm |
| Max Loop Resistance | 1000 Ω @ 35 VDC |
| Accuracy | ±1.5% of full-scale |
| NOT OK Response | < 3.6 mA within 100 µs |
| Temperature Range (Op.) | -35°C to +85°C |
| Humidity | 100% condensing (non-submerged) |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Weight | 0.43 kg |
| Certifications | CSA Div 2, ATEX Zone 0/2, RoHS, FCC, ABS, EN 61000-6-2/6-4 |
Applications
-
Centrifugal air compressors
-
Small electric motors and pumps
-
Industrial fans
-
Machinery requiring basic vibration trending
-
OEM systems using 4–20 mA vibration signal for control logic
Advantages
-
Compact and integrated design
-
Simplified installation with DIN/bulkhead options
-
Ideal for environments with space or humidity constraints
-
Enhances machinery protection without full monitoring systems
-
Direct integration into PLC/DCS with industry-standard signal
-
Field diagnostic support via dynamic “Prox Out” output
FAQs
Q1: What sensor is compatible with the 990 transmitter?
A1: It is designed for use with the 3300 NSv proximity probe and extension cable.
Q2: What is the power requirement for the unit?
A2: The unit operates from a 12–35 VDC power supply.
Q3: Can it be used in hazardous areas?
A3: Yes, it is certified for CSA Div 2 and ATEX Zone 0 and Zone 2.
Q4: What is the output signal type?
A4: A standard 4–20 mA loop-powered signal proportional to peak-to-peak vibration.
Q5: Is the output signal isolated?
A5: No, the dynamic output (“Prox Out”) is non-isolated; use a 122115-01 adapter for isolation.
Q6: How accurate is the transmitter?
A6: It maintains ±1.5% loop accuracy over the full-scale range.
Q7: What is the installation method?
A7: It supports DIN rail clips or bulkhead screw mounting.
Q8: What happens during a probe fault?
A8: The signal output drops below 3.6 mA, triggering a NOT OK condition.
Q9: Is there a diagnostic feature?
A9: Yes, “Prox Out” provides a diagnostic signal for test equipment.
Q10: Can it be used with grounded test instruments?
A10: Only with the 990/991 Test Adapter to isolate the “Prox Out” signal.
