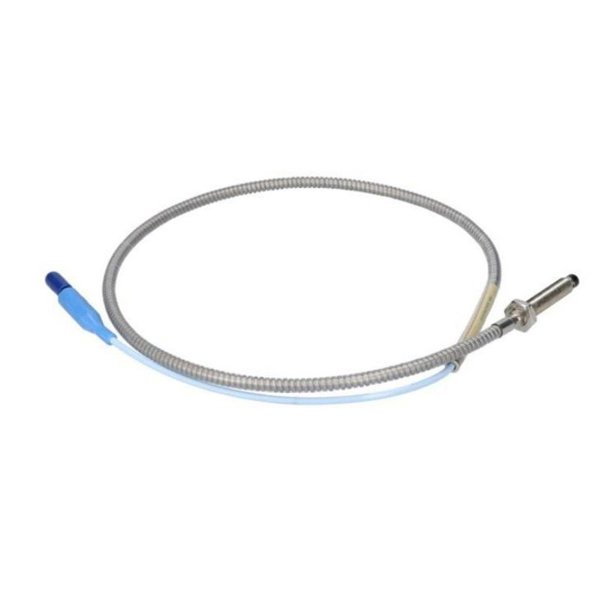

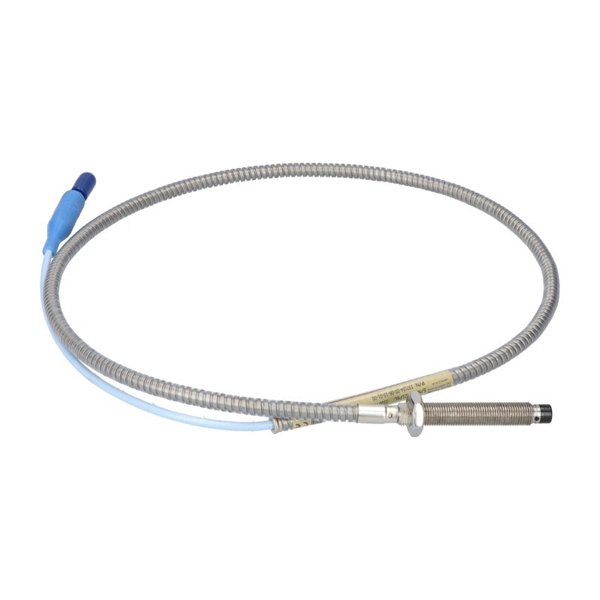

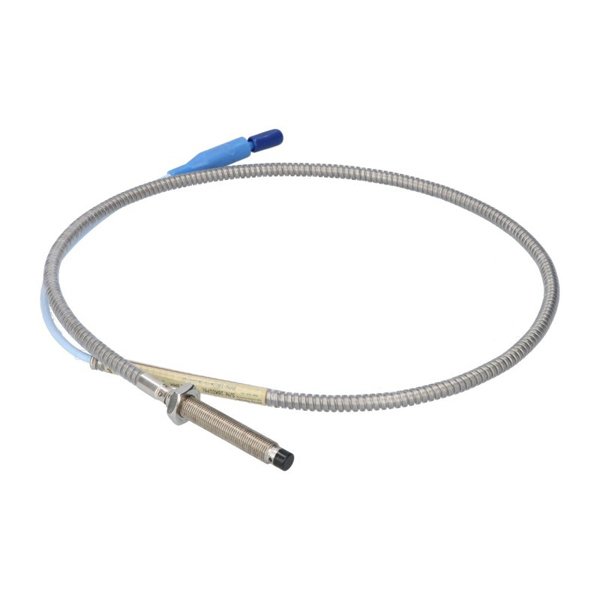

Bently Nevada 330104-00-09-05-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-09-05-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-09-05-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. It delivers precise, reliable vibration and position measurements in fluid-film bearing machines. The probe uses eddy current technology to output a voltage proportional to the distance to a conductive target. It is designed for demanding environments, with robust construction and excellent immunity to RFI/EMI.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-00-09-05-02-00 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless steel |
| Thread Size | M10 x 1 |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Cable | 75 Ω triaxial, armored, ClickLoc |
| Tensile Strength | 330 N (75 lbf) |
| Minimum Shaft Diameter | 50.8 mm |
| Certification | CSA, ATEX, IECEx |
Applications
-
Radial and axial vibration monitoring
-
Shaft position measurements
-
Keyphasor and speed detection
Advantages
-
Complies with API 670 standard
-
Fully interchangeable components
-
High resistance to RFI/EMI
-
Rugged probe tip and cable design
-
No need for bench calibration
-
Compact M10 threading for tight installations
FAQ
Q1: What is the primary use of the 330104-00-09-05-02-00 probe?
A1: It measures vibration and position of rotating machinery shafts in fluid-film bearings.
Q2: Is this probe compatible with older 3300 series systems?
A2: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm systems.
Q3: What is the recommended installation gap?
A3: Approximately 1.27 mm (50 mils).
Q4: Does the probe come with an armored cable?
A4: Yes, this version includes an armored cable for enhanced durability.
Q5: What is the maximum operating temperature?
A5: +177°C for standard probes, up to +218°C for ETR models.
Q6: Is the probe suitable for high EMI environments?
A6: Yes, it features improved RFI/EMI immunity.
Q7: What is the linear measurement range?
A7: 2 mm (80 mils), from 0.25 mm to 2.3 mm.
Q8: Can this probe be used in hazardous areas?
A8: Yes, it is approved for use in hazardous areas under CSA, ATEX, and IECEx.
Q9: What is the minimum shaft diameter recommended?
A9: At least 50.8 mm, with 76.2 mm preferred.
Q10: How is the cable secured to the probe?
A10: Using patented CableLoc design for strong connection.
