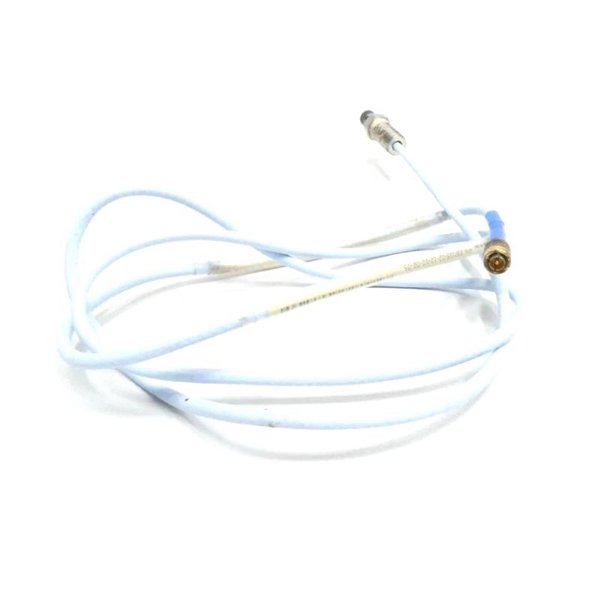

Bently Nevada 330105-02-12-15-02-05 3300 XL 8 mm Reverse Mount Probe
Manufacturer:Bently Nevada
Product Number:330105-02-12-15-02-05
Product Type:3300 XL 8 mm Reverse Mount Probe
Origin:USA
Total Length:1.5 meter
Weight:0.485 kg
Views:31
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330105-02-12-15-02-05 is a reverse-mount, non-contact proximity probe from the 3300 XL 8 mm series. Designed for precise static and dynamic measurements (such as shaft position and vibration), it is widely used in fluid-film bearing machinery. It offers superior robustness, API 670 compliance, and complete system interchangeability.
Applications
-
Keyphasor and speed measurements
-
Overspeed protection (when paired with proper configurations)
-
Monitoring of rotating equipment in turbines, compressors, and pumps
-
Suitable for confined mounting due to reverse-mount design
Advantages
-
Reverse mount for limited space installations
-
API 670 compliant performance
-
Fully interchangeable components (probe, cable, Proximitor)
-
Improved RFI/EMI immunity
-
Patented TipLoc and CableLoc designs ensure durability
-
FluidLoc cable option available for oil ingress protection
-
ClickLoc connectors ensure secure, tool-free connection
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Series | 3300 XL 8 mm Reverse Mount |
| Part Number | 330105-02-12-15-02-05 |
| Mounting Thread Type | 3/8-24 UNF |
| Total Length | 1.5 m |
| Weight | 0.485 kg |
| Probe Tip Diameter | 8 mm |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Type | Standard or FluidLoc, 75Ω triaxial FEP insulated |
| Connector Type | ClickLoc miniature coaxial |
| Max Case Torque (reverse-mount) | 22.6 N·m (200 in·lbf) |
| Operating Temperature (Probe) | -52°C to +177°C (standard), up to +218°C (ETR option) |
| Pressure Sealing | Viton® O-ring (not pressure tested by default) |
| Compliance | API 670, CE, RoHS, SIL 2/3, ATEX, IECEx, CSA |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 330105-02-12-15-02-05 probe?
A1: It measures shaft vibration and position in rotating machinery, especially where reverse mounting is required.
Q2: Is the probe compatible with older Bently Nevada systems?
A2: Yes, it’s backward compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: What makes the reverse mount design useful?
A3: It allows installation in space-constrained environments where forward mounting is impractical.
Q4: Does it meet API 670 standards?
A4: Yes, the probe meets mechanical, linearity, and temperature stability requirements of API 670.
Q5: What cable options are available?
A5: Standard and FluidLoc cable options are available, with lengths up to 9 meters.
Q6: What temperature range can the probe handle?
A6: The standard version handles -52°C to +177°C; ETR versions can go up to +218°C.
Q7: Is the probe suitable for high EMI/RFI environments?
A7: Yes, it features improved EMI/RFI immunity, making it suitable for demanding industrial settings.
Q8: Are special tools needed for connector installation?
A8: No, the ClickLoc connectors are finger-tightened and require no tools.
Q9: Can it be used in hazardous environments?
A9: Yes, it holds CSA, ATEX, and IECEx certifications for hazardous areas.
Q10: Does it require on-site calibration?
A10: No, components are fully interchangeable and pre-calibrated to AISI 4140 steel.
