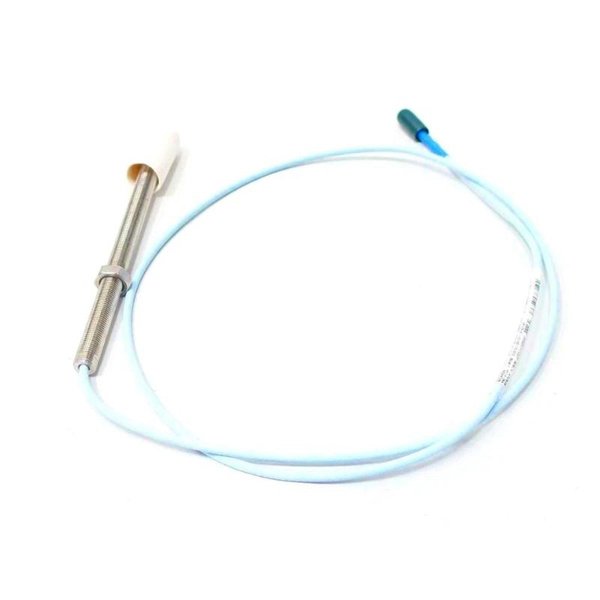

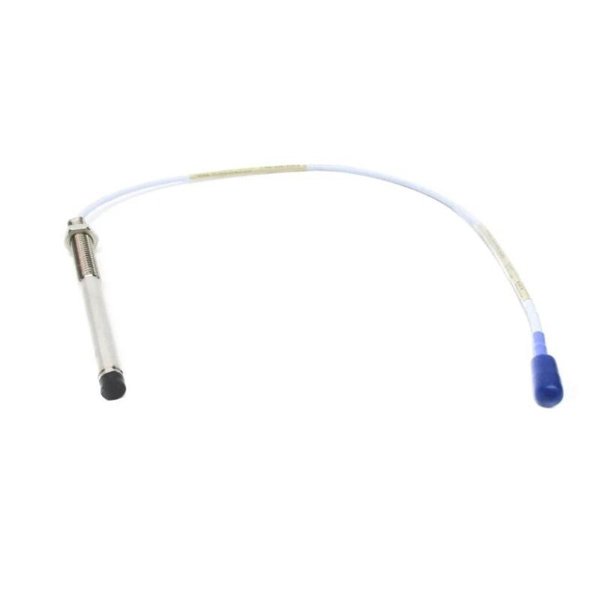

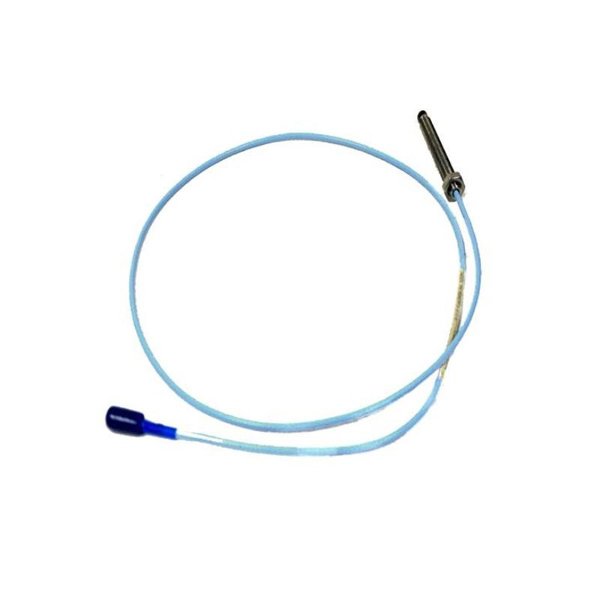

Bently Nevada 330101-00-48-10-02-RU 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-48-10-02-RU
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:33
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-48-10-02-RU is a high-precision proximity probe from the 3300 XL 8 mm series, designed for dynamic vibration and static position measurements. It forms a part of a complete transducer system that includes the proximity probe, extension cable, and Proximitor sensor. This model is particularly suited for fluid-film bearing machines, ensuring reliable performance in harsh industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Series | 3300 XL 8 mm Proximity Probe |
| Model Number | 330101-00-48-10-02-RU |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc connector |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | –52°C to +177°C |
| Pressure Sealing | Viton® O-ring seal |
| Mounting Thread | 3/8-24 UNF |
| Recommended Gap | 1.27 mm (50 mils) |
| Linear Range | 0.25 mm to 2.3 mm |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Compliance | API 670 compliant, CE, ATEX, CSA, IECEx, RoHS |
Applications
-
Shaft vibration monitoring
-
Thrust position measurements
-
Keyphasor reference signals
-
Overspeed and speed measurements
-
Condition monitoring in turbines, compressors, and large rotating equipment
Advantages
-
Full compliance with API 670
-
Interchangeable probe, extension cable, and Proximitor sensor
-
High immunity to EMI/RFI
-
Finger-tight, corrosion-resistant ClickLoc connectors
-
Robust mechanical construction with TipLoc and CableLoc design
-
Suitable for high-temperature environments (up to 177°C standard)
Frequently Asked Questions (FAQ)
Q1: What is the linear measurement range of this probe?
A1: It measures from 0.25 mm to 2.3 mm with high accuracy.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, the standard version supports up to +177°C. ETR versions can go up to +218°C.
Q3: Is it compatible with older 3300 systems?
A3: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What type of connector is used?
A4: It uses a ClickLoc miniature coaxial connector with optional protector.
Q5: Is field calibration required?
A5: No, factory calibration to AISI 4140 steel allows component interchange without field calibration.
Q6: What shaft sizes are recommended for use?
A6: Minimum shaft diameter is 50.8 mm; 76.2 mm is recommended to minimize cross-talk.
Q7: What material is the probe case made of?
A7: It is made of corrosion-resistant stainless steel (AISI 303/304).
Q8: What’s the output sensitivity?
A8: It provides 7.87 V/mm (200 mV/mil) ±5% for 1 m systems.
Q9: Is it suitable for hazardous areas?
A9: Yes, it meets CSA, ATEX, IECEx certifications for use in hazardous locations.
Q10: What is the bend radius of the cable?
A10: Minimum bend radius is 25.4 mm (1.0 inch).
