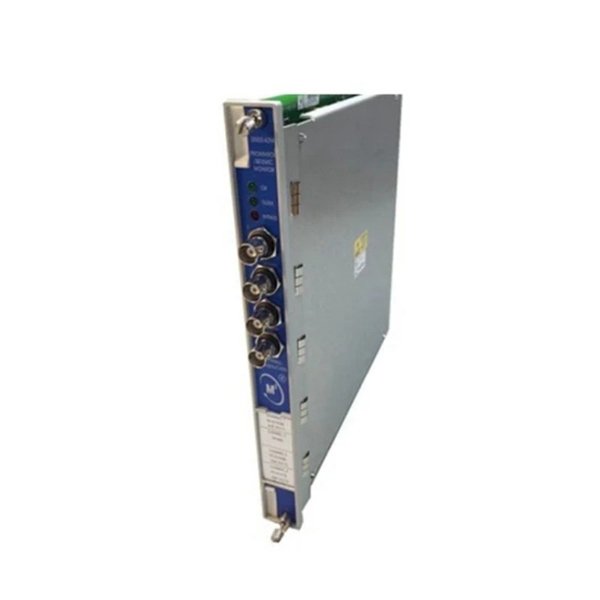

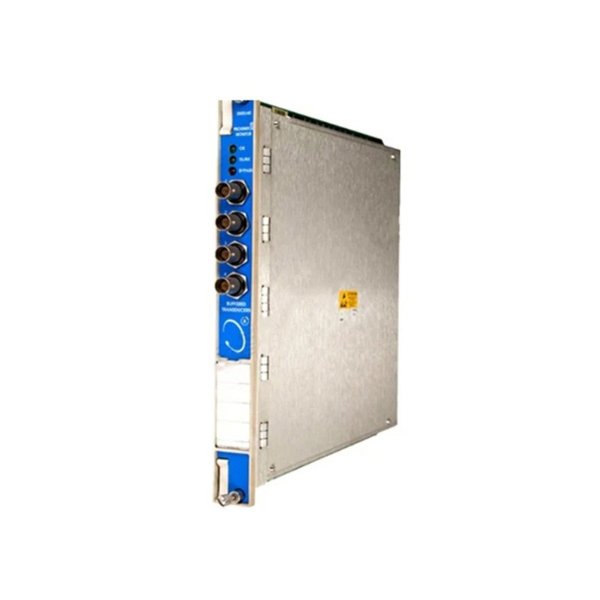

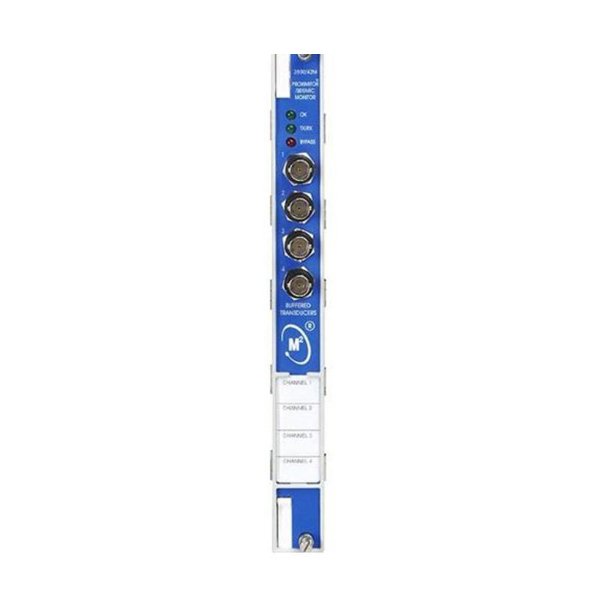

Bently Nevada 3500/42M 135489-02 Shaft Absolute I/O Module

The Bently Nevada 3500/42M 135489-02 is a critical component of the Bently Nevada 3500 Series Machinery Protection System, designed specifically for monitoring seismic and proximity sensors on rotating machinery. This module is primarily used to detect vibration and seismic events to ensure the health and safety of industrial assets such as turbines, compressors, and generators. With its robust design, high reliability, and compatibility with various sensor types, the 3500/42M module offers real-time protection against machinery faults and failures.

Engineered to meet stringent industrial standards, the 3500/42M module integrates seamlessly within the 3500 monitoring system, providing accurate data acquisition and signal conditioning. It supports fast and reliable signal processing, ensuring timely alarms and alerts to prevent costly unplanned downtime. This product is essential for industries that rely on continuous operation of critical rotating equipment.

Technical Specifications

Applications

• Continuous vibration and seismic monitoring of large rotating machinery such as gas turbines, steam turbines, compressors, and motors.

• Protection of critical equipment in power generation plants to prevent catastrophic failures.

• Monitoring of machinery in petrochemical, oil & gas, and refining industries.

• Use in aerospace test facilities and industrial manufacturing plants requiring high reliability machinery protection.

• Detection of seismic activities and shock events that could indicate structural or operational anomalies.

• Integration in comprehensive machinery diagnostics systems for predictive maintenance programs.

Advantages

• Reliable Fault Detection: Provides accurate, real-time monitoring of vibration and seismic events, enabling early fault detection.

• Versatile Sensor Support: Compatible with various proximity probes and seismic sensors for broad application flexibility.

• Robust Build Quality: Designed to withstand harsh industrial environments with wide operating temperature and humidity tolerances.

• Fast Response: Low latency signal processing ensures timely alarms and interventions to prevent machinery damage.

• Modular Design: Easy integration into the Bently Nevada 3500 system chassis with straightforward installation and replacement.

• Comprehensive Diagnostics: Supports detailed data analysis for predictive maintenance, reducing unexpected downtime.

• Wide Power Range: Operates reliably on a wide DC voltage range, ensuring system stability.

• Industry Standards Compliance: Meets global safety and performance standards including CE, UL, and CSA certifications.

FAQ

• Q1: What types of sensors does the 3500/42M module support?

  The module supports proximity probes and seismic sensors, commonly used for machinery vibration and shock monitoring.

• Q2: Can the 3500/42M be installed in any rack?

  It is designed specifically for the Bently Nevada 3500 Series rack system and must be installed accordingly.

• Q3: What is the typical response time of the module?

  The module processes inputs with a response time typically less than 100 milliseconds.

• Q4: How is the module powered?

  It requires a nominal 24 VDC power supply with an operational range of 18 to 32 VDC.

• Q5: Is the module suitable for harsh environments?

  Yes, it operates reliably between -40°C and +85°C and can tolerate high humidity environments up to 95% non-condensing.

• Q6: How many channels does the 3500/42M support?

  It supports 4 input channels, allowing monitoring of multiple sensors simultaneously.

• Q7: What kind of outputs does the module provide?

  The module provides configurable analog outputs including 4-20 mA, 0-20 mA, or voltage outputs.

• Q8: Does the 3500/42M module offer diagnostic feedback?

  Yes, it integrates with the 3500 system to provide diagnostic data to aid in predictive maintenance.

• Q9: What certifications does this module have?

  It complies with CE, UL, and CSA certifications for safety and quality.

• Q10: Can the 3500/42M monitor both vibration and seismic events?

  Yes, it is designed to monitor both types of signals through its compatible sensor inputs.
