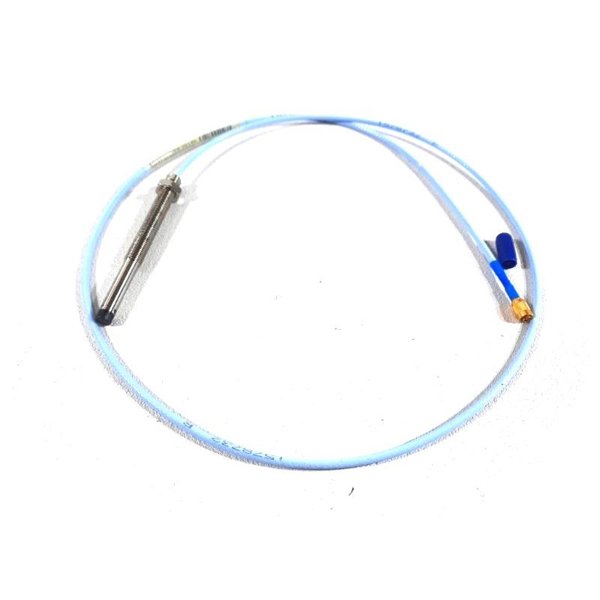

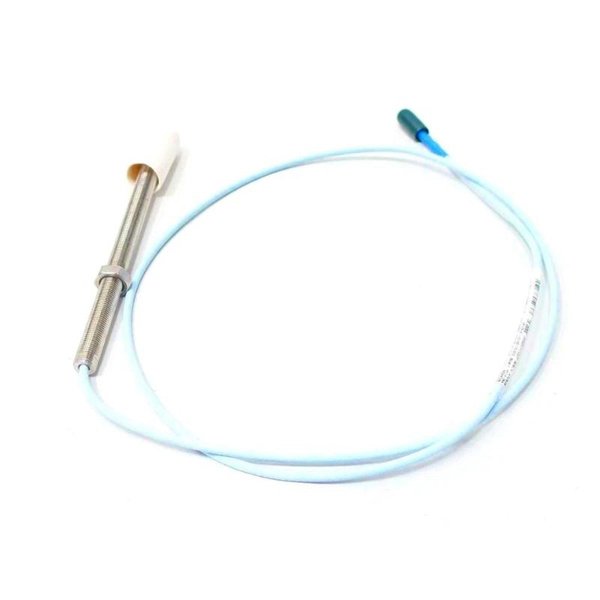

Bently Nevada 330101-00-65-10-11 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-65-10-11 is part of the 3300 XL 8 mm Proximity Transducer System. This system includes a proximity probe, extension cable, and Proximitor sensor, designed for accurate non-contact vibration and position measurements. It is suitable for fluid-film bearing machines, turbine shaft monitoring, and Keyphasor reference applications. The probe offers high durability, EMI immunity, and ease of installation with its ClickLoc connector design.

Applications

• Shaft vibration and position monitoring

• Keyphasor and speed sensing

• Fluid-film bearing condition monitoring

• Turbomachinery diagnostics

• Overspeed protection systems

• Electrical insulation-critical environments

Advantages

• Fully API 670 compliant (mechanical, range, stability)

• Excellent EMI/RFI immunity — suitable for high-interference environments

• SpringLoc terminal strips for faster wiring

• TipLoc and CableLoc patented designs for robust field performance

• Interchangeable components with other 3300-series systems

• Extended temperature variants available (up to 260°C cable)

Technical Specifications

FAQ

Q1: What material is the 330101-00-65-10-11 probe tip made of?

A1: It is made of PPS (Polyphenylene sulfide), offering durability and chemical resistance.

Q2: Is the probe suitable for high-temperature environments?

A2: Yes, the standard model supports up to 177°C; extended versions support up to 218°C for the probe and 260°C for the cable.

Q3: Can I mix components with older 3300-series systems?

A3: Yes, it is backward-compatible with 3300 5 mm and 8 mm series components.

Q4: Does this model require calibration for each installation?

A4: No, all components are interchangeable and factory-calibrated to AISI 4140 steel.

Q5: What is the recommended gap for optimal performance?

A5: The recommended gap setting is 1.27 mm (50 mils).

Q6: How is the probe connected?

A6: Via gold-plated ClickLoc connectors that require only finger-tight installation.

Q7: Is the system compliant with API 670 standards?

A7: Yes, it meets mechanical configuration, linear range, and accuracy requirements.

Q8: What is the minimum shaft diameter supported?

A8: The minimum is 50.8 mm, but 76.2 mm is recommended for best accuracy.

Q9: Does the system offer EMI/RFI immunity?

A9: Yes, it meets CE mark standards without shielded conduit.

Q10: Can the probe withstand high-pressure sealing environments?

A10: Yes, it is designed with a Viton® O-ring for differential pressure sealing.
