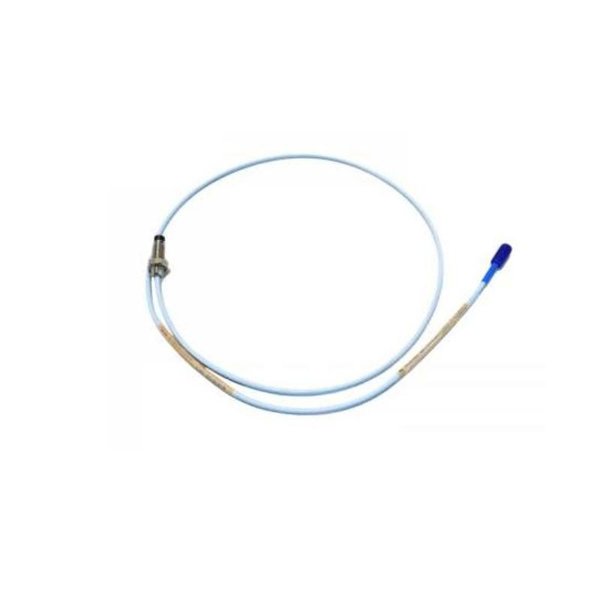

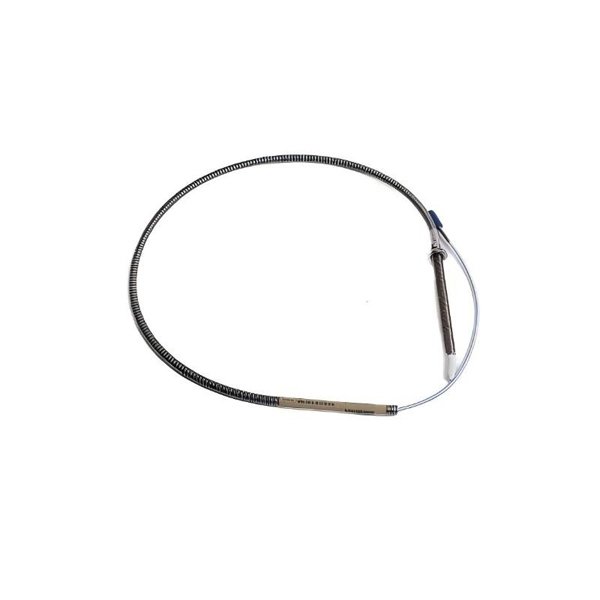

Bently Nevada 330104-13-19-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-13-19-10-02-00 is a precision-engineered 8 mm proximity probe from the advanced 3300 XL series. This series is designed to monitor the displacement and vibration of rotating machinery with high accuracy, making it an essential tool for predictive maintenance. It helps detect early signs of mechanical issues such as misalignment, imbalance, and bearing wear. Early detection can prevent catastrophic failures and reduce downtime, saving both time and money for operations.

The 3300 XL probe has a total length of 1.0 meters and a weight of 0.323 kg, making it lightweight and easy to integrate into different applications. Built with durable materials and designed for harsh industrial environments, this probe is well-suited for applications in industries such as power generation, oil and gas, manufacturing, and more.

Technical Parameters

Product Applications

The Bently Nevada 330104-13-19-10-02-00 3300 XL proximity probe is versatile and suitable for numerous industrial applications where precision monitoring of shaft displacement and vibration is critical. Key applications include:

1. Turbine and Compressor Monitoring: The proximity probe is ideal for real-time monitoring of turbines and compressors in power generation facilities. It ensures that these critical components operate within proper limits, reducing the likelihood of catastrophic failures.

2. Pumps and Motors: In applications involving pumps and motors, the probe detects imbalances and misalignments that may result in bearing wear, helping maintain the equipment’s performance and longevity.

3. Power Generation Plants: In the power generation industry, the 3300 XL probe is used to monitor the health of critical machinery, such as turbines and generators, providing operators with essential data to avoid unplanned downtime.

4. Oil and Gas Industry: The probe is widely used in the oil and gas industry to monitor rotating machinery like pumps and compressors, ensuring that equipment remains in good condition even in the harshest of environments.

5. Manufacturing and Chemical Processing: The probe is also used in manufacturing plants and chemical processing facilities, helping identify potential machinery faults before they lead to system failures.

6. HVAC Systems and Industrial Fans: HVAC systems and industrial fans often rely on this proximity probe to detect imbalances and misalignments, optimizing their performance and efficiency.

Advantages

1. High-Precision Measurements: The 330104-13-19-10-02-00 probe provides ±0.5 μm accuracy, delivering precise data for machinery condition monitoring, which is critical for early fault detection.

2. Durable and Reliable: Built from stainless steel, the probe is highly durable and resistant to corrosion, making it ideal for use in harsh industrial environments.

3. IP68 Rating: With an IP68 rating, the probe is dustproof and waterproof, offering superior protection against environmental factors such as water, dust, and debris.

4. Wide Operating Temperature Range: The 3300 XL probe operates efficiently in a temperature range from -40°C to 121°C, making it versatile for use in both cold and hot conditions.

5. Energy-Efficient: The probe operates with a 24 V DC power supply, making it energy-efficient and suitable for integration into systems with low-power requirements.

6. Compact and Lightweight: With a total length of 1.0 meters and a weight of 0.323 kg, the probe is easy to install and handle in a variety of applications.

7. Early Fault Detection: The high sensitivity of the probe allows for the early detection of mechanical issues, such as bearing wear or misalignment, helping prevent unplanned downtime and extending equipment life.

8. Seamless Integration: The probe is designed to integrate seamlessly with Bently Nevada’s 3300 XL system, simplifying installation and enabling real-time monitoring of rotating machinery.

Frequently Asked Questions (FAQ)

1. What is the diameter of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The diameter of the probe is 8 mm.

2. What is the total length of the probe?

   • The total length of the probe is 1.0 meters.

3. What is the weight of the 3300 XL 8 mm proximity probe?

   • The weight of the probe is 0.323 kg.

4. What is the frequency range of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe has a frequency range of 0-200 kHz.

5. What material is the probe made from?

   • The probe is made from stainless steel, offering durability and resistance to corrosion.

6. What is the accuracy of the 3300 XL 8 mm proximity probe?

   • The accuracy is ±0.5 μm.

7. What is the operating temperature range of the 3300 XL 8 mm proximity probe?

   • The operating temperature range is from -40°C to 121°C.

8. What power supply does the 3300 XL 8 mm proximity probe require?

   • The probe requires a 24 V DC power supply.

9. Is the 3300 XL 8 mm proximity probe suitable for use in harsh environments?

   • Yes, the probe has an IP68 rating, which makes it both dustproof and waterproof.

10. In which industries can the 3300 XL 8 mm proximity probe be used?

    • The probe is suitable for industries such as power generation, oil and gas, chemical processing, HVAC, and industrial fans.
