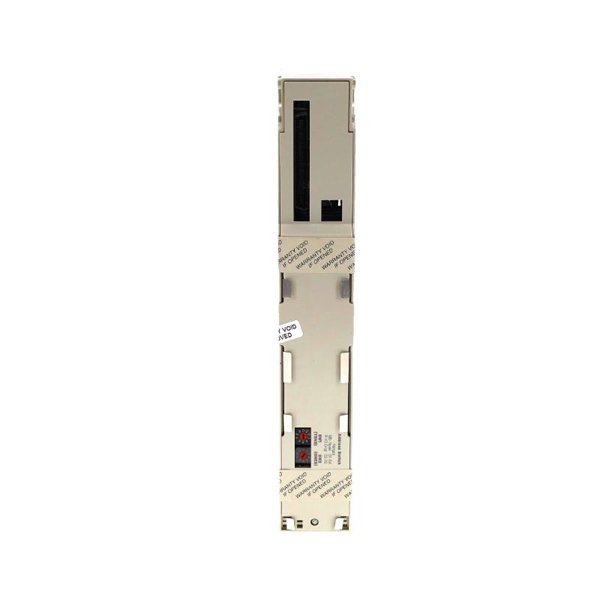

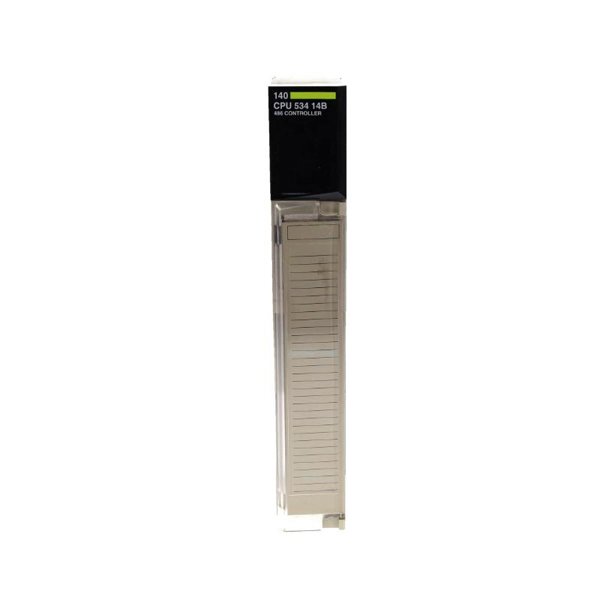

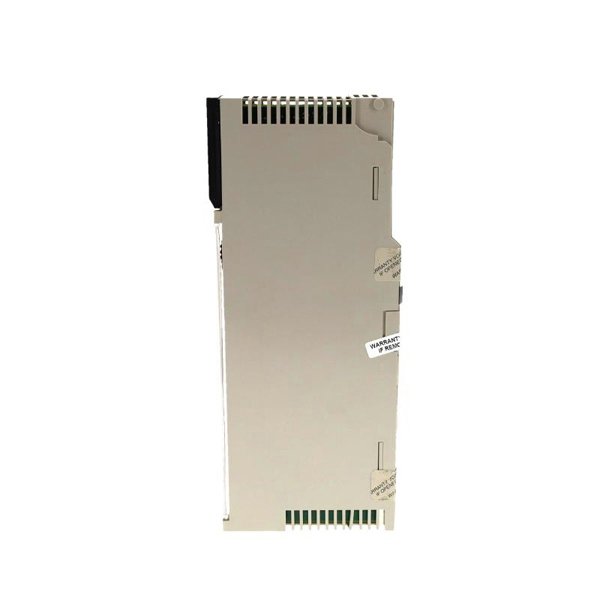

Schneider 140CPU53414BC With Mathematical Coprocessor

The Schneider Electric 140CPU53414BC is a high-performance central processing unit from the Modicon Quantum PLC family. Engineered for complex industrial applications, this CPU stands out by integrating a mathematical coprocessor, offering enhanced computational capabilities especially beneficial for intensive control algorithms and high-speed processing tasks.

Part of Schneider’s legacy Quantum series, the 140CPU53414BC is designed for large-scale automation environments that demand reliability, deterministic execution, and flexibility. Its support for Unity Pro (EcoStruxure Control Expert) software ensures compatibility with IEC 61131-3 programming standards, making it easy to integrate into new or existing automation systems.

It includes Ethernet and Modbus communication ports, supports hot standby redundancy, and is suitable for both process and discrete automation applications across industries like power, water, oil & gas, and manufacturing.

Technical Specifications

Applications

The 140CPU53414BC CPU module is built for advanced and mission-critical industrial applications:

• Process Control Systems

  Ideal for managing complex process plants in oil & gas, refining, chemical, and pharmaceutical sectors, especially where PID loops and mathematical modeling are critical.

• Power Generation and Utilities

  Controls turbine logic, electrical distribution, and SCADA operations with high precision and fault tolerance.

• Water and Wastewater Treatment

  Coordinates pump controls, filtration systems, and distributed control networks in municipal and industrial water operations.

• Advanced Manufacturing Lines

  Drives intelligent automation in high-speed packaging, robotics, and CNC machining systems requiring fast floating-point calculations.

• Infrastructure Automation

  Manages control systems in airports, railways, tunnels, and energy-efficient building applications.

• Energy Management

  Calculates and monitors energy consumption, peak demand, and load control in industrial facilities using real-time data.

Advantages

• Integrated Mathematical Coprocessor

  Executes complex floating-point operations quickly and accurately, reducing overall CPU load and boosting performance for math-intensive tasks.

• High-Speed Logic Execution

  With 1 MB of application memory and optimized instruction cycles, it is suitable for large, fast-paced control environments.

• Reliable Redundancy Support

  Compatible with hot standby configurations to ensure uninterrupted operations and fault-tolerant system architecture.

• Modular Design with Quantum Compatibility

  Seamlessly fits into existing Modicon Quantum systems, supporting all standard racks, power supplies, and I/O modules.

• Industrial Protocol Support

  Natively supports Modbus, Modbus TCP/IP, and Ethernet/IP for wide device interoperability and integration.

• Enhanced Software Ecosystem

  Unity Pro offers modern, standardized programming with debugging, diagnostics, simulation, and monitoring tools.

Frequently Asked Questions (FAQ)

1. What makes the 140CPU53414BC different from the standard 53414 model?

The key difference is the built-in mathematical coprocessor, which enhances the module’s ability to handle floating-point and intensive calculation functions.

2. Is the module compatible with existing Quantum I/O racks?

Yes, it is fully compatible with the Modicon Quantum backplane, allowing simple replacement or upgrades within existing systems.

3. Can this CPU module be used in redundant configurations?

Absolutely. It supports hot standby redundancy, making it ideal for mission-critical applications where continuous operation is essential.

4. What programming environment is supported?

This CPU is programmed using Unity Pro, now known as EcoStruxure Control Expert, Schneider Electric’s unified PLC software suite.

5. What industrial communication protocols does it support?

It supports Modbus RTU, Modbus TCP/IP, and Ethernet/IP, providing integration options for both legacy and modern systems.

6. Is this module suitable for high-speed control systems?

Yes. The coprocessor and fast cycle time make it well-suited for real-time control and rapid data processing applications.

7. Can I expand the memory of the CPU?

Yes, additional storage or backup can be provided through a PCMCIA memory card, supported by the module.

8. Does it support remote monitoring and diagnostics?

Yes, users can access diagnostics and system monitoring remotely via Ethernet using Schneider’s software tools.

9. Is the module suitable for use in hazardous environments?

Yes, it holds ATEX and UL certifications, making it suitable for regulated or hazardous industrial conditions.

10. Can I connect SCADA systems directly to this CPU?

Yes, with its built-in Ethernet and Modbus ports, it integrates easily into SCADA and distributed control systems.
