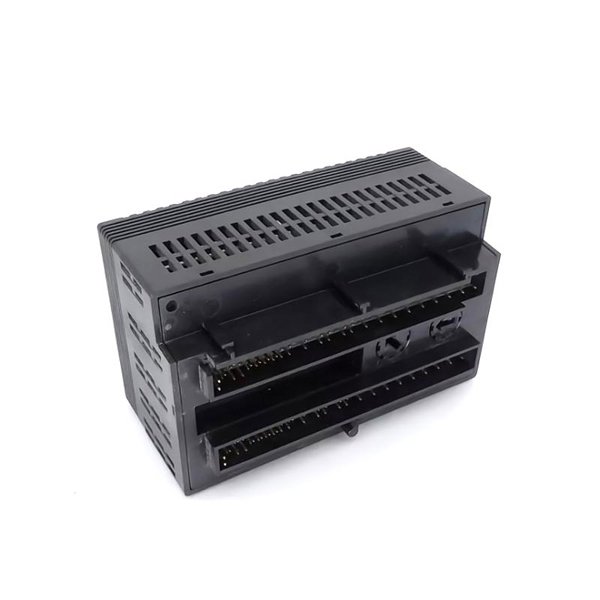

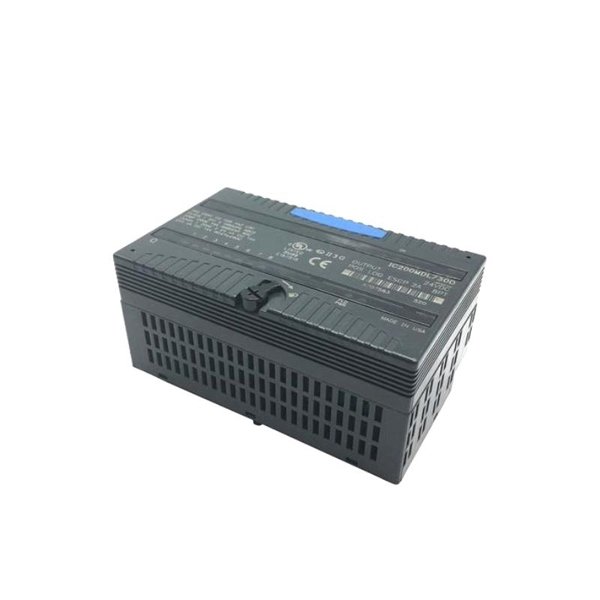

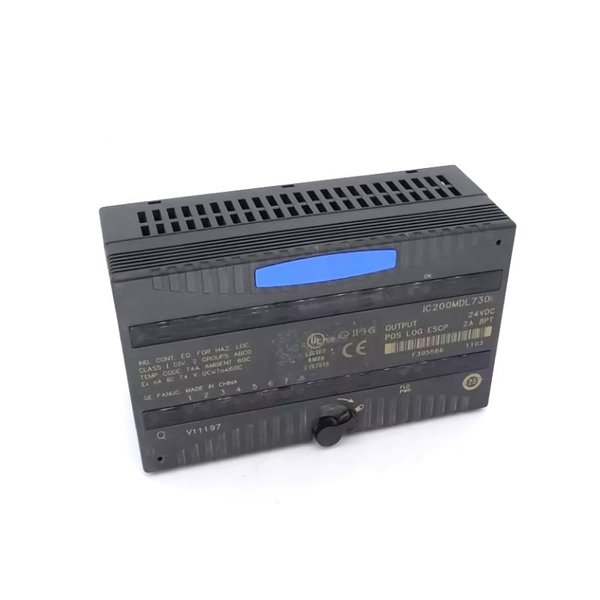

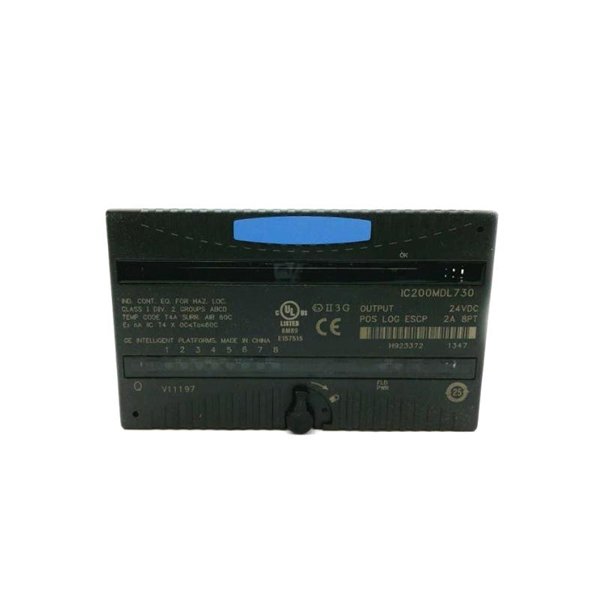

General Electric IC200MDL730 VersaMax Discrete Output Module

The GE IC200MDL730 is a VersaMax Discrete Output Module designed for industrial automation applications. This module is part of the GE VersaMax PLC system and provides reliable, high-performance discrete output capabilities. It features 12 output points, supporting 24V DC, making it suitable for various industrial control systems. The module is compact, easy to install, and offers robust performance in demanding environments.

The IC200MDL730 is designed for direct interface with field devices such as solenoids, relays, and indicators. Its optically isolated outputs ensure safe and interference-free operations. This module supports sourcing outputs, which means it sources current to connected devices, providing efficient and reliable control in automation applications.

With its hot-swappable capability, maintenance and replacement can be performed without shutting down the system, ensuring minimal downtime. The module is widely used in manufacturing, energy, water treatment, and other industrial sectors requiring reliable output control.

Product Specifications

Product Applications

The GE IC200MDL730 module is used in a variety of industrial automation and control applications, including:

1. Manufacturing Automation – Used in automated production lines for controlling actuators and indicators.

2. Energy Sector – Applied in power plants and substations for process control.

3. Water Treatment Plants – Helps regulate pumps and valves in water treatment facilities.

4. Building Automation – Used in HVAC systems and lighting control.

5. Food & Beverage Industry – Ensures precise control over packaging and processing equipment.

6. Material Handling Systems – Controls conveyor belts, robotic arms, and other material movement systems.

7. Oil & Gas Industry – Used in process automation for drilling and refining.

8. Pharmaceutical Manufacturing – Provides accurate and reliable control in production environments.

Product Advantages

1. High Performance – Fast response time ensures precise control of output devices.

2. Reliable Isolation – Optical isolation enhances safety and reduces electrical noise.

3. Compact & Modular – Fits seamlessly into VersaMax PLC systems without occupying excessive space.

4. Hot-Swappable Feature – Enables module replacement without shutting down the entire system.

5. Energy Efficient – Optimized power consumption for industrial applications.

6. Wide Operating Temperature Range – Suitable for harsh industrial environments.

7. Easy Installation & Configuration – Simple terminal connections for quick setup.

8. Versatile Applications – Suitable for multiple industries requiring discrete output control.

9. High Load Capacity – Can handle up to 0.5A per output, ensuring compatibility with various devices.

10. Robust Build Quality – Designed for durability in industrial environments.

Frequently Asked Questions (FAQ)

1. What is the output voltage of the IC200MDL730 module?

   • The module operates at 24V DC output voltage.

2. What type of output does the IC200MDL730 provide?

   • It provides sourcing outputs for controlling field devices.

3. Can this module be used in high-temperature environments?

   • Yes, it operates in temperatures ranging from 0°C to 60°C.

4. Is the IC200MDL730 hot-swappable?

   • Yes, it can be replaced without shutting down the system.

5. How many discrete outputs does the IC200MDL730 have?

   • It features 12 discrete output points.

6. What is the response time of this module?

   • The response time is 0.5ms (Off to On) and 1ms (On to Off).

7. Can this module be mounted on a DIN rail?

   • Yes, it supports both DIN rail and panel mounting.

8. What is the maximum current per output point?

   • Each output can handle up to 0.5A.

9. Does this module support optical isolation?

   • Yes, it features optical isolation for enhanced safety.

10. What industries commonly use this module?

• It is widely used in manufacturing, energy, water treatment, and automation systems.
