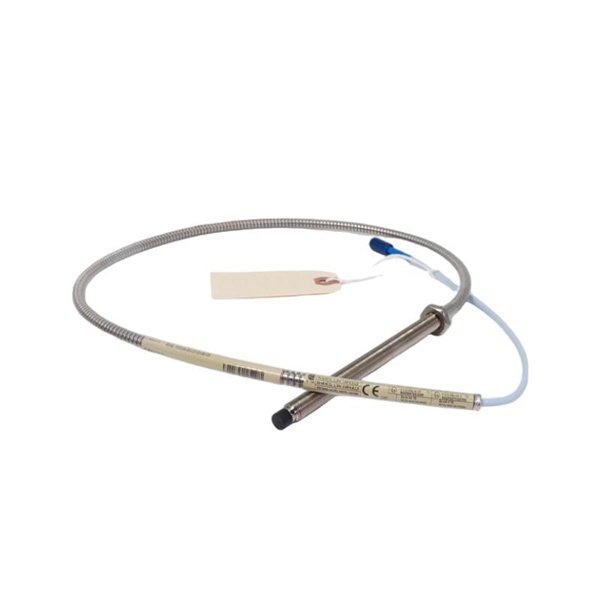

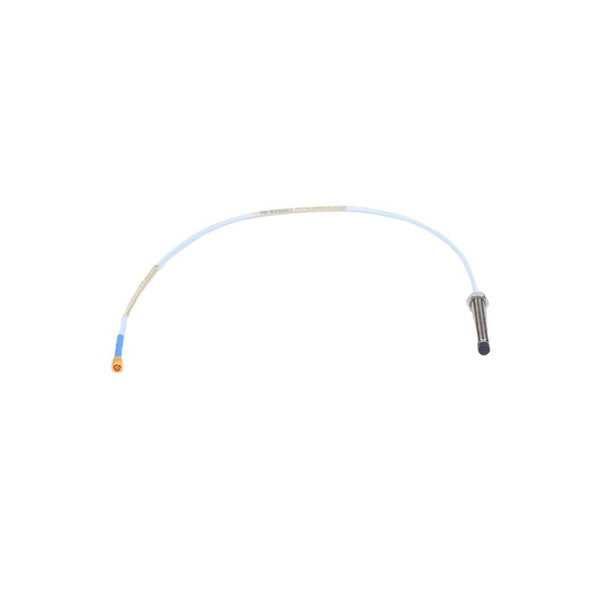

Bently Nevada 330171-00-09-10-02-00 3300 5mm Proximity Probe

The Bently Nevada 330171-00-09-10-02-00 3300 5mm Proximity Probe is a precision industrial sensor designed for measuring the displacement of rotating machinery components with outstanding accuracy. As part of the well-regarded 3300 series, this sensor is built to deliver highly reliable measurements in the most demanding industrial applications. This model features a 5mm sensing range, making it ideal for tight spaces or smaller machinery where precise displacement measurement is essential.

The proximity probe is typically used in machinery condition monitoring systems to track shaft displacement, vibrations, and alignment, making it a crucial tool for predictive maintenance and early failure detection. The sensor’s robust design ensures that it operates in environments subject to high levels of vibration, temperature fluctuations, and other industrial challenges. When integrated into machinery monitoring systems, the Bently Nevada 3300 5mm Proximity Probe helps detect misalignments, imbalances, and other issues before they result in costly downtime or equipment failure.

With its analog output and easy integration, this proximity probe is widely trusted across industries for maintaining the health of critical machinery, including turbines, motors, pumps, and compressors.

Product Parameters

Product Applications

The Bently Nevada 330171-00-09-10-02-00 3300 5mm Proximity Probe is used in a wide array of industrial applications that require precise displacement measurement in rotating machinery. Some of the key applications include:

• Turbine Monitoring: It is essential for monitoring the displacement and condition of turbine shafts, ensuring their smooth operation and detecting early signs of misalignment or wear.

• Compressor Monitoring: Used in compressors, the probe helps detect vibrations and shaft displacement, preventing damage to the system and reducing unplanned downtime.

• Electric Motor Monitoring: The probe is also applied in electric motor monitoring systems to track displacement and vibration, ensuring optimal performance and early detection of issues.

• Pump Systems: It is crucial for monitoring the health of pump shafts, detecting misalignment and vibrations that could lead to failure or reduced efficiency.

• Conveyor Systems: The probe monitors shaft displacement in conveyor systems, ensuring that alignment is maintained and preventing material handling disruptions.

• General Rotating Equipment: The 3300 5mm Proximity Probe is used in a variety of rotating machinery, such as fans, mixers, and blowers, to monitor displacement, vibrations, and alignment.

Advantages of the Product

1. High Precision: The 3300 5mm Proximity Probe offers highly accurate displacement measurements, ensuring that even the slightest misalignment or shaft movement is detected.

2. Compact Design: With a 5mm sensing range and a total length of 1.0 meter, the sensor is designed for tight installation spaces, making it ideal for applications where space is limited.

3. Durability: This probe can withstand harsh environmental conditions, including extreme temperatures ranging from -40°C to +85°C and high levels of vibration and shock.

4. Cost-Effective Predictive Maintenance: The 3300 5mm Proximity Probe helps detect issues early, preventing costly breakdowns and reducing downtime through effective predictive maintenance strategies.

5. Easy Integration: With its 4-20 mA analog output, the probe is easily integrated into existing machinery monitoring systems for real-time monitoring and diagnostics.

6. Versatility: The probe is compatible with a wide range of rotating equipment, including turbines, compressors, pumps, and conveyors, making it a versatile tool for machinery health monitoring.

7. Long Lifespan: Constructed with high-quality materials and precision engineering, the 3300 5mm Proximity Probe offers long-lasting performance with minimal maintenance requirements.

8. Wide Frequency Response: With a frequency response range of up to 50 kHz, the probe captures detailed information about machinery vibrations and displacement, making it suitable for high-performance applications.

9. Enhanced Operational Safety: By providing early warnings of mechanical issues, the probe helps reduce the risk of catastrophic failure, improving safety in industrial operations.

10. Industry Proven: As part of the Bently Nevada 3300 series, the probe is a trusted and proven solution in industries that rely on accurate and reliable machinery condition monitoring.

FAQs

1. What is the sensing range of the Bently Nevada 3300 5mm Proximity Probe?

   • The sensor has a sensing range of 5 mm, ideal for precise measurements in tight installations.

2. What is the total length of the 3300 5mm Proximity Probe?

   • The total length of the probe is 1.0 meter, making it suitable for most industrial machinery setups.

3. What is the power supply requirement for this proximity probe?

   • The probe operates with a DC power supply in the range of 18-30 V.

4. How does the 3300 5mm Proximity Probe help with predictive maintenance?

   • By continuously monitoring shaft displacement and vibrations, the probe helps identify early signs of wear or misalignment, allowing for proactive maintenance and reducing the risk of failures.

5. Can the 3300 5mm Proximity Probe handle high vibration levels?

   • Yes, the probe is designed to withstand vibration levels of up to 50 g (20 to 2000 Hz), ensuring reliable performance in high-vibration environments.

6. What type of output signal does the 3300 5mm Proximity Probe provide?

   • The probe outputs a 4-20 mA analog signal, which can be easily integrated into existing condition monitoring systems.

7. What is the shock resistance of the 3300 5mm Proximity Probe?

   • The probe can withstand shocks up to 100 g (1 ms), making it durable in environments prone to mechanical shocks.

8. What is the operating temperature range of the 3300 5mm Proximity Probe?

   • The probe operates in temperatures ranging from -40°C to +85°C, allowing it to function in extreme environmental conditions.

9. What industries benefit from using the Bently Nevada 3300 5mm Proximity Probe?

   • Industries such as power generation, oil & gas, petrochemical, manufacturing, and more benefit from using this probe for machinery condition monitoring.

10. How does the 3300 5mm Proximity Probe integrate into existing systems?

    • The 3300 5mm Proximity Probe provides a 4-20 mA output, making it easy to integrate into most machinery health monitoring and control systems.
