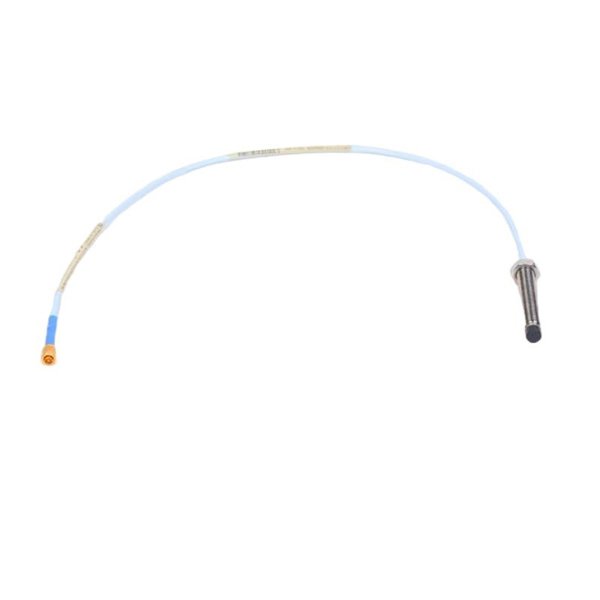

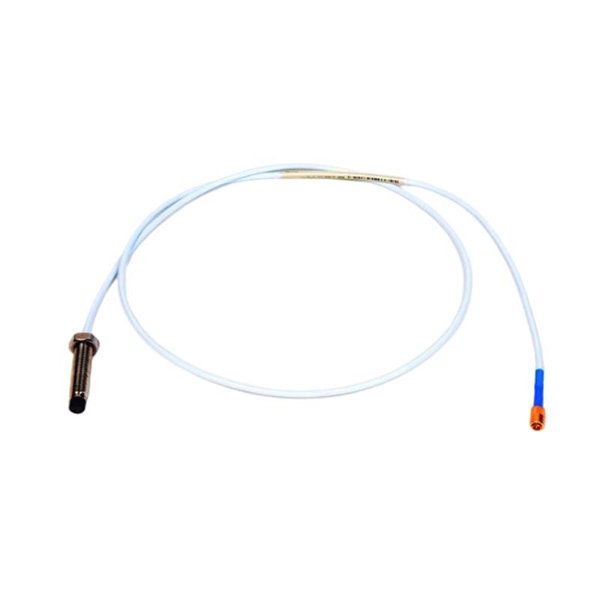

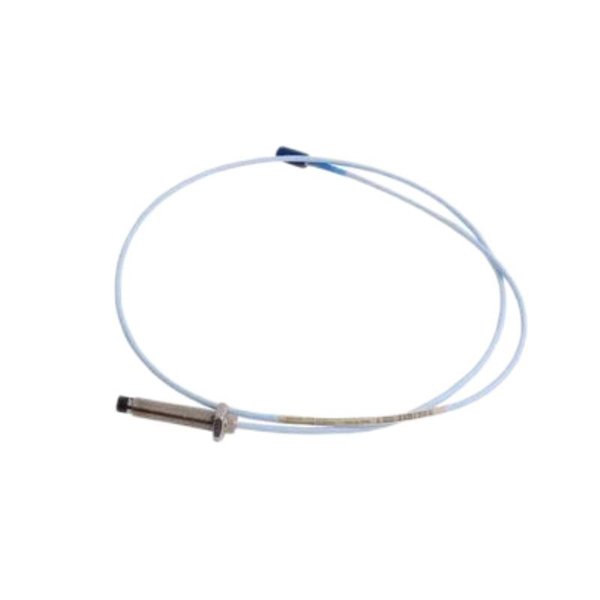

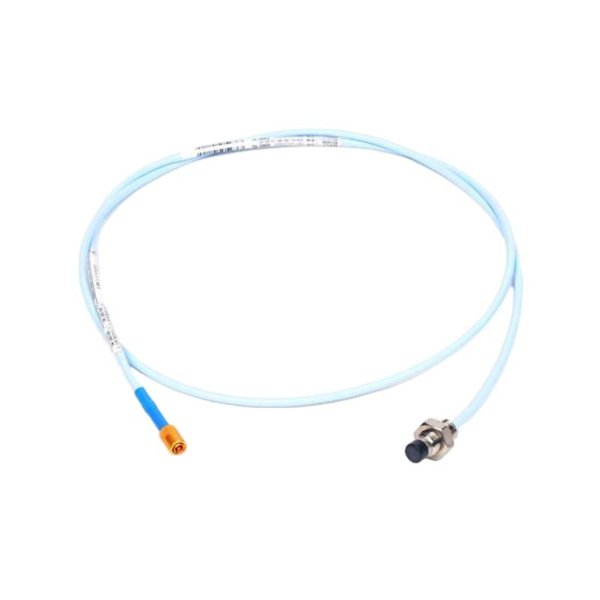

Bently Nevada 330101-00-24-05-02-05 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-24-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision industrial sensor designed for monitoring and measuring the displacement of rotating machinery. Part of the 3300 XL Series, this probe is engineered to offer superior reliability and accuracy in applications where precise vibration and position measurements are essential. The 8 mm probe is especially suited for applications where tight tolerances and high sensitivity are critical.

This 3300 XL Proximity Probe is typically used in industrial applications for monitoring the shaft vibration of large rotating equipment, such as turbines, motors, compressors, and pumps. The probe is highly durable and designed to operate effectively in harsh environments, ensuring that critical machinery is properly monitored and maintained. With its robust construction, it delivers long-term performance, helping to avoid equipment failures and optimize maintenance schedules.

Designed to be integrated with Bently Nevada’s vibration monitoring systems, the 3300 XL 8 mm Proximity Probe provides real-time data that can be used to detect imbalances, misalignments, and other mechanical issues before they lead to catastrophic failures.

Product Parameters

Product Applications

• Rotating Equipment Monitoring:

  The 3300 XL 8 mm Proximity Probe is primarily used to monitor the position and vibration of rotating machinery such as pumps, motors, and turbines. By measuring shaft displacement, it provides early warning signals for misalignment, imbalance, and bearing wear, thereby preventing machinery breakdowns and improving system reliability.

• Vibration Monitoring Systems:

  This probe is an integral part of vibration monitoring systems used in industrial environments. It helps in detecting vibration issues that could lead to operational inefficiencies or equipment damage. It is essential for condition-based monitoring and predictive maintenance in manufacturing, power generation, and other industries that rely on continuous equipment operation.

• Condition Monitoring in Power Plants:

  In power generation plants, where large rotating machinery such as generators and turbines is used, the 3300 XL 8 mm Proximity Probe ensures that the health of these critical components is continuously monitored. It helps detect misalignment or other anomalies early, reducing the risk of unexpected downtime and increasing the plant’s operational efficiency.

• Oil and Gas Industry:

  The probe is highly useful in the oil and gas industry, where equipment such as compressors, gas turbines, and pumps operate in challenging conditions. With its ability to operate in extreme temperatures and harsh environments, it helps to ensure the smooth functioning of crucial machinery used in extraction, transportation, and refining processes.

• Manufacturing and Process Industries:

  The 3300 XL Proximity Probe is widely used in industries such as automotive, chemicals, and food processing to monitor the health of industrial machinery. Regular monitoring can identify mechanical failures at an early stage, preventing production delays and costly repairs.

• Aerospace:

  In aerospace applications, this proximity probe is used for monitoring the health of turbine engines, compressors, and other essential rotating equipment. By providing high-precision data, the probe helps in ensuring the reliability and safety of aerospace machinery.

Product Advantages

• High Precision and Sensitivity:

  The 3300 XL 8 mm Proximity Probe is known for its exceptional accuracy in measuring shaft vibration and displacement. This level of precision ensures that even minor variations in the machine’s condition are detected, which helps in identifying potential failures before they occur.

• Durable Construction:

  Built with a stainless steel housing, the 3300 XL probe is highly resistant to environmental factors such as vibration, corrosion, and temperature extremes. This rugged construction ensures the probe’s longevity, even in demanding industrial environments.

• Wide Temperature Range:

  The 3300 XL 8 mm Proximity Probe operates effectively in a wide temperature range of -40°C to +120°C, making it suitable for use in both very cold and very hot conditions. This versatility allows it to be used across a variety of industries, including those with extreme operating environments.

• Ease of Installation and Integration:

  This proximity probe can easily integrate into existing vibration monitoring systems. Its standard mounting flange ensures that it can be installed quickly and securely on a wide range of machinery types.

• Minimized Downtime:

  The real-time data collected by the 3300 XL 8 mm Proximity Probe is used to detect issues early, such as misalignment or unbalance, reducing the chances of unexpected failures. By enabling predictive maintenance, this probe helps reduce downtime and prevent costly repairs.

• Compatibility with Monitoring Systems:

  The probe is designed to work seamlessly with Bently Nevada’s 3500 Series, offering a complete solution for machinery protection and condition monitoring. Its data output can be easily interpreted through advanced monitoring systems for detailed analysis.

FAQ

1. What is the primary function of the Bently Nevada 3300 XL 8 mm Proximity Probe?

It is used for measuring the displacement and vibration of rotating machinery shafts to monitor machine health and prevent failures.

2. What industries use this probe?

It is used in industries such as power generation, oil and gas, manufacturing, aerospace, and chemical processing.

3. What is the temperature range of the 3300 XL Proximity Probe?

It operates in a temperature range of -40°C to +120°C, making it suitable for both cold and hot environments.

4. How does the probe measure vibration?

The probe uses electromagnetic sensing technology to detect small movements in rotating machinery and provides real-time data on shaft displacement.

5. What is the sensing range of the probe?

The 3300 XL 8 mm Proximity Probe has a sensing range from 1.5 mm to 10 mm, making it suitable for a wide range of machine types.

6. What is the length of the cable?

The standard cable length is 5 meters, though custom lengths are available based on installation requirements.

7. Can the 3300 XL probe be used in harsh environments?

Yes, it is designed to operate in demanding environments, with a robust stainless steel housing and resistance to vibration and temperature extremes.

8. How is the probe mounted?

The probe is mounted using a standard mounting flange, making it easy to install on various types of equipment.

9. Is the 3300 XL probe compatible with other Bently Nevada systems?

Yes, it integrates seamlessly with Bently Nevada’s 3500 Series machinery protection and monitoring systems.

10. What is the weight of the 3300 XL probe?

The probe weighs 0.162 kg, making it lightweight and easy to handle during installation.
