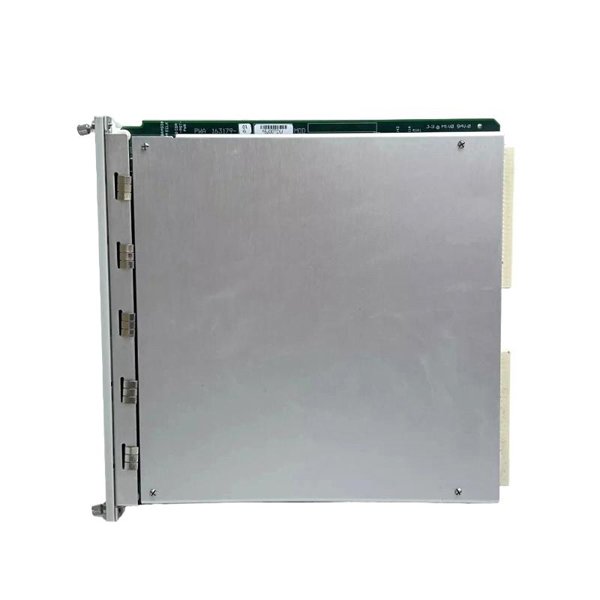

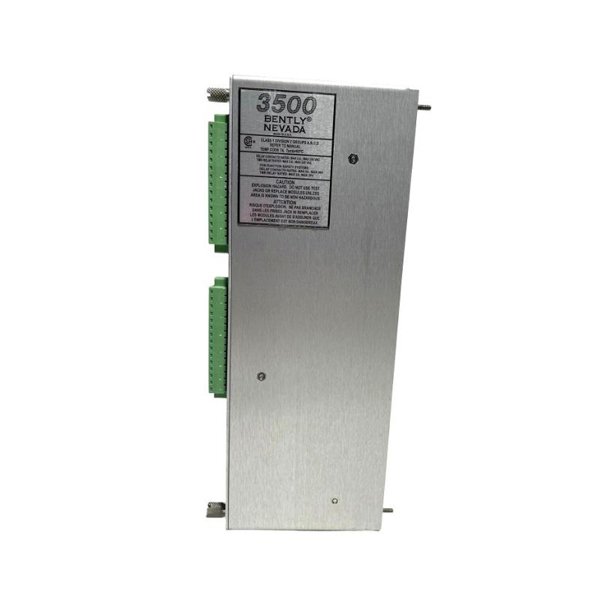

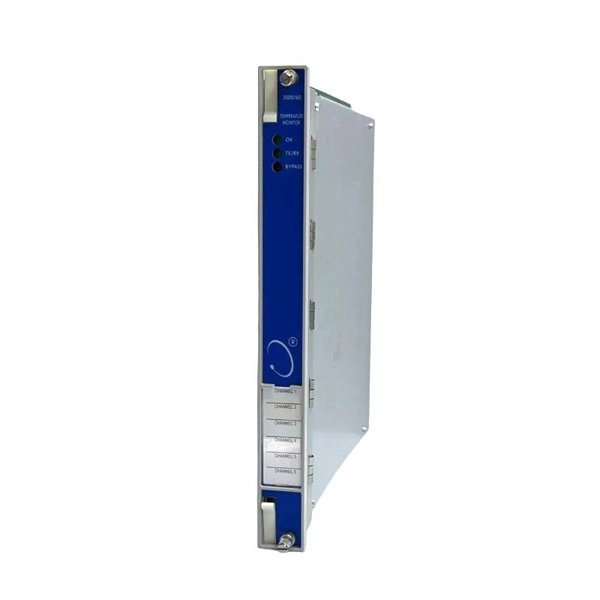

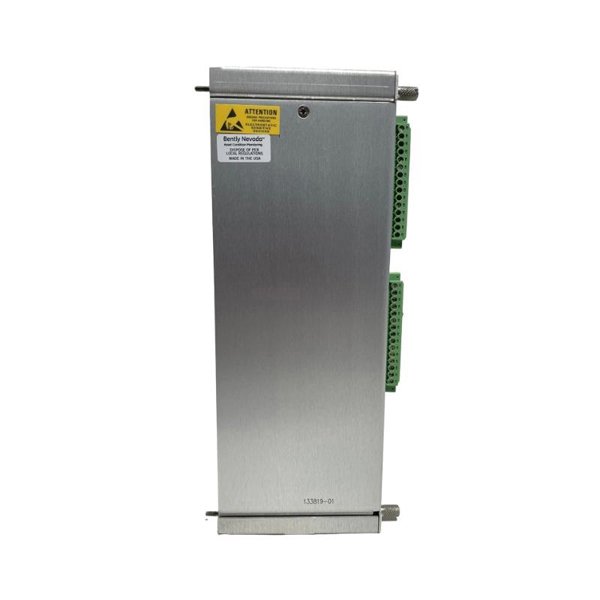

Bently Nevada 3500/60 163179-01+133819-01 Temperature Monitor

The Bently Nevada 3500/60 163179-01 + 133819-01 Temperature Monitor is an advanced monitoring solution within the renowned 3500 Machinery Protection System, designed for precise and reliable temperature measurement in critical rotating machinery. The 163179-01 monitor is paired with the 133819-01 I/O module, providing robust data acquisition, electrical isolation, and safe integration into industrial monitoring architectures.

This combination is optimized for use with RTD and thermocouple sensors, delivering accurate real-time temperature data across multiple channels. Unlike versions equipped with intrinsic safety barriers, the 133819-01 I/O module is designed for general-purpose applications where hazardous-area compliance is not required, offering a simplified and cost-effective solution for many industries.

With its modular design, built-in diagnostics, and seamless integration into the Bently Nevada 3500 rack system, this temperature monitor is ideal for critical equipment such as turbines, compressors, pumps, and generators.

Product Specifications

Product Applications

The 3500/60 163179-01 + 133819-01 is widely used across industries where temperature measurement and protection are essential. Primary applications include:

• Turbomachinery – Gas turbines, steam turbines, and hydro turbines.

• Compressors – Ensuring reliable operation and preventing overheating.

• Generators – Stator winding, bearing, and core temperature monitoring.

• Motors and Pumps – Continuous thermal monitoring for predictive maintenance.

• Industrial Processing Plants – Refineries, petrochemical plants, and LNG facilities.

• Power Generation – Fossil, hydro, and renewable energy facilities.

Product Advantages

• High Channel Density: Supports up to 12 channels of RTD or thermocouple inputs per module.

• Versatility: Compatible with multiple RTD and thermocouple sensor types.

• Real-Time Protection: Fast sampling rate ensures timely fault detection.

• Simplified Installation: Internal terminations make wiring straightforward.

• System Compatibility: Fully integrates into the Bently Nevada 3500 rack environment.

• Built-In Diagnostics: Continuously checks sensor and channel health.

• Robust Performance: Reliable operation in demanding industrial environments.

• Cost-Effective: Provides a high level of functionality without intrinsic safety barriers when not required.

FAQ

1. How many input channels does the 3500/60 163179-01 support with the 133819-01 I/O module?

   It supports up to 12 temperature input channels.

2. What sensor types can be connected to this module?

   Both RTDs (2-wire, 3-wire, 4-wire) and thermocouples (J, K, E, T, B, R, S, N).

3. Does the module provide electrical isolation?

   Yes, it provides galvanic isolation between input wiring and electronics.

4. Is this configuration intended for hazardous area installations?

   No, the 133819-01 I/O module is designed for general-purpose, non-hazardous areas.

5. How are the terminations handled on the 133819-01 module?

   The module uses internal screw-type terminal blocks.

6. Can it monitor mixed sensor types across different channels?

   Yes, RTD and thermocouple channels can be configured independently.

7. Does it support redundancy?

   Yes, it can be configured for redundant operation within the 3500 rack.

8. How does the system handle sensor faults?

   Faults such as open or short circuits are detected, and alarms are generated.

9. Is the module hot-swappable?

   Yes, it can be replaced without shutting down the rack.

10. Can the data from this monitor be integrated into System 1 software?

    Yes, the data can be transmitted to System 1 for analysis and condition monitoring.
