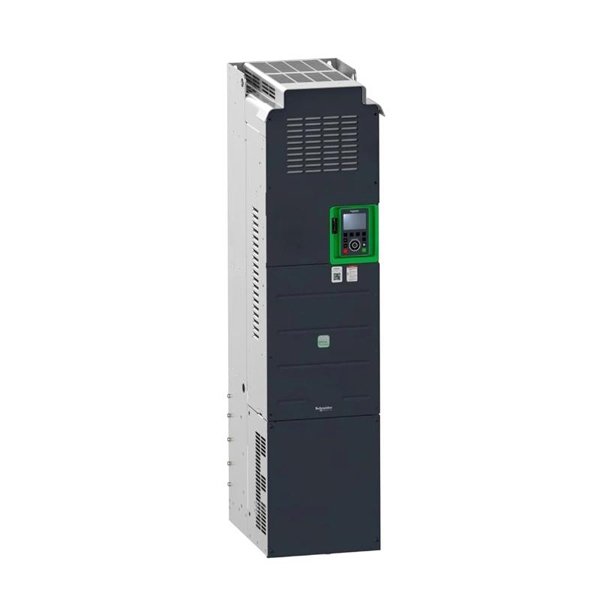

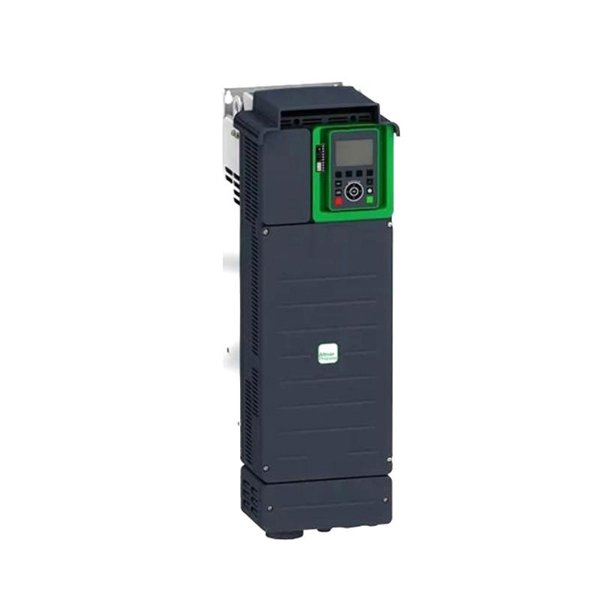

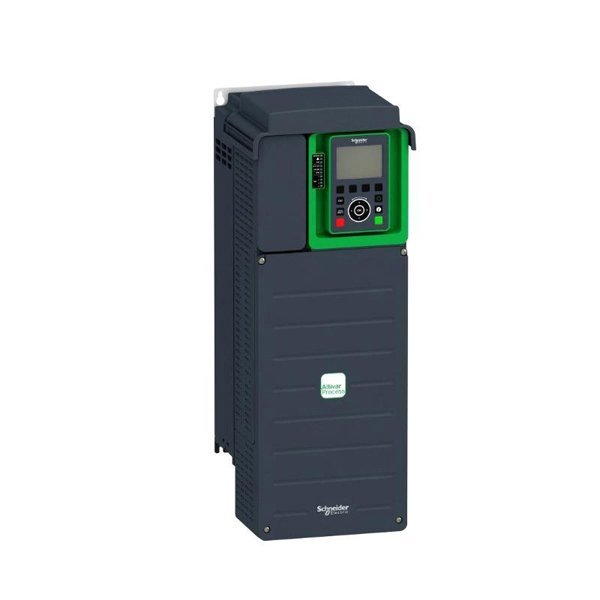

Schneider ATV930C13N4 Variable Speed Drive

The Schneider Electric ATV930C13N4 is a high-performance variable speed drive (VSD) designed for demanding industrial applications. It is part of the Altivar Process ATV900 series, which is known for its robust performance, energy efficiency, and smart connectivity features. Engineered to control asynchronous and permanent magnet motors, this model provides precise motor control in complex environments. It offers a wide range of communication options and is tailored to meet the requirements of heavy-duty sectors such as oil & gas, water & wastewater, mining, and general industrial machinery.

Whether it’s regulating a pump, fan, or conveyor system, the ATV930C13N4 ensures operational excellence, reducing downtime, and increasing productivity.

Product Specifications

Applications

The Schneider ATV930C13N4 is suitable for a broad range of industrial and infrastructure applications, particularly where precise motor speed control and system integration are essential:

• Pumps and Compressors

  Maintains flow and pressure with dynamic motor control and energy-saving performance.

• Fans and HVAC Systems

  Improves energy efficiency in ventilation and air circulation systems.

• Conveyors and Material Handling

  Ensures smooth acceleration/deceleration and minimizes mechanical stress.

• Water and Wastewater Treatment

  Integrates easily with SCADA systems and supports operational continuity.

• Heavy-duty Machinery in Mining and Oil & Gas

  Designed to withstand harsh environments with enhanced thermal protection and diagnostics.

Advantages

• High Performance Motor Control

  Supports both asynchronous and synchronous motor types with advanced vector control algorithms.

• Energy Efficiency

  Designed to reduce energy consumption with eco-mode, automatic motor adaptation, and energy dashboards.

• Robust Design

  Operates in challenging environments thanks to conformal coating, wide temperature tolerance, and durable construction.

• Connectivity and Integration

  Built-in Ethernet, Modbus, CANopen, and other protocol support make integration seamless with modern industrial networks.

• Diagnostic and Predictive Maintenance

  Embedded functions for early detection of system faults reduce downtime and maintenance costs.

• Modular and Scalable

  Flexible design with replaceable modules (e.g., fans, control boards) facilitates easy maintenance and upgrades.

Frequently Asked Questions (FAQ)

1. What is the maximum motor power the ATV930C13N4 can handle?

   It supports motors up to 132 kW at 400V.

2. Is the drive compatible with permanent magnet motors?

   Yes, it supports both asynchronous and permanent magnet motors.

3. Can this drive be used in outdoor environments?

   It requires enclosure protection (IP54 or cabinet) for outdoor use, as its standard rating is IP21.

4. What communication protocols are supported?

   Ethernet, Modbus TCP, Modbus RTU, and CANopen are supported out of the box.

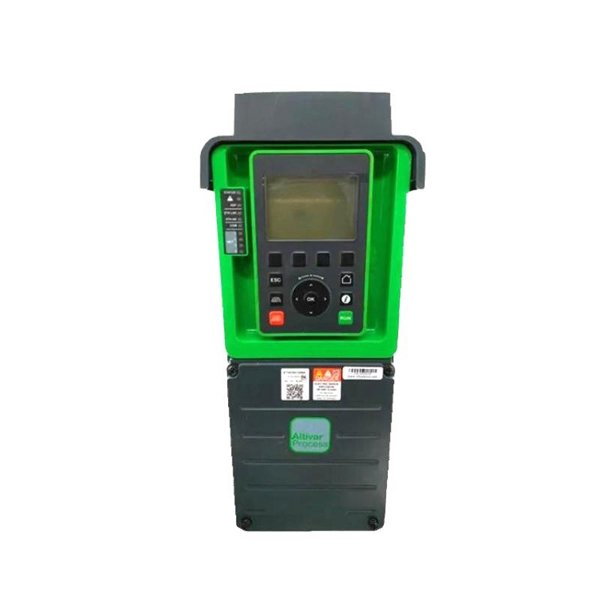

5. Does it come with a display panel?

   Yes, it includes a detachable graphical keypad with customizable interface.

6. Can it handle heavy-duty applications?

   Absolutely. It has a 150% overload capacity for 60 seconds, making it ideal for heavy-duty operations.

7. How does it help reduce energy consumption?

   Features like energy monitoring, variable torque mode, and automatic motor tuning help optimize energy use.

8. What are the maintenance features?

   Predictive maintenance alerts, event logging, and modular design reduce unplanned downtime.

9. Can I monitor and control it remotely?

   Yes, remote access is possible via Ethernet and integrated web server tools.

10. Is this product certified for global use?

    Yes, it is compliant with CE, UL, CSA, and RoHS standards.
