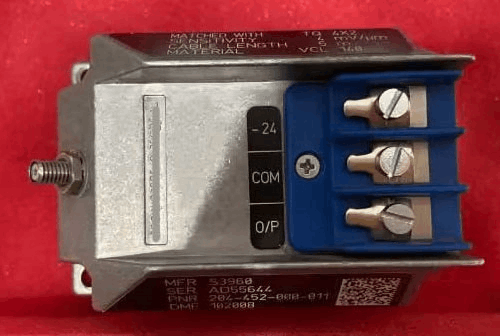

Vibro-Meter IQS452 204-452-000-211 Proximity Measurement System Signal Conditioner
Item Number:IQS452 204-452-000-211
Brand:Vibro-Meter
Lead Time: In stock
Description:Proximity Measurement System Signal Conditioner
Payment: T/T
Product Description
The IQS452 204-452-000-211 is a signal conditioner for proximity measurement systems, used in industrial automation and smart manufacturing. Its key role is to improve the signal quality of proximity sensors and support a variety of input signal formats.
It has an HF modulator/demodulator that generates the drive signal for the sensor, which produces the electromagnetic field used to measure the gap to the target object. The same modulator/demodulator also ensures accurate gap measurement by analyzing the changes in the electromagnetic field when an object approaches.
Fuctions & Features
- Drive Signal Generation: The IQS452 204-452-000-211 conditioner contains an HF (high frequency) modulator/demodulator that generates the drive signal for the sensor. This signal generates an electromagnetic field that is used to measure the gap between the sensor and the target object.
- Gap Measurement: The HF modulator/demodulator in the IQS452 204-452-000-211 ensures accurate measurement of the gap by analyzing the changes in the electromagnetic field caused by the approach of the target object.

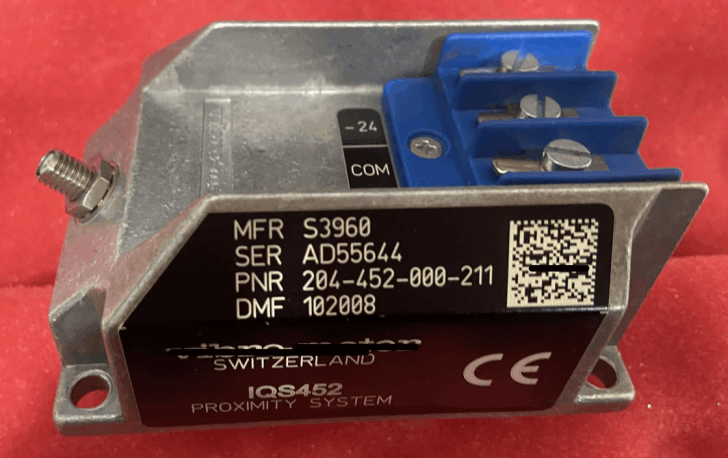

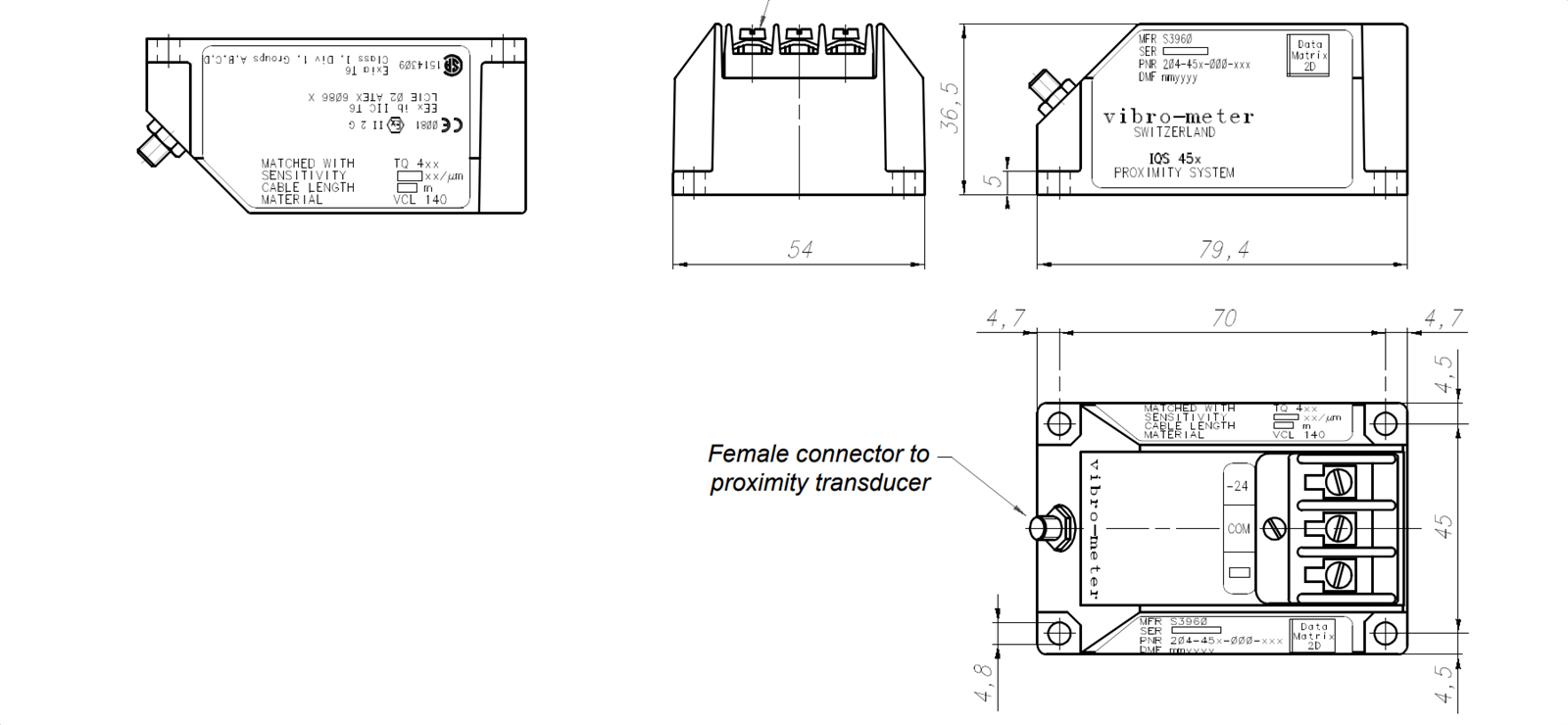

- Aluminum Extruded Housing: The IQS452 204-452-000-211 conditioner circuit is mounted in an aluminum extruded housing that provides mechanical protection and effective heat dissipation.
Specification
| Parameter | Value |
|---|---|
| Voltage Output (3-Wire) | |
| - Voltage at Min. GAP | -2.4 V |
| - Voltage at Max. GAP | -18.4 V |
| - Dynamic Range | 16 V |
| - Output Impedance | 500 Ω |
| - Short-Circuit Current | 45 mA |
| Current Output (2-Wire) | |
| - Current at Min. GAP | 15.75 mA |
| - Current at Max. GAP | 20.75 mA |
| - Dynamic Range | 5 mA |
| Output Capacitance | 1 nF |
| Output Inductance | 100 μH |
| Supply Voltage | -20 V to -32 V |
| Supply Current | 13 ± 1 mA (25 mA max.) |
| Supply Input Capacitance | 1 nF |
| Supply Input Inductance | Not specified |
