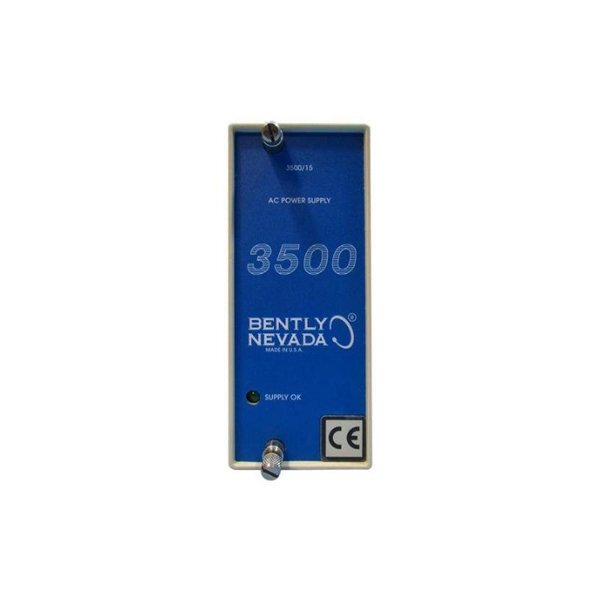

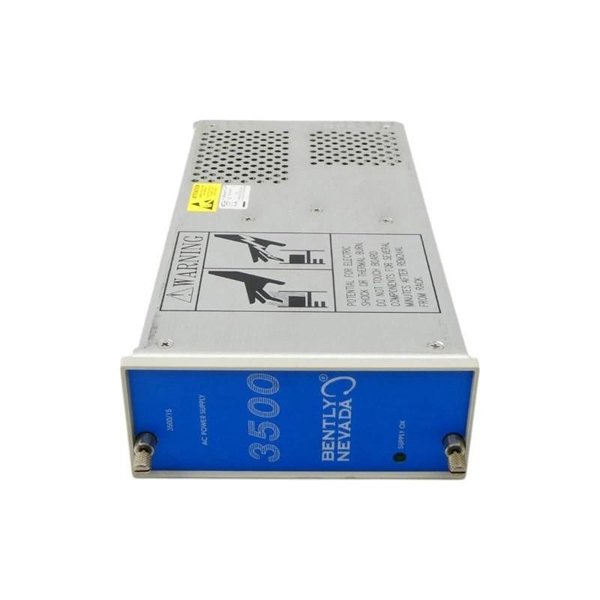

Bently Nevada 3500/15-05-00-05 Power Supply Module

The Bently Nevada 3500/15-05-00-05 power supply module is designed to provide high-performance, reliable, and continuous power to the 3500 Series condition monitoring systems. This module ensures the stable operation of critical monitoring equipment, which is essential in industries that demand continuous performance, such as power generation, oil & gas, chemical processing, and heavy manufacturing.

Engineered to operate efficiently in harsh environments, the 3500/15-05-00-05 power supply module offers exceptional durability and reliability. The design of this power supply module addresses the need for robust power delivery systems, ensuring that monitoring systems continue to function without interruption, even in the most demanding conditions.

The 3500/15-05-00-05 is built to support the 3500 Series condition monitoring systems, helping to optimize the safety, performance, and lifespan of machinery by ensuring constant, uninterrupted power. It provides the accuracy and stability necessary for efficient system performance, which in turn minimizes downtime, operational disruptions, and costly maintenance.

Technical Parameters

Applications

The 3500/15-05-00-05 power supply module is essential for a variety of applications across multiple industries where the performance and reliability of monitoring systems are critical. Some of its primary applications include:

• Power Generation: Ensures the uninterrupted operation of power plants by supplying stable power to monitoring systems that oversee turbines, generators, and critical electrical equipment. It plays a key role in preventing outages and optimizing plant efficiency.

• Oil & Gas: In remote and challenging environments such as offshore rigs, refineries, and pipelines, this power supply module guarantees reliable power to monitoring equipment, helping to prevent operational disruptions that could lead to expensive downtimes or safety hazards.

• Chemical Processing: In chemical plants where precise control and monitoring are necessary for the safe operation of production processes, the 3500/15-05-00-05 ensures that systems remain operational and can monitor critical parameters like temperature, pressure, and flow.

• Heavy Manufacturing: This power supply module supports essential equipment in large manufacturing operations, ensuring that automated systems and machinery are continuously monitored, reducing unplanned downtime and optimizing production processes.

Advantages

1. High Reliability: The 3500/15-05-00-05 power supply module features an impressive MTBF of 200,000 hours, meaning it is designed to operate reliably for long periods with minimal risk of failure.

2. Wide Voltage Range: With an input voltage range of 85–264 VAC, the module can handle different global electrical systems, ensuring flexibility and compatibility with a wide range of industrial environments.

3. Compact Design: The module has dimensions of 120.7 x 50.8 x 251.5 mm and weighs only 1.39 kg, making it ideal for installation in tight spaces without compromising its operational efficiency.

4. Energy Efficiency: The module consumes only 90 W of power, providing an energy-efficient solution that reduces operational costs while ensuring that critical systems receive uninterrupted power.

5. Durability in Harsh Environments: It can operate effectively in temperatures ranging from 0°C to +70°C and can withstand humidity levels from 5% to 95% (non-condensing), ensuring reliable performance in diverse environmental conditions.

6. Safety Features: The module is designed with built-in protection against overvoltage, overcurrent, and short circuits, ensuring the safety of both the module and connected equipment.

FAQ

Q1: What is the input voltage range for the Bently Nevada 3500/15-05-00-05 power supply module?

A1: The input voltage range for this module is 85–264 VAC, 50/60 Hz, making it adaptable to a wide range of global power systems.

Q2: What output voltage does the module provide?

A2: The module delivers a stable 24 VDC output voltage with an accuracy of ± 1%, ensuring reliable power for connected devices.

Q3: How much current can the 3500/15-05-00-05 module supply?

A3: The module can provide up to 3.5 A of output current, which is sufficient for powering multiple devices within the monitoring system.

Q4: What are the physical dimensions of this power supply module?

A4: The 3500/15-05-00-05 module has compact dimensions of 120.7 x 50.8 x 251.5 mm, which allows for easy integration into confined spaces.

Q5: How much does the 3500/15-05-00-05 module weigh?

A5: The module weighs 1.39 kg, making it lightweight and easy to handle during installation.

Q6: What is the operating temperature range for this power supply module?

A6: The module operates within a temperature range of 0°C to +70°C, making it suitable for use in a variety of industrial environments.

Q7: What is the relative humidity tolerance of this power supply module?

A7: The 3500/15-05-00-05 module can operate in environments with relative humidity ranging from 5% to 95% (non-condensing).

Q8: What is the MTBF (Mean Time Between Failures) of this module?

A8: The MTBF of the 3500/15-05-00-05 module is 200,000 hours, which signifies its reliability and long-term durability.

Q9: Can this power supply module be used in hazardous environments?

A9: While the module is built for robustness, it is not specifically rated for hazardous locations. You should assess the environment and ensure it meets safety requirements for hazardous areas.

Q10: How much power does the 3500/15-05-00-05 module consume?

A10: The power consumption of this module is 90 W, providing efficient energy usage while ensuring stable performance.
