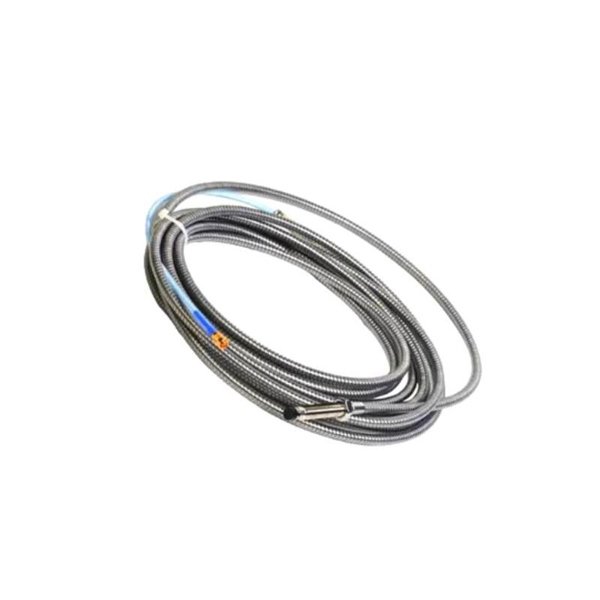

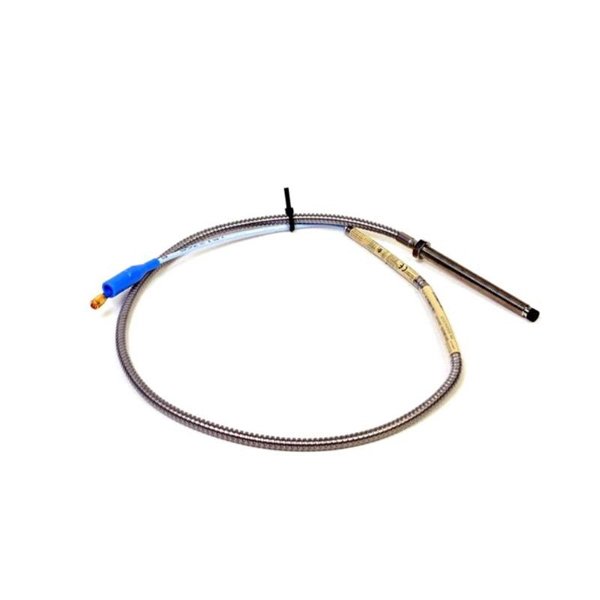

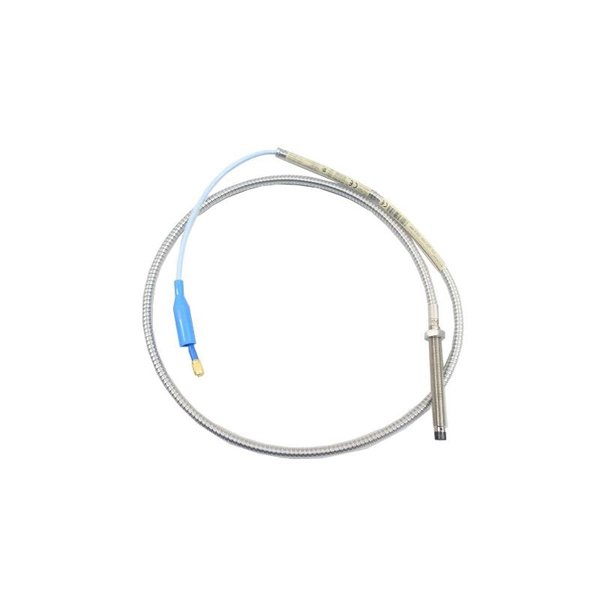

Bently Nevada 330102-00-16-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330102-00-16-10-02-00 is a high-precision 8mm proximity probe designed as part of the trusted 3300 XL series. Developed by Bently Nevada, a GE company, this probe is integral to advanced machinery monitoring and protection systems. It is engineered for non-contact measurement of shaft vibration and position, and is widely used in high-value rotating machinery such as turbines, compressors, pumps, and motors.

This model is designed with a 1.0 meter total length, and a standard 8mm tip, suitable for various industrial configurations. Known for its robust performance, this probe meets API 670 standards and offers superior electromagnetic interference resistance, thermal stability, and long-term reliability, making it a core component in condition monitoring applications.

Product Specifications

Product Applications

The Bently Nevada 330102-00-16-10-02-00 is employed in a wide range of critical machinery for predictive maintenance, failure prevention, and real-time diagnostics, including:

• Steam and Gas Turbines

  To measure shaft vibration and axial thrust in rotating systems.

• Centrifugal Compressors

  For vibration detection and continuous monitoring of bearing conditions.

• Industrial Pumps

  Preventive diagnostics to avoid cavitation and imbalance failures.

• Electric Motors & Generators

  Monitoring radial and axial movement for protection and optimization.

• Gearboxes and Expanders

  Ensures alignment accuracy and early fault detection.

• Petrochemical and Power Plants

  Critical for machinery shutdown logic under API 670 compliance systems.

Product Advantages

• API 670 Compliance

  Fully conforms to the internationally recognized machinery protection standard.

• High Sensitivity and Accuracy

  Offers precise readings, with 200 mV/mil sensitivity and excellent linearity.

• Robust Environmental Tolerance

  Withstands high temperatures, humidity, shock, and vibration.

• Modular Component Design

  Probe, extension cable, and proximitor can be independently replaced.

• Superior EMI/RFI Immunity

  Designed to perform reliably in electrically noisy industrial environments.

• Long-Term Field Proven Reliability

  Trusted for use in harsh environments like offshore rigs and refineries.

• Wide Compatibility

  Interoperable with other 3300 XL components and Bently Nevada systems.

Frequently Asked Questions (FAQ)

1. Q: What does the “330102-00-16-10-02-00” model code stand for?

   A: It defines the probe system 1.0 meter total length, thread type, and connector specification.

2. Q: Is this probe compatible with all 3300 XL proximitor sensors?

   A: Yes, it is designed specifically for compatibility with 3300 XL proximitor modules.

3. Q: Can this probe be used in hazardous environments?

   A: Yes, when paired with certified proximitor sensors and appropriate barriers.

4. Q: How should the probe be mounted?

   A: It can be mounted using a 3/8-24 UNF threaded port or bracket with locking hardware.

5. Q: What is the output range of the probe signal?

   A: 0 to -22 VDC, which correlates with the distance to the target.

6. Q: Is the cable armored?

   A: No, but armored versions are available upon request.

7. Q: What is the tip diameter of this probe?

   A: It has an 8 mm diameter sensing tip.

8. Q: What type of materials can it detect?

   A: It is calibrated for AISI 4140 steel but can work with other metals (re-calibration may be required).

9. Q: What is the linear sensing range?

   A: 0.25 mm to 2.00 mm of linear, accurate output.

10. Q: Can I extend the system length beyond 16 ft?

    A: The total system length is fixed; however, different models are available with alternative lengths.
