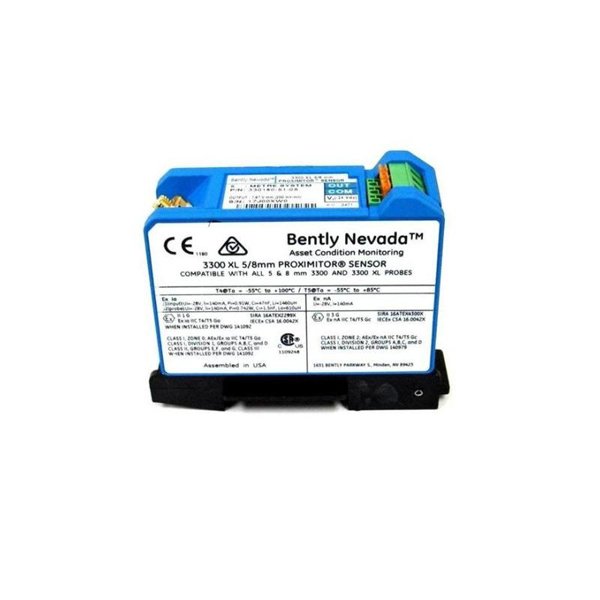

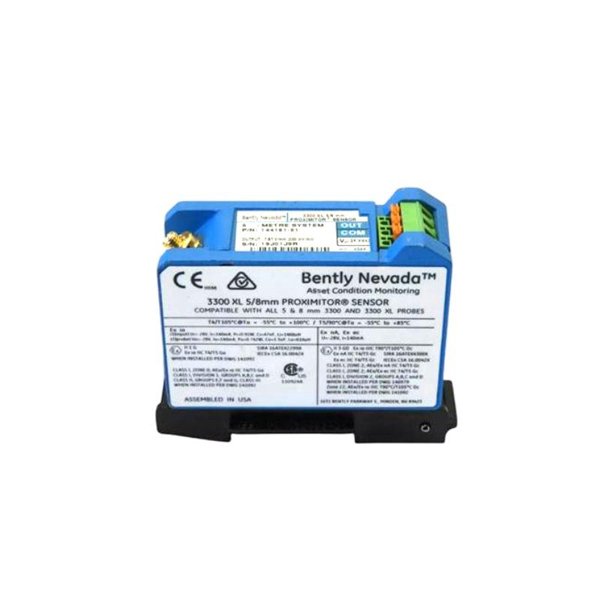

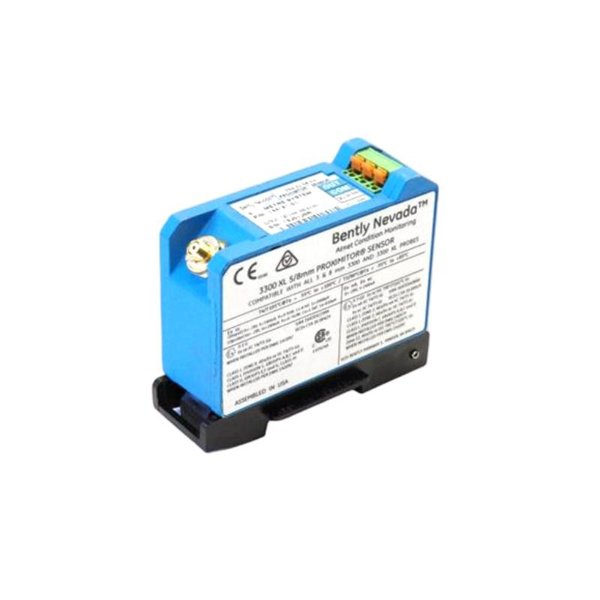

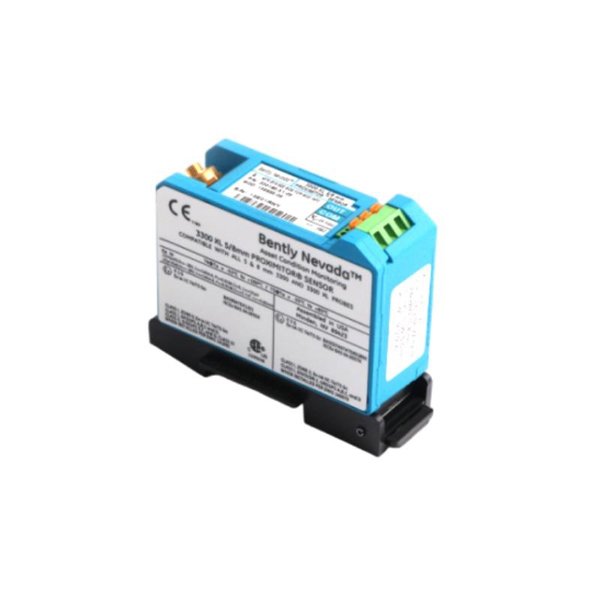

Bently Nevada 330180-X1-05 143416-48 3300 XL 8mm Proximity Sensor

The Bently Nevada 330180-X1-05 143416-48 3300 XL 8mm Proximity Sensor is an advanced sensor designed for rotating machinery condition monitoring. A part of the 3300 XL series, this sensor offers a precise and durable solution for capturing critical measurements in industrial equipment. Whether it is monitoring motors, pumps, compressors, or turbines, the 3300 XL sensor provides real-time displacement and vibration measurements, allowing operators to track the health of equipment and prevent unexpected failures.

This sensor operates on non-contact proximity technology, providing 8mm measurement range with high precision. The compact design (81.3 × 35.1 × 63.5 mm) and lightweight (0.246 kg) make it an excellent choice for integration in tight spaces without sacrificing performance. With IP67 protection, it is designed to withstand harsh industrial environments, making it ideal for deployment in applications exposed to dust, water, and other tough conditions.

The 3300 XL 8mm Proximity Sensor is an essential component for industries requiring predictive maintenance, vibration monitoring, and asset health management. Its extended temperature range of -40°C to +85°C makes it versatile, operating efficiently across diverse environmental conditions.

Product Parameters

Product Applications

1. Rotating Machinery Monitoring: The 3300 XL 8mm Proximity Sensor is a crucial component in the monitoring of rotating machinery. Its accurate measurements of displacement and vibration help detect early signs of misalignment, imbalance, and bearing failures, reducing the risk of catastrophic equipment failure.

2. Predictive Maintenance: With its precise and continuous data collection capabilities, the 3300 XL sensor plays a significant role in predictive maintenance systems. It enables the early detection of anomalies in machinery, allowing maintenance teams to plan repairs or replacements before breakdowns occur, ultimately reducing unplanned downtime.

3. Condition Monitoring: This sensor is an essential part of condition monitoring systems used in various industries like oil and gas, power generation, and heavy manufacturing. It allows real-time monitoring of critical assets such as turbines and compressors, improving asset reliability and performance.

4. Power Generation Industry: The 3300 XL 8mm Proximity Sensor is widely used in power generation plants, where it is responsible for monitoring the health of generators and turbines. Its ability to detect vibrations and displacement allows plant operators to take corrective actions before costly repairs are needed.

Product Advantages

1. Non-Contact Sensing: Utilizing non-contact proximity sensing technology, this sensor eliminates the risk of physical wear on both the sensor and the monitored machinery, leading to extended sensor life and reduced maintenance costs.

2. Durability in Harsh Environments: The IP67 protection rating ensures the sensor is dustproof and water-resistant, making it suitable for use in harsh and challenging environments such as oil and gas facilities, mining operations, and manufacturing plants.

3. High Precision and Reliability: The 8mm range provides high-precision displacement and vibration measurements. This ensures accurate detection of even the smallest deviations, making it reliable for monitoring the health of critical machinery over time.

4. Compact and Space-Efficient Design: With its compact size of 81.3 × 35.1 × 63.5 mm and lightweight of 0.246 kg, the sensor can be easily integrated into machines with limited available space. Its direct mounting feature simplifies installation.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The sensor has an 8mm measurement range, making it suitable for precise displacement detection.

2. What are the dimensions of the Bently Nevada 3300 XL 8mm Proximity Sensor?

   • The dimensions are 81.3 × 35.1 × 63.5 mm.

3. How much does the Bently Nevada 3300 XL 8mm Proximity Sensor weigh?

   • The sensor weighs 0.246 kg, making it lightweight and easy to handle.

4. What is the output type of this sensor?

   • The sensor provides a DC voltage output, suitable for direct integration into control systems.

5. What is the operating temperature range of the sensor?

   • The sensor operates within a temperature range of -40°C to +85°C, allowing it to be used in a variety of industrial environments.

6. Can the Bently Nevada 3300 XL 8mm Proximity Sensor be used in hazardous locations?

   • Yes, with its IP67 protection rating, it is dustproof and water-resistant, making it ideal for use in harsh and hazardous locations.

7. How is the sensor mounted?

   • The 3300 XL 8mm Proximity Sensor is designed for direct mounting, which simplifies installation and maintenance.

8. What industries benefit from using this sensor?

   • Industries such as oil & gas, power generation, automotive, and manufacturing all benefit from the sensor’s ability to provide real-time monitoring of rotating machinery.

9. What type of machinery is the Bently Nevada 3300 XL 8mm Proximity Sensor used to monitor?

   • The sensor is used to monitor rotating machinery like motors, pumps, compressors, and turbines.

10. What is the main advantage of the non-contact technology in this sensor?

    • The non-contact technology prevents physical wear, extending the sensor’s lifespan and improving the reliability of measurements over time.
