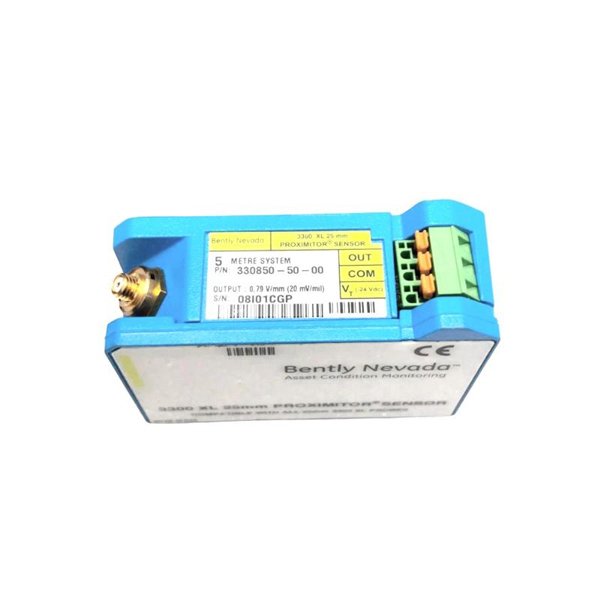

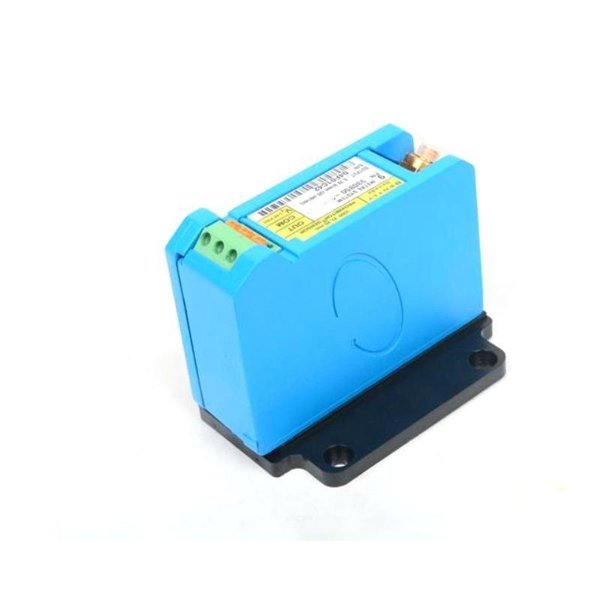

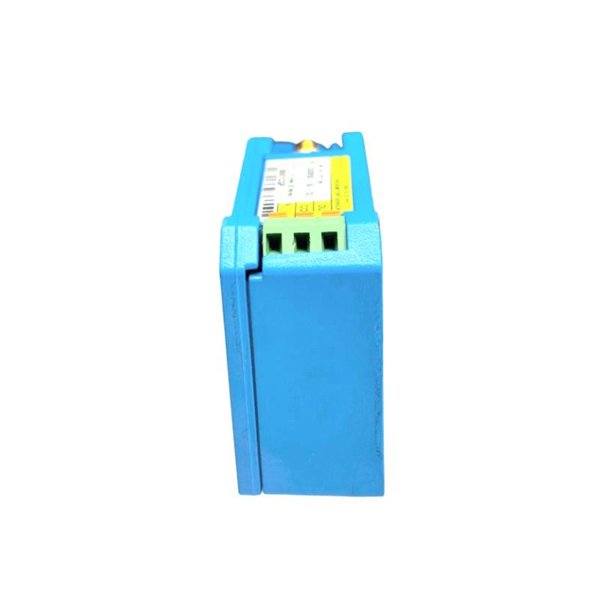

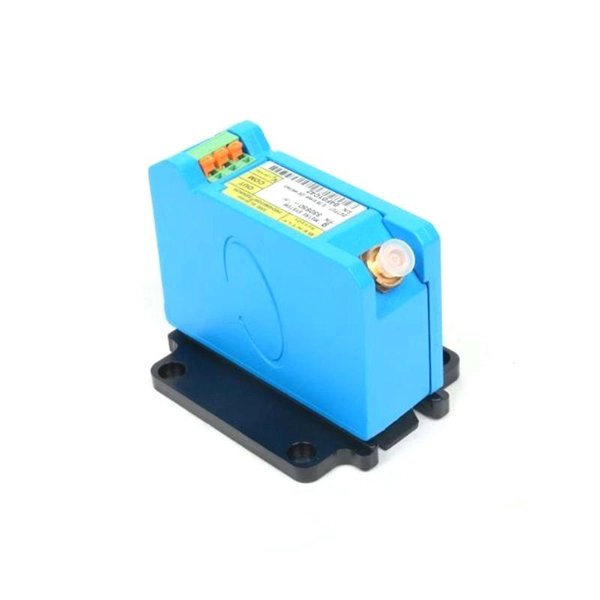

Bently Nevada 330850-50-00 3300 XL 25 mm Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330850-50-00
Product Type:3300 XL 25 mm Proximitor Sensor
Origin:USA
Total Length:5.0 meters
Weight:0.255kg
Views:46
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330850-50-00 is a Proximitor Sensor from the 3300 XL 25 mm Proximity Transducer System. It is designed for precise differential expansion (DE) measurement on steam turbine generators. With a 0.787 V/mm (20 mV/mil) output and a 12.7 mm linear range, it ensures accurate monitoring of axial rotor movement relative to the stator casing.
Product Applications
-
Monitoring differential expansion in steam turbines
-
Measuring shaft movement in turbine generators
-
Used in harsh industrial environments requiring high reliability
-
Ideal for large rotating equipment in power generation and petrochemical sectors
Product Advantages
-
Extended linear range up to 12.7 mm (500 mils)
-
High temperature tolerance up to 200 °C continuous and 250 °C short-term
-
Enhanced EMI/RFI immunity ensures stable operation in noisy environments
-
Field replaceable components for simplified maintenance
-
CE, ATEX, CSA compliant for global use in hazardous areas
-
Backward compatibility with 7200 Series systems
Technical Specifications
| Parameter | Description |
|---|---|
| System Type | Proximity Transducer System |
| Sensor Output | 0.787 V/mm (20 mV/mil) |
| Linear Range | 12.7 mm (500 mils) |
| Recommended Target Size | ≥ 61 mm (2.4 in) diameter |
| Frequency Response | 0 to 2.7 kHz (+0, -3 dB) |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Operating Temperature (Probe) | -35°C to +200°C |
| Short-term Max Temp (Probe) | +250°C |
| Operating Temp (Sensor) | -51°C to +100°C |
| Sensor Material | A380 Aluminum |
| Probe Material | AISI 304 Stainless Steel |
| Cable Material | PFA-insulated FluidLoc, 75 Ω triaxial |
| Total System Length | 5.0 meters |
| Total Weight | Approx. 0.255 kg |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330850-50-00 Proximitor Sensor?
A1: It measures differential expansion in turbine generators by detecting axial movement between rotor and stator.
Q2: Is this sensor compatible with older Bently Nevada systems?
A2: Yes, it replaces 7200 Series 25 mm and 35 mm systems with no monitor changes needed.
Q3: What type of environments is it suited for?
A3: It is built for high-temperature, high-vibration environments in power plants and industrial machinery.
Q4: What is the output signal of this sensor?
A4: 0.787 V/mm or 20 mV/mil, with a linear range up to 12.7 mm.
Q5: Can it operate in hazardous locations?
A5: Yes, it is CSA, ATEX, and IECEx certified for hazardous area use.
Q6: What material is used for the probe tip?
A6: The tip is made from PEEK (Polyetheretherketone), a durable high-performance polymer.
Q7: How is it installed?
A7: It can be DIN-rail or panel-mounted and includes mounting accessories like the sliding bracket.
Q8: What is the recommended minimum target size?
A8: 61 mm (2.4 inches) diameter for optimal accuracy.
Q9: Can the probe and extension cable be armored?
A9: Yes, stainless steel armor is available as an option.
Q10: Is special wiring required?
A10: Shielded triad cables are recommended for field wiring, up to 305 m in length.
