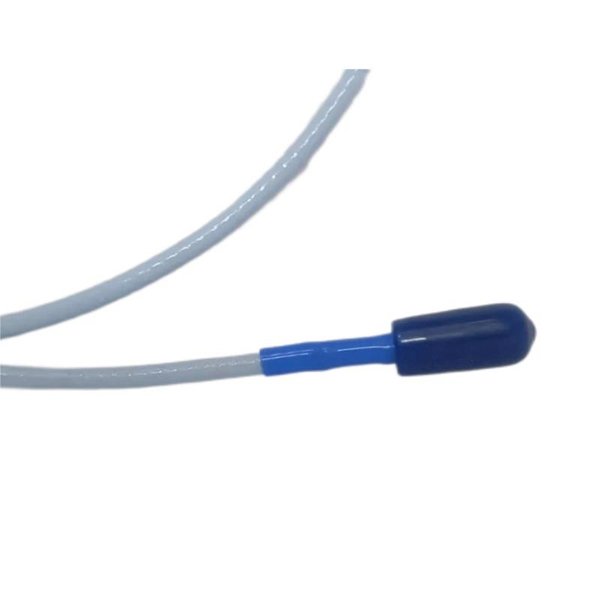

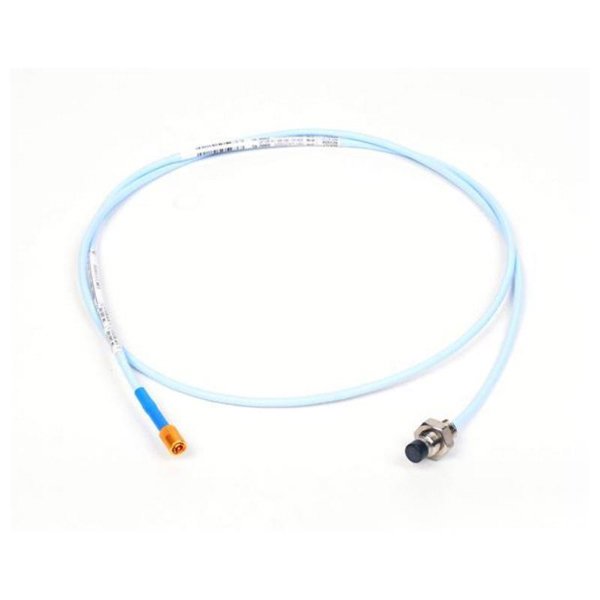

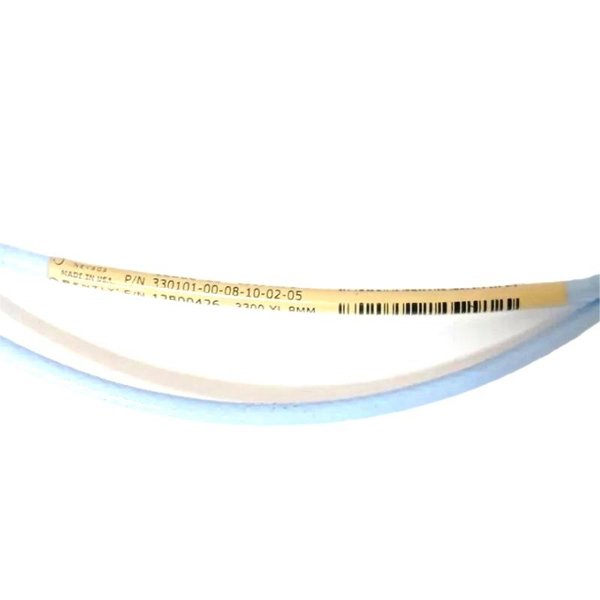

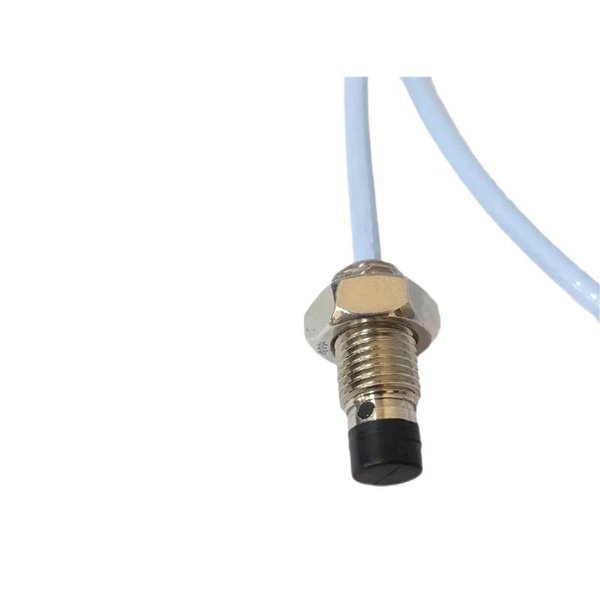

Bently Nevada 330101-00-08-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-08-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed to measure the relative distance between the probe tip and a conductive surface, typically the shaft of rotating machinery. As part of the highly regarded 3300 XL Series, this proximity probe is engineered for outstanding reliability, superior measurement accuracy, and resistance to harsh industrial environments.

The 3300 XL 8 mm series has become an industry standard for shaft vibration and position measurements, offering a high degree of interchangeability and compatibility with the broader Bently Nevada 3300 systems. It is commonly deployed in critical turbomachinery protection systems where precise measurement is vital for early fault detection and machinery health management.

Product Specifications

Applications

The Bently Nevada 330101-00-08-10-02-05 Proximity Probe is widely used across industries requiring the continuous monitoring of rotating machinery:

• Turbines – Monitoring shaft vibration and radial displacement in steam and gas turbines.

• Compressors – Detecting shaft movement, imbalance, and mechanical looseness.

• Motors and Generators – Shaft positioning and bearing condition monitoring.

• Gearboxes – Monitoring gear shaft behavior to detect misalignment or wear.

• Pumps – Measuring shaft movement to diagnose impeller imbalance or bearing faults.

• Fans and Blowers – Identifying excessive vibration or shaft rubbing conditions.

Its reliable performance in extreme conditions makes it indispensable in sectors such as oil and gas, petrochemical processing, power generation, and heavy manufacturing industries.

Product Advantages

• Outstanding Durability: Built to withstand aggressive industrial environments including high temperature, vibration, and contamination.

• Precise Measurements: Accurate shaft position and vibration monitoring ensures early detection of mechanical problems.

• Extended Cable Length: The 8-meter cable provides flexible installation options even in complex or large machinery layouts.

• Superior Signal Integrity: Minimal signal degradation over long cable runs, ensuring accurate real-time data.

• Low Maintenance Requirement: Engineered for long-term stability, reducing the need for frequent recalibration or servicing.

• Industry Standard Compatibility: Fully compatible with Bently Nevada 3300 Proximitor Sensors and monitoring systems.

• Enhanced System Protection: Supports machinery protection systems by providing critical shaft dynamic and static measurements.

• Robust Housing: Stainless steel construction ensures mechanical robustness and extended operational life.

Frequently Asked Questions (FAQs)

1. What machines are best suited for the 330101-00-08-10-02-05 probe?

   It is ideal for use on critical turbomachinery like turbines, compressors, and large motors.

2. Can this probe be used with non-Bently Nevada proximity systems?

   It is optimized for use with Bently Nevada 3300 series Proximitor Sensors and monitoring systems.

3. Is the 8-meter cable length adjustable?

   No, the cable is factory installed and should not be cut or altered to ensure accuracy and integrity.

4. What is the minimum bend radius for the extension cable?

   The minimum bend radius is 50 mm (2 inches) to prevent cable damage.

5. Can this probe operate continuously at high temperatures?

   Yes, it is designed for continuous operation at temperatures up to 177°C (350°F).

6. Does the probe need periodic recalibration?

   Recalibration is rarely needed; however, system verification during scheduled shutdowns is recommended.

7. What kind of connector is used at the probe end?

   It uses a micro-dot coaxial connector, ensuring reliable signal transmission.

8. Is the probe resistant to oil and moisture exposure?

   Yes, its stainless-steel body and PPS tip material provide excellent resistance to industrial contaminants.

9. Can the probe be mounted horizontally or vertically?

   Yes, the probe orientation is flexible and depends on machinery requirements.

10. How is probe performance verified after installation?

    Performance is verified using a micrometer gap tool and observing the corresponding voltage output.
