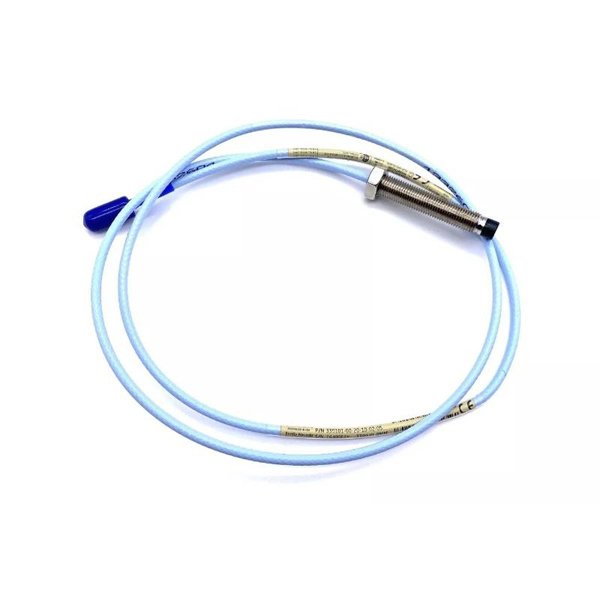

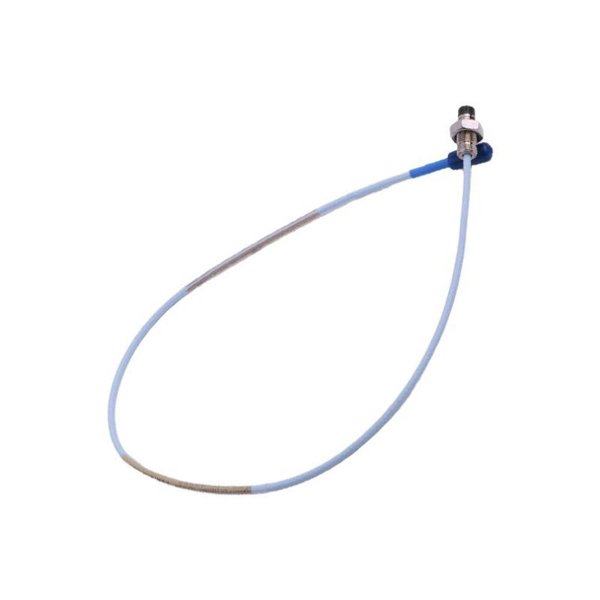

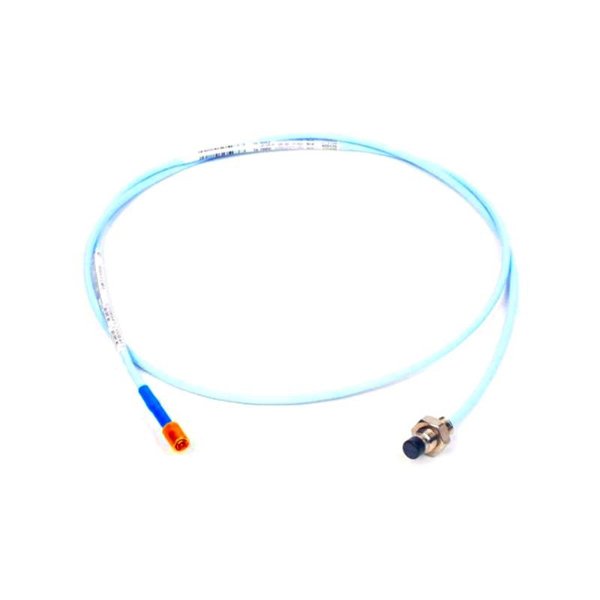

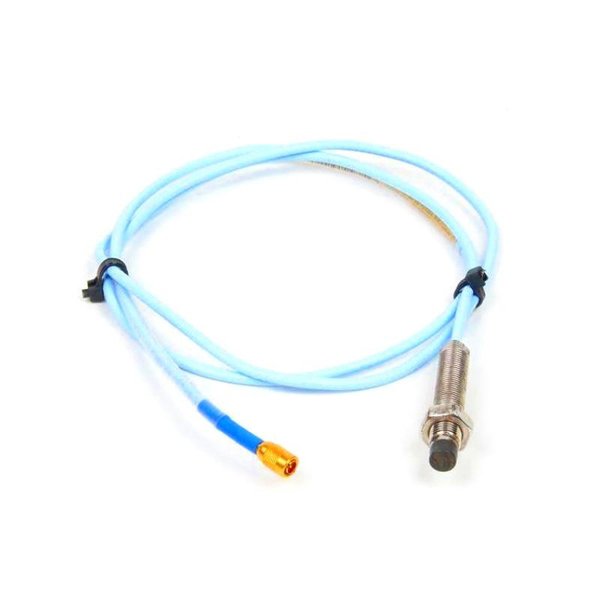

Bently Nevada 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-52-10-12-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:63
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-52-10-12-05 is a component of the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement of shaft vibration, position, and speed. It includes a non-contacting 8 mm proximity probe that interfaces with an extension cable and a Proximitor® sensor to deliver reliable static and dynamic measurements. The system complies with API 670 and supports full interchangeability without the need for individual calibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
| Probe Length | 1.0 meter |
| Cable Type | Standard coaxial with ClickLoc connector |
| Cable Protection | Optional FluidLoc, Armored |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output Voltage Scale | 200 mV/mil ±5% |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C (standard) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
Applications
-
Vibration and position monitoring in rotating machinery
-
Shaft displacement measurement
-
Turbine and compressor condition monitoring
-
Overspeed and Keyphasor® reference systems
-
Suitable for fluid-film bearing machines
Product Advantages
-
API 670 compliance ensures suitability for critical machinery monitoring
-
Modular interchangeability eliminates need for matched components
-
ClickLoc connectors offer secure, tool-free installation
-
High immunity to RFI/EMI for robust operation in industrial environments
-
Durable design with high-temperature and pressure resistance
-
Backward compatibility with legacy 3300 systems
-
Optional FluidLoc cable prevents fluid migration
-
SpringLoc terminals for quick and reliable wiring
Frequently Asked Questions (FAQ)
Q1: What is the function of this proximity probe?
A1: It measures the distance between the probe tip and a conductive target, providing data on shaft position and vibration.
Q2: Does this model comply with API 670?
A2: Yes, it meets the API 670 standard for linear range, mechanical design, and accuracy.
Q3: Can I mix this probe with non-XL series components?
A3: Yes, but system performance will default to the lowest-rated component.
Q4: What is the recommended gap voltage setting?
A4: The optimal gap setting is approximately -9 Vdc, equating to 1.27 mm (50 mils).
Q5: Is it necessary to calibrate each component?
A5: No. All components are factory-calibrated and fully interchangeable.
Q6: What material is the probe casing made from?
A6: Stainless steel AISI 303 or 304.
Q7: Can this probe be used in hazardous environments?
A7: Yes, it holds CSA, ATEX, and IECEx certifications for intrinsic safety.
Q8: What is the linear measurement range?
A8: From 0.25 mm to 2.3 mm (10–90 mils).
Q9: How does it handle high humidity?
A9: It has <3% change in scale factor when exposed to 93% RH for 56 days.
Q10: Can the cable be armored?
A10: Yes, optional stainless steel armor with FEP jacket is available.
