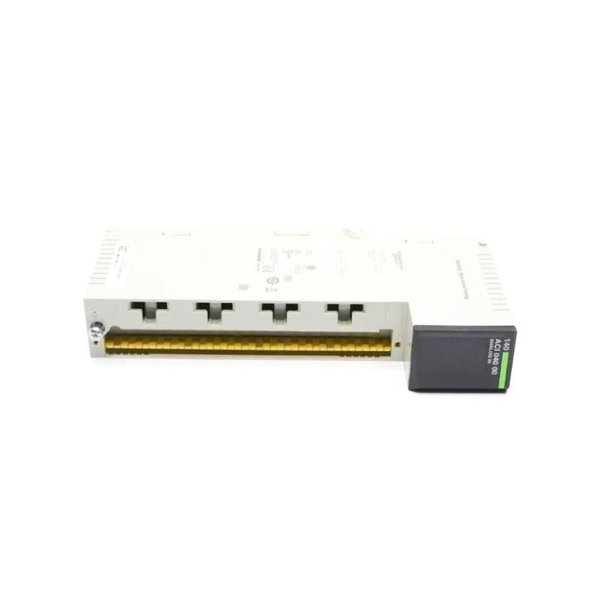

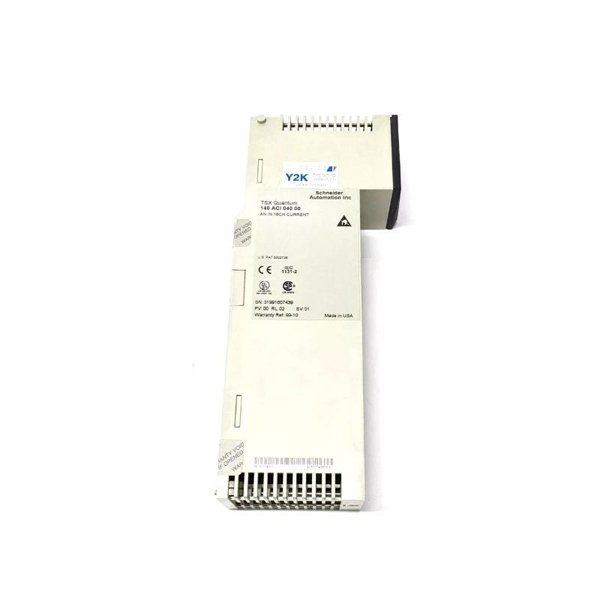

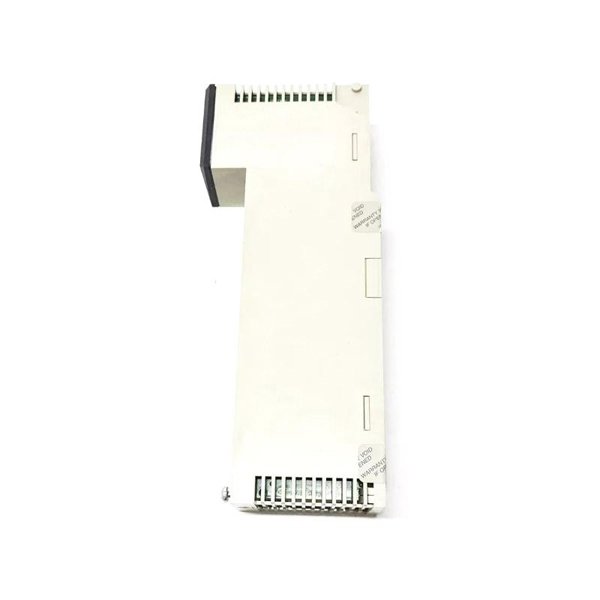

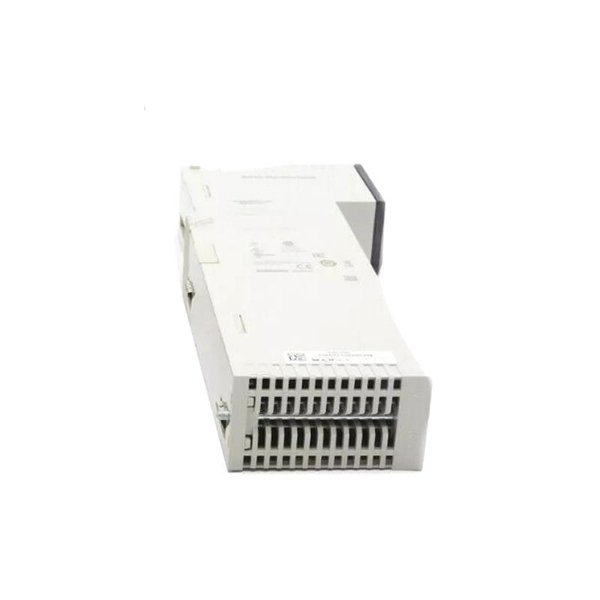

Schneider 140ACI04000 Analog Input Module

The Schneider 140ACI04000 is an analog input module designed for Modicon Quantum automation systems. It is used for precise data acquisition and signal processing in industrial automation applications. This module provides four analog input channels, supporting 0-20mA current signals, making it an ideal solution for interfacing with industrial sensors and transducers.

Product Specifications

The following table provides the detailed specifications of the Schneider 140ACI04000

Equipped with a high-resolution 12-bit ADC, the 140ACI04000 ensures accurate and reliable measurement of analog signals. It features fast conversion times (2ms per channel) and strong electrical isolation (1780V DC) to protect against noise and interference. The module is designed to operate in harsh environments, meeting strict industry certifications (CE, UL, CSA) for safety and reliability.

The 140ACI04000 module is commonly used in process control, SCADA systems, and industrial automation, where precise monitoring of analog signals is essential. The compact design and low power consumption (2.5W) make it an efficient choice for industrial applications.

Product Applications

The Schneider 140ACI04000 analog input module is widely used in various industrial applications, including:

1. Process Control Systems – Collecting real-time data from sensors for monitoring and control.
2. SCADA Systems – Integrating with supervisory control systems to track industrial processes.
3. Water Treatment Plants – Measuring pH levels, flow rates, and other critical parameters.
4. Oil and Gas Industry – Monitoring pressure, temperature, and fluid levels.
5. Manufacturing Automation – Enhancing quality control by capturing precise analog measurements.
6. Building Automation – Managing environmental conditions such as temperature and humidity.
7. Power Plants – Supervising voltage and current levels for efficient energy management.
8. Chemical Processing Plants – Monitoring critical chemical properties in industrial processes.
9. Pharmaceutical Industry – Ensuring compliance with stringent regulations through precise data logging.
10. Food and Beverage Industry – Controlling mixing and fermentation processes in production lines.

Product Advantages

The Schneider 140ACI04000 module provides several key advantages:

1. High Accuracy – ±0.1% full-scale accuracy ensures reliable and precise analog measurements.
2. Fast Response Time – 2ms conversion time per channel enables real-time data acquisition.
3. Robust Electrical Isolation – 1780V DC isolation provides protection against electrical noise.
4. Wide Operating Temperature Range – Performs reliably in environments from 0°C to 60°C.
5. Compact and Lightweight – Optimized design ensures easy integration into automation systems.
6. Industry Certifications – Certified for use in global industrial applications (CE, UL, CSA).
7. Energy Efficient – Low power consumption of just 2.5W helps reduce operational costs.
8. Reliable Performance – Designed for use in demanding industrial environments.
9. Flexible Compatibility – Works seamlessly with Modicon Quantum PLCs and SCADA systems.
10. User-Friendly Interface – Simple wiring and configuration for easy installation.

Latest News and Reports

1. Schneider Electric Expands Quantum Series for Enhanced Industrial Automation – Featuring the latest innovations in modular PLC systems.
2. New Advancements in Analog Input Technology – How the 140ACI04000 improves industrial data acquisition.
3. Industry Trends: The Future of Industrial Automation – Discussing the role of Schneider’s Quantum Series in the digital transformation.
4. Case Study: 140ACI04000 in a Water Treatment Facility – Real-world application of the module in municipal infrastructure.
5. Schneider Electric’s Commitment to Sustainable Automation – How efficient PLCs contribute to green manufacturing.

Frequently Asked Questions (FAQs)

Q1: What is the primary function of the Schneider 140ACI04000?

A: It is an analog input module used for acquiring 0-20mA current signals in industrial automation systems.

Q2: Can this module be used in SCADA systems?

A: Yes, it is fully compatible with SCADA and process control systems.

Q3: What is the resolution of the analog inputs?

A: It features a 12-bit resolution for precise data acquisition.

Q4: Does this module support voltage inputs?

A: No, it is designed for current inputs (0-20mA) only.

Q5: What type of connectors does the 140ACI04000 use?

A: It uses terminal block connectors for secure wiring.

Q6: What is the operating temperature range?

A: The module operates between 0°C and 60°C.

Q7: Is this module compatible with all Modicon Quantum PLCs?

A: Yes, it is designed to work seamlessly with Modicon Quantum systems.

Q8: What certifications does this module have?

A: It is CE, UL, and CSA certified for industrial use.

Q9: How much power does the module consume?

A: The power consumption is 2.5W.

Q10: Does this module have electrical isolation?

A: Yes, it provides 1780V DC isolation for enhanced reliability.
