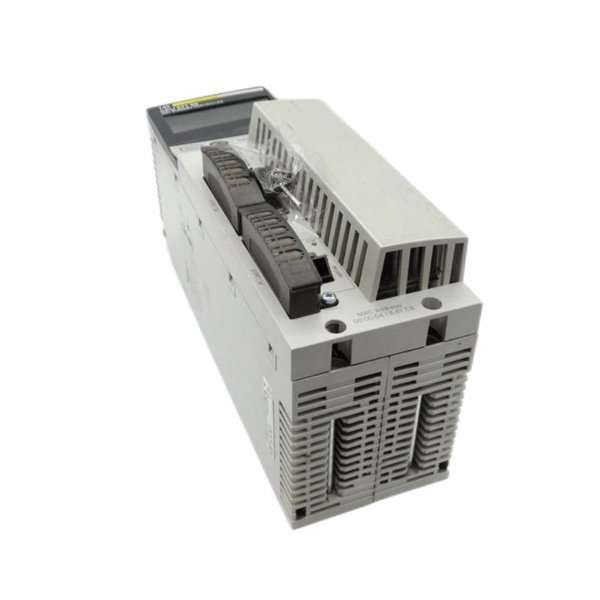

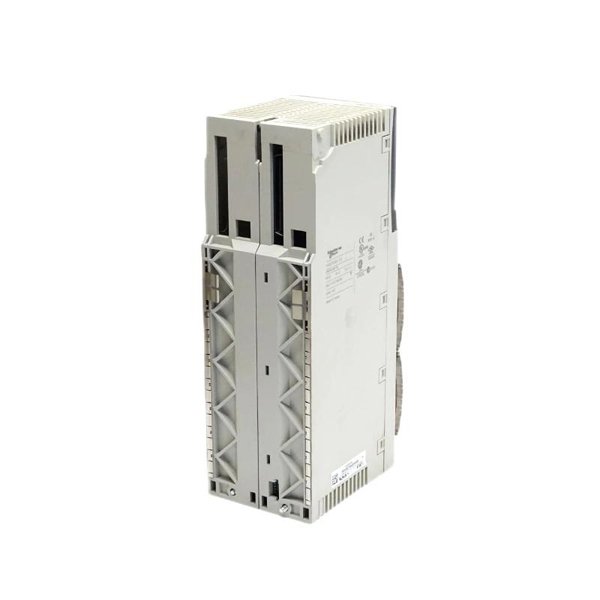

Schneider 140CPU65150C Unity Processor

The Schneider Electric 140CPU65150C is a high-performance Unity Processor Module belonging to the Modicon Quantum series, engineered for demanding industrial automation applications. It is built to deliver robust computing performance, real-time deterministic control, and scalable architecture for large and complex control systems. With Unity Pro (now EcoStruxure Control Expert) software compatibility, the 140CPU65150C supports modern programming standards and integration with a wide range of I/O modules, networks, and automation components.

The 140CPU65150C is commonly deployed in manufacturing environments, energy facilities, water treatment systems, chemical plants, and other mission-critical industries where continuous and reliable automation is essential. It features onboard Ethernet connectivity, advanced diagnostics, and flexible memory management, enabling both high-speed control and extensive process visibility.

Product Specifications

Applications

The Schneider 140CPU65150C Unity Processor is ideally suited for applications that require:

• Complex process control systems with high I/O demands

• Distributed automation architectures with multi-processor configurations

• Mission-critical environments where downtime is not acceptable

• Water and wastewater treatment plants, where it handles continuous feedback and data integration

• Petrochemical and oil & gas industries, enabling real-time safety and process control

• Manufacturing lines with robotics and sensor fusion requirements

• Energy and power management systems that require precision load balancing and automation

Its compatibility with a broad range of fieldbus systems (Modbus, TCP/IP, Profibus, etc.) makes it highly adaptable for integration into both new and legacy systems.

Product Advantages

• High Processing Speed: Its 166 MHz RISC processor ensures rapid logic execution, making it suitable for time-critical control loops.

• Unity Pro Integration: Supports advanced IEC 61131-3 programming languages, structured text, ladder logic, function block diagrams, and more.

• Flexible Networking: With built-in Ethernet and serial ports, it supports seamless integration into hybrid and distributed systems.

• Robust Memory Management: Provides extensive RAM and flash memory with expandability options to handle complex applications.

• Industrial Durability: Designed to operate under harsh industrial conditions, including wide temperature and humidity ranges.

• Scalable Design: Easily deployable across a range of rack sizes and backplanes to accommodate both small and large systems.

• Reduced Downtime: Features hot-swap capabilities and redundancy support to ensure maximum uptime.

• Secure Communication: Complies with industry-standard communication protocols ensuring data integrity and safety.

FAQ

1. What software is required to program the 140CPU65150C?

   The processor is programmed using Unity Pro, now known as EcoStruxure Control Expert.

2. Does the 140CPU65150C support Ethernet communication?

   Yes, it includes a built-in 10/100 Mbps Ethernet port for networking and remote diagnostics.

3. Can this processor be used in safety-critical applications?

   While not a safety-certified CPU itself, it can be used in safety-related systems when paired with appropriate safety modules.

4. What is the maximum amount of memory supported?

   Internally, it includes 2MB RAM and 1MB Flash, and can be expanded via a PCMCIA memory card.

5. What is the supported rack size?

   It is compatible with Quantum 4-slot to 16-slot backplanes.

6. Is redundancy supported with this CPU?

   Yes, it supports Hot Standby CPU configurations for redundancy.

7. What programming languages are supported?

   Supports Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), and Instruction List (IL).

8. Can the processor be used in extreme environments?

   Yes, it operates in temperatures from 0°C to 60°C and storage from -40°C to 85°C.

9. Does the CPU support real-time clock or event timestamping?

   Yes, the processor includes a real-time clock for precise time-based operations.

10. How is firmware updated?

    Firmware can be updated via Unity Pro using the serial or Ethernet interface.
