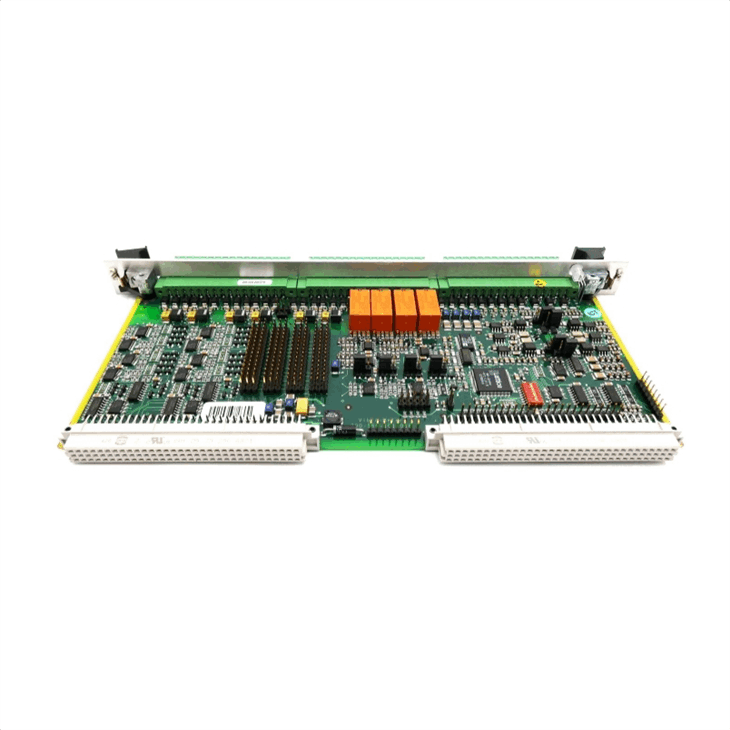

Vibro-Meter IOC4T 200-560-000-016 Input/Output Card
Item Number:IOC4T 200-560-000-016
Brand: Vibro-Meter
Lead Time: In stock
Description:Input/Output Card
Payment: T/T
Product Description
The IOC4T 200-560-000-016 input/output card is a signal interface card designed for the MPC4 machinery protection system. It acts as a bridge between sensors, control systems and MPC4 protection cards. By installing it at the rear of the ABE04x rack, it can be paired directly with the MPC4 or MPC4SIL card. It is able to support 4 dynamic channels and 2 speed channels.
Function & Features
Signal Interface Capabilities:
- 4 Dynamic (Vibration) Signal Inputs – IOC4T 200-560-000-016 transmits raw sensor signals to MPC4 for processing.
- 2 Speed (Key Phase) Signal Inputs – IOC4T 200-560-000-016 supports speed monitoring.
- Buffered Raw Signals & Analog Outputs (0–10 V or 4–20 mA, jumper selectable).
Terminal Blocks:
48 Screw Terminals – IOC4T 200-560-000-016 for connecting sensors/transmission cables and external control systems.
Relay & Alarm Management:
- 4 Onboard Relays – IOC4T 200-560-000-016 for software configurable alarms (e.g. MPC4 Fault, Sensor OK/Alarm/Danger Signals).
- 32 Programmable Open-Drain Outputs – IOC4T 200-560-000-016 For connection to optional RLC16/IRC4 relay card (jumper selectable).
Specifications
|
Category |
Details |
|
Model |
IOC4T |
|
Order number |
200-560-000-016 |
|
Accuracy |
≤±1.5% |
|
Linearity error |
≤±0.5% |
|
Admissible load on output |
>100 kΩ for voltage output; <325 Ω for current output |
|
Relay names |
RL1 to RL4 |
|
Type |
PE014005 |
|
Contact arrangement |
1 x NC or 1 x NO contact per relay (user configurable). The selected contacts are available on J2. |
|
Nominal rated voltage |
250 Vₐc |
|
Nominal rated current |
5 Aₐc |
|
Maximum breaking capacity (without contact protection) |
1250 VA |
|
Height |
6U (262 mm, 10.3 in) |
|
Width |
20 mm (0.8 in) |
|
Depth |
125 mm (4.9 in) |
|
Weight |
0.25 kg (0.55 lb) approx. |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A:I/O Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
