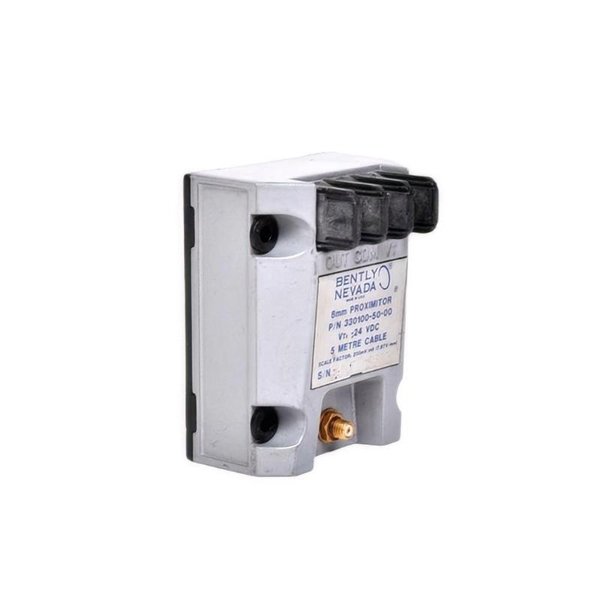

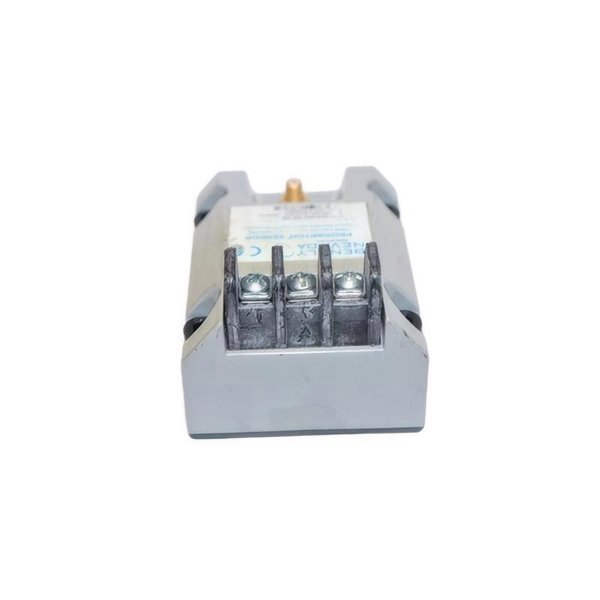

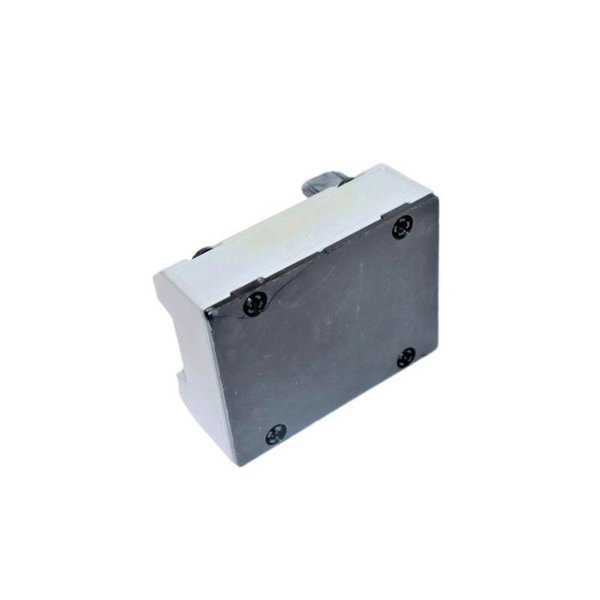

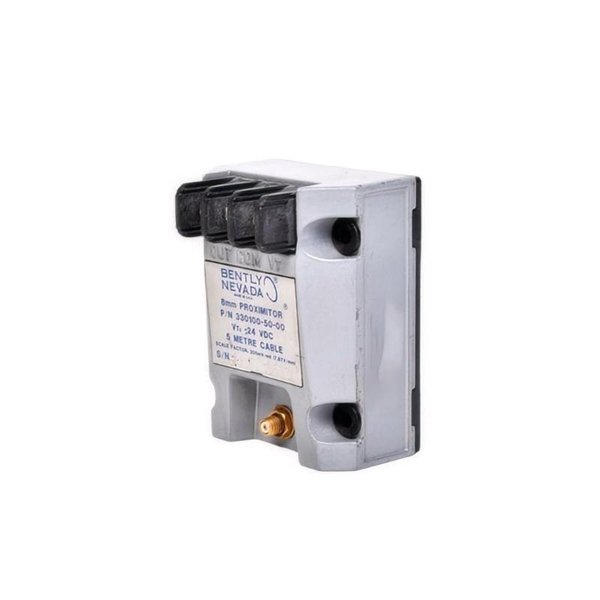

Bently Nevada 330100-50-00 3300 Proximitor Sensor

The Bently Nevada 3300 Proximitor Sensor (Part Number: 330100-50-00) is an advanced displacement sensor designed to monitor the position of machinery components in a wide range of industrial applications. The 3300 Proximitor is known for its precision and reliability in detecting small shifts and displacements in rotating equipment such as turbines, compressors, and motors. By providing continuous monitoring of key parameters, this sensor ensures that early warning signs of malfunction or wear can be detected before they lead to system failure, thus optimizing maintenance schedules and preventing costly downtime.

With its rugged design, the Bently Nevada 3300 series is built to withstand harsh operating environments, making it a preferred choice in industries like oil & gas, power generation, and manufacturing.

Product Specifications

Product Applications

The 3300 Proximitor Sensor is commonly used in various rotating machinery applications, including but not limited to:

• Turbine Monitoring: Ideal for monitoring the clearance between rotating shafts and stationary parts in turbine systems.

• Motor Shaft Positioning: Used in large motors to detect shaft displacement, ensuring proper alignment and preventing damage due to excessive movement.

• Compressor Monitoring: Essential for detecting rotor-to-stator clearances in compressors, which helps in optimizing performance and reducing wear.

• Pump Vibration Measurement: Used in pumps to monitor rotor position and movement, ensuring that excessive vibration or misalignment is detected early.

• Industrial Equipment: Suitable for general industrial use in equipment such as fans, conveyors, and mixers where precise positioning is crucial for smooth operation.

Product Advantages

1. High Precision: The Bently Nevada 3300 Proximitor Sensor offers exceptional accuracy, ensuring that even the smallest shifts in machinery are detected.

2. Rugged Design: Designed to operate in harsh environments, the sensor is built to withstand high levels of vibration, temperature variations, and corrosive atmospheres.

3. Long-Lasting Performance: With a durable construction and reliable components, the 3300 series sensor provides long service life, reducing the need for frequent replacements.

4. Easy Installation: The integral mounting style simplifies installation and ensures that the sensor remains securely attached to the machinery.

5. Industry Standard: As part of the Bently Nevada 3300 series, it adheres to rigorous industry standards for performance and safety.

6. Real-Time Data: The sensor provides real-time data that allows operators to monitor and respond to potential issues before they escalate into major failures.

7. Cost-Effective: By detecting problems early and preventing catastrophic failures, the 3300 Proximitor Sensor helps reduce downtime and maintenance costs.

FAQ

1. What is the operating temperature range of the 3300 Proximitor Sensor?

   • The operating temperature range is from -40°C to 100°C (-40°F to 212°F).

2. How accurate is the Bently Nevada 3300 Proximitor Sensor?

   • The sensor has an accuracy of ±0.01 mm, ensuring high precision in displacement measurement.

3. Can the 3300 Proximitor Sensor be used in explosive environments?

   • While the 3300 series is designed for harsh environments, it is recommended to verify compatibility with hazardous location certifications before use in explosive areas.

4. What is the typical lifespan of the Bently Nevada 3300 Proximitor Sensor?

   • The sensor is built for long-lasting durability, with a service life typically measured in years under normal operating conditions.

5. What output does the 3300 Proximitor Sensor provide?

   • It provides a 4-20 mA DC output signal for easy integration with monitoring systems.

6. Is the sensor compatible with most industrial control systems?

   • Yes, the 3300 Proximitor Sensor is widely compatible with industrial control systems that accept 4-20 mA signals.

7. Can the 3300 Proximitor Sensor detect small shifts in machinery?

   • Yes, it is designed to detect very small displacements, as fine as 0.01 mm, making it ideal for precision monitoring.

8. How is the 3300 Proximitor Sensor mounted?

   • The sensor uses an integral mounting style, allowing it to be directly bolted onto the machine.

9. What industries commonly use the Bently Nevada 3300 Proximitor Sensor?

   • The sensor is commonly used in industries like power generation, oil & gas, and manufacturing, where rotating machinery is prevalent.

10. What is the sensor’s output impedance?

    • The sensor’s output impedance is 500 Ohms.
