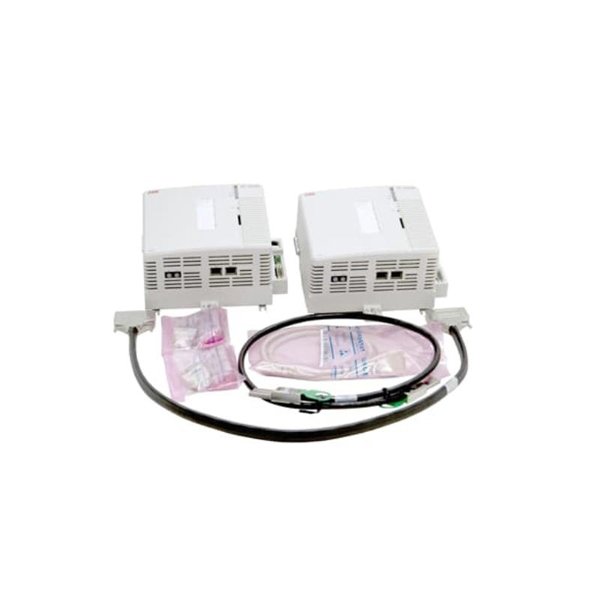

ABB PM891K02 3BSE053242R1 CPU Controller Unit

This CPU module includes the PM891 processor, Battery Back-up Unit (BBU), CompactFlash memory card, and baseplate with built-in I/O capabilities. Its design prioritizes robustness, long-term operation, and fast communication with other system components.

Product Features

• Powerful 32-bit RISC processor with integrated floating-point unit

• Support for large-scale applications with up to 10,000 I/O points

• Hot-swap functionality for easy replacement and maintenance

• Dual Ethernet ports for redundant communication or separate networks

• Real-time clock and battery backup for non-volatile data retention

• CompactFlash support for application storage and firmware upgrades

• Integration with ABB’s Control Builder and Plant Explorer tools

• Redundancy and high availability options for critical applications

• Built-in diagnostics and event logging

Technical Specifications

Product Applications

The ABB PM891K02 is widely deployed in demanding industrial control scenarios such as:

• Power Generation (Turbine and boiler control)

• Oil & Gas (Upstream and downstream automation)

• Chemicals & Petrochemicals (Batch and continuous process control)

• Pulp & Paper (Production line monitoring)

• Metals and Mining (Ore processing, blast furnace control)

• Water and Wastewater (Pump stations, filtration systems)

• Manufacturing Automation (Assembly lines, robotics coordination)

Product Advantages

• High Performance: Handles large-scale, time-critical applications with low latency.

• Modular Scalability: Easily expandable with I/O modules and network extensions.

• Integrated Redundancy: Supports CPU redundancy to reduce downtime.

• Comprehensive Toolset: Fully compatible with ABB’s 800xA engineering suite.

• Robust Design: Industrial-grade durability with extended temperature tolerance.

• Field-Proven Reliability: Backed by ABB’s global service and long product lifecycle.

Frequently Asked Questions (FAQ)

Q1: What is included in the PM891K02 kit?

A1: The kit includes the PM891 CPU module, baseplate, CompactFlash card, and battery backup unit (BBU).

Q2: Can the PM891K02 operate in redundant configurations?

A2: Yes, it fully supports redundant CPU configurations for high-availability systems.

Q3: Is the module programmable with standard IEC 61131-3 languages?

A3: Yes, it supports multiple languages including Function Block, Ladder Diagram, and Structured Text.

Q4: What engineering tools are used with the PM891K02?

A4: It is configured using ABB Control Builder M and integrated with the 800xA system.

Q5: Can I hot-swap the CompactFlash card?

A5: Yes, the CompactFlash card is hot-swappable and stores firmware and application data.

Q6: What communication protocols are supported?

A6: It supports Ethernet/IP, MODBUS TCP, and other fieldbus protocols via communication modules.

Q7: Is the module certified for industrial environments?

A7: Yes, it complies with international standards such as CE and UL for industrial automation.

Q8: How many I/O channels does it support?

A8: It can handle up to 10,000 I/O points depending on system architecture.

Q9: What’s the purpose of the BBU (Battery Backup Unit)?

A9: The BBU ensures data retention in case of power loss and maintains the real-time clock.

Q10: What is the typical service life of this CPU module?

A10: With proper installation and maintenance, it offers over 5 years of reliable operation.
