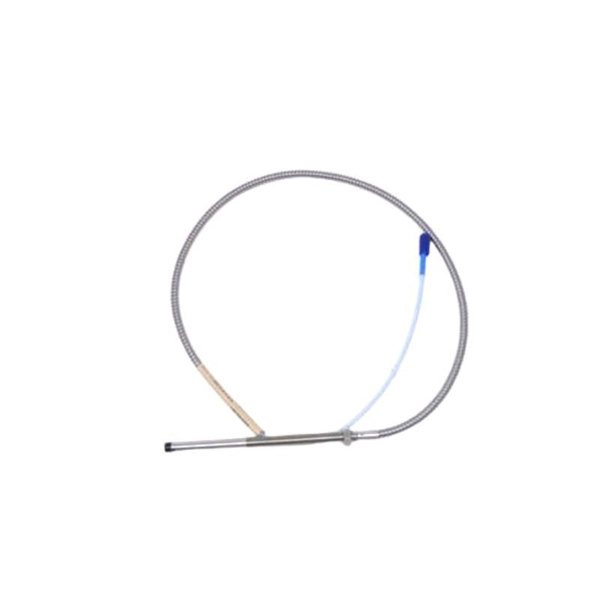

Bently Nevada 330103-00-09-10-02-05 3300 XL 8mm Proximity Probe

The Bently Nevada 330103-00-09-10-02-05 is a high-performance proximity probe designed for use in the 3300 XL series proximity transducer systems. Manufactured by Bently Nevada, a global leader in condition monitoring and machinery protection, this probe is commonly installed on rotating equipment to measure dynamic and static displacements.

This particular model features a 1.0 meter total length, a 10 mm probe tip, a Mini-Coax connector, and a radial-mount configuration. It is widely used to monitor the relative shaft vibration and position in critical machinery such as turbines, compressors, motors, and pumps. Its rugged design ensures long-term reliability even in harsh industrial environments, including high temperatures and areas with substantial vibration.

Product Specifications

Product Applications

The 330103-00-09-10-02-05 proximity probe is widely adopted in condition monitoring systems across several industries. Key applications include:

• Shaft vibration and position monitoring on turbines and compressors

• Thrust position measurement on axial machines

• Radial and axial vibration monitoring in critical rotating equipment

• Bearing wear detection in electric motors and centrifugal pumps

• Predictive maintenance systems in oil refineries and petrochemical plants

• Vibration protection systems in high-speed gearboxes

• Process industries requiring API 670 compliance

Product Advantages

• Industry Proven Performance: Part of Bently Nevada’s flagship 3300 XL series, known for unmatched reliability and field performance.

• Extended Temperature Range: Capable of operation in extreme temperature environments without performance degradation.

• Long Cable Design: Allows flexible installation over long distances without signal degradation.

• Mechanical Robustness: Withstands harsh industrial conditions, including vibration, shock, and temperature cycling.

• High Sensitivity and Precision: Offers accurate vibration and displacement measurements with industry-standard sensitivity.

• Modular System Compatibility: Integrates easily with other 3300 XL system components such as extension cables and Proximitor sensors.

FAQ

1. Q: What system is the 330103-00-09-10-02-05 designed for?

   A: It is designed for use in Bently Nevada’s 3300 XL Proximity Transducer System.

2. Q: Can this probe be used in high-temperature environments?

   A: Yes, it is rated for operation up to 177°C (350°F).

3. Q: What is the cable length of this model?

   A: This model includes a 1.0 meter total length.

4. Q: Is the probe compatible with older Bently Nevada proximitor modules?

   A: While primarily designed for 3300 XL modules, it maintains backward compatibility with certain legacy systems. Check specific module support.

5. Q: What kind of measurements does this probe perform?

   A: It measures both dynamic (vibration) and static (position) displacements.

6. Q: Is this probe suitable for hazardous areas?

   A: Yes, ATEX-certified versions are available for hazardous locations. Please check model-specific certifications.

7. Q: What material should the target be for proper operation?

   A: Typically, a conductive metal such as steel or another ferromagnetic material.

8. Q: Can the probe be submerged or exposed to fluids?

   A: It is IP67-rated when properly installed, making it resistant to limited water exposure.

9. Q: What kind of connector is used at the proximitor end?

   A: A standard Mini-Coax connector is used.

10. Q: What mounting configuration is this model?

    A: This is a radial mount probe with 3/8-24 UNF threads.
