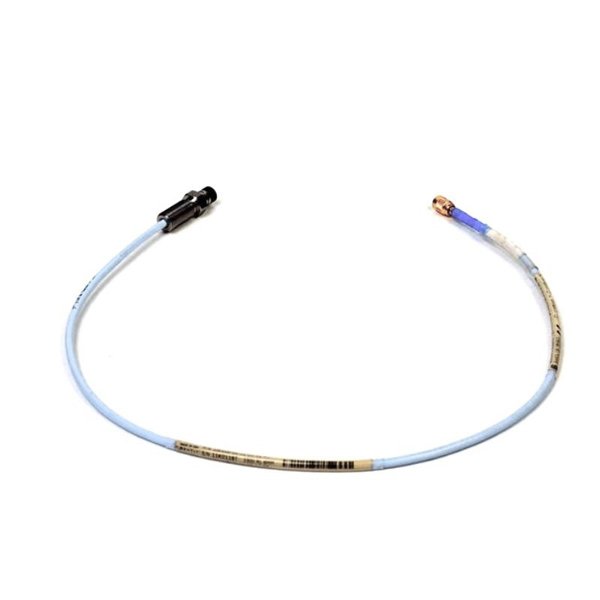

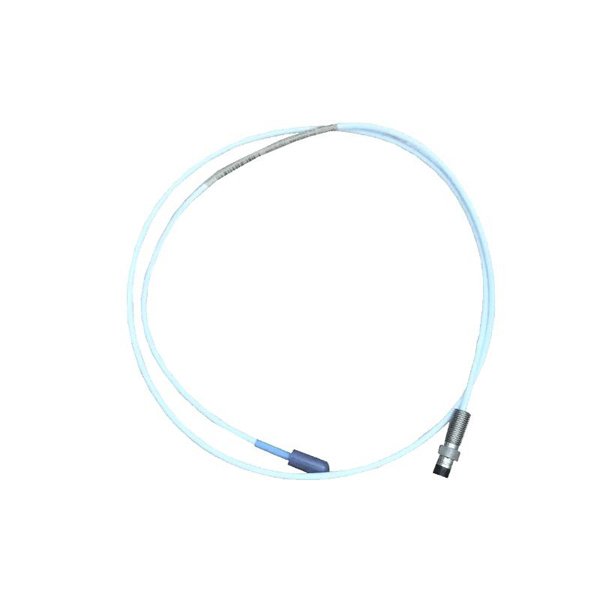

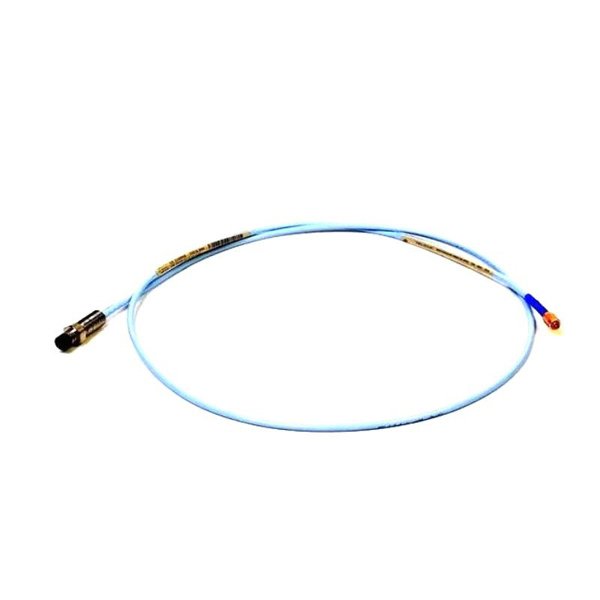

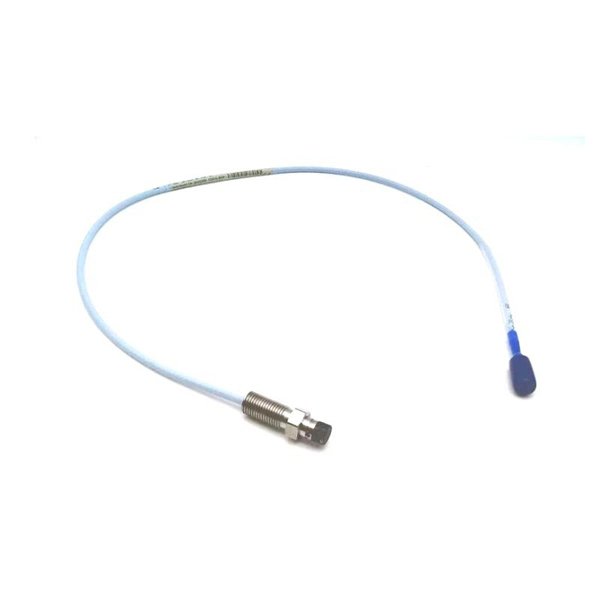

Bently Nevada 330105-05-30-05-02-00 3300 XL 8 mm Reverse Mount Probe
Manufacturer:Bently Nevada
Product Number:330105-05-30-05-02-00
Product Type:3300 XL 8 mm Reverse Mount Probe
Origin:USA
Total Length:9.0 meters
Weight:2.907 kg
Views:33
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330105-05-30-05-02-00 is a reverse mount 8 mm eddy current proximity probe from the 3300 XL series. It provides non-contact measurement of vibration and position for critical machinery, with a robust design suited for high-temperature and high-vibration environments. It includes a reverse-mounted probe, extension cable, and Proximitor sensor for complete installation flexibility.
Applications
Key Advantages
-
Reverse-mount design for tight installations
-
Rugged construction with high tensile strength
-
FluidLoc and ClickLoc cable options for leak and vibration resistance
-
Fully compliant with API 670
-
Interchangeable with 3300 and non-XL systems
-
Extended temperature and environmental resistance
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | 3300 XL 8 mm Reverse Mount Probe |
| Part Number | 330105-05-30-05-02-00 |
| Mounting Type | Reverse Mount (3/8-24 UNF threads) |
| Tip Diameter | 8.0 mm (0.31 in) |
| Total Length | 9.0 meters |
| Weight | 2.907 kg (approximate) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Connector | Miniature ClickLoc coaxial |
| Temperature Range | -52°C to +177°C (standard) |
| Extended Temp Probe Tip | Up to +218°C (ETR version) |
| Pressure Sealing | Viton® O-ring |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
| System Compliance | API 670, CE, FCC, SIL2/3, RoHS |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 330105-05-30-05-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery with a reverse-mount installation.
Q2: Is this probe compatible with non-XL systems?
A2: Yes, it is backward compatible with older 3300 5 mm and 8 mm components.
Q3: What temperature can the standard version withstand?
A3: The standard version operates up to +177°C, with extended versions rated up to +218°C.
Q4: Can I install this in hazardous areas?
A4: Yes, it holds approvals like ATEX, CSA, and IECEx for Zone 0/1 and Class I Div 2 environments.
Q5: Does the probe support API 670 compliance?
A5: Yes, it is fully compliant with API 670 mechanical and performance standards.
Q6: What type of cable does this model use?
A6: It uses a 75Ω triaxial cable with FEP insulation; FluidLoc options are available.
Q7: Is field calibration required?
A7: No field calibration is needed as all components are factory matched and interchangeable.
Q8: What is the recommended gap voltage?
A8: -9 VDC, corresponding to 1.27 mm (50 mils) probe gap.
Q9: How is connector locking ensured?
A9: It features ClickLoc connectors that “click” at finger-tight torque for secure locking.
Q10: What is the probe’s durability against pull forces?
A10: It supports up to 330 N (75 lbf) tensile strength at the probe body.
