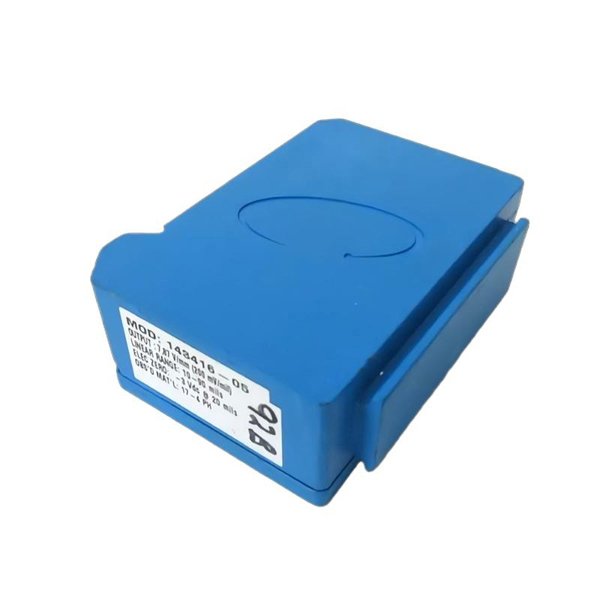

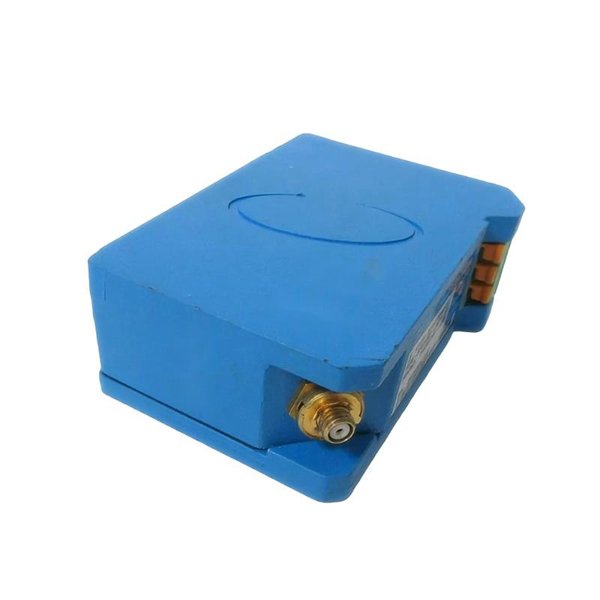

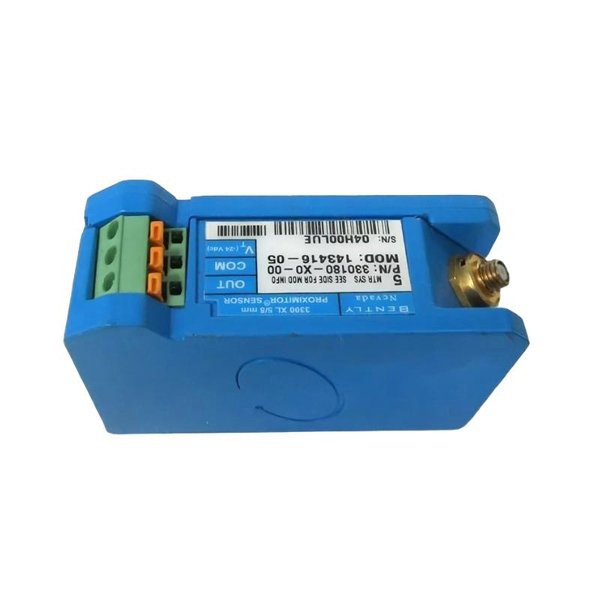

Bently Nevada 330180-X0-00 285446 3300 XL 8mm Proximitor Sensor

The Bently Nevada 330180-X0-00 285446 3300 XL 8mm Proximitor Sensor is a highly reliable displacement sensor used extensively in industrial machinery condition monitoring. Engineered for precision and durability, it measures shaft position and vibration with an 8mm sensing range, ideal for close-clearance monitoring in turbines, compressors, and pumps. This sensor is a key component of Bently Nevada’s 3300 XL system, providing accurate and consistent data essential for predictive maintenance and machinery protection in critical applications.

Product Specifications

Applications

The 3300 XL 8mm Proximitor Sensor is commonly used for:

• Turbomachinery Monitoring: Real-time detection of shaft displacement and vibration in turbines.

• Compressor and Pump Monitoring: Ensures shaft stability and smooth operation.

• Rotating Equipment Protection: Early detection of abnormal shaft movement to prevent damage.

• Predictive Maintenance Programs: Supports condition-based maintenance strategies.

• Power Generation Plants: Continuous monitoring of critical rotating machinery.

• Industrial Manufacturing: Vibration and position monitoring in heavy equipment to optimize performance.

Product Advantages

• High Sensitivity: Accurately measures minute shaft movements with a narrow sensing range.

• Rugged Design: Built to operate reliably under harsh industrial environments, including temperature extremes and vibration.

• Wide Frequency Response: Captures a broad range of vibration frequencies for comprehensive analysis.

• Flexible Mounting: Supports multiple mounting options for ease of installation.

• Stable Signal Output: Consistent AC voltage output suitable for reliable condition monitoring.

• System Compatibility: Fully compatible with Bently Nevada 3300 XL and other industrial monitoring systems.

• Low Power Consumption: Efficient operation reduces energy requirements.

• EMI Resistant: Robust shielding minimizes interference from electromagnetic sources.

• Proven Performance: Trusted worldwide in critical machinery monitoring applications.

• Minimal Maintenance: Long-term stable calibration reduces upkeep needs.

Frequently Asked Questions (FAQ)

1. What technology does the Proximitor sensor use to measure displacement?

   It employs eddy current principles to measure displacement between the sensor tip and the target surface.

2. Can the sensor provide accurate data in environments with high vibration?

   Yes, it is specifically engineered to maintain accuracy under severe vibration conditions.

3. What is the required excitation voltage for the sensor to operate correctly?

   The sensor operates with an AC excitation voltage, typically 6 Vrms nominal.

4. Are there different mounting options available for this sensor?

   Yes, it supports threaded stud mounting and flange mounting, depending on installation needs.

5. How does temperature affect sensor performance?

   The sensor is designed to operate reliably from -40°C to +120°C, with stable performance across this range.

6. What output signal does the sensor provide?

   It outputs an AC displacement voltage signal proportional to the shaft position.

7. Is the sensor compatible with condition monitoring systems other than Bently Nevada?

   While optimized for Bently Nevada systems, the sensor’s standard output can be integrated with other compatible monitoring equipment.

8. What materials are used for the sensor tip and housing?

   The sensor tip is constructed from non-magnetic stainless steel for durability, and the housing is ruggedized for industrial use.

9. Does the sensor require routine calibration?

   The sensor comes factory-calibrated with high stability, requiring minimal field calibration during its service life.

10. How does the sensor handle electromagnetic interference?

    It includes robust shielding and filtering to resist EMI and maintain signal integrity in industrial settings.
