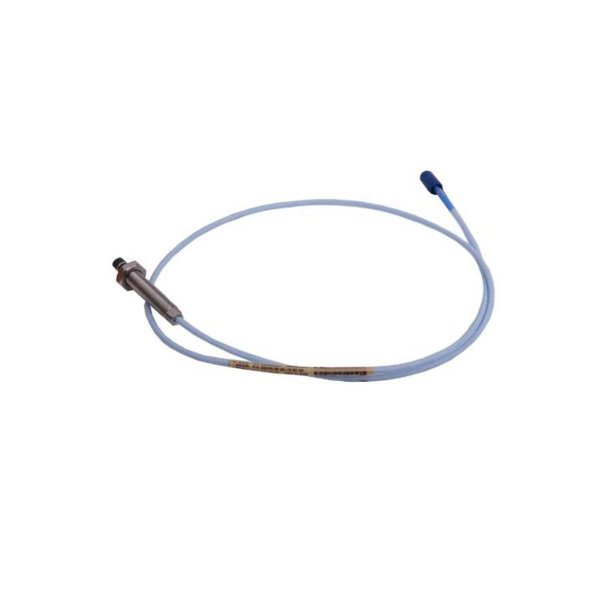

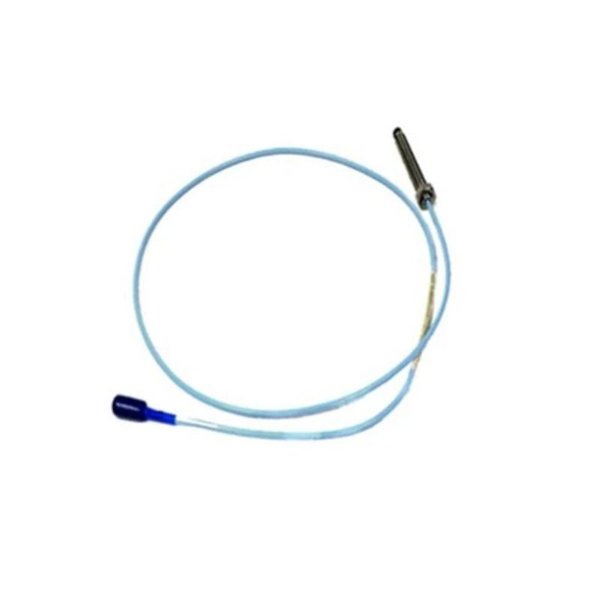

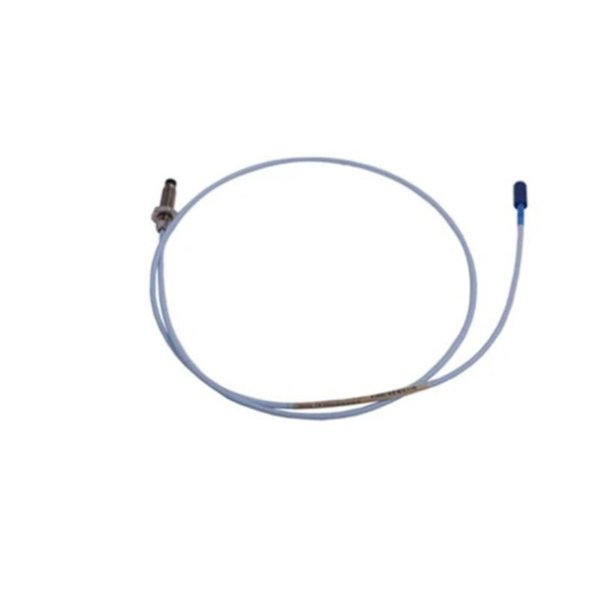

Bently Nevada 330101-00-58-10-02-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-58-10-02-CN is a robust 8 mm 3300 XL series proximity probe designed for precise shaft vibration measurement in rotating machinery. This probe is widely recognized in the condition monitoring and machinery protection industry for its reliability, durability, and high accuracy in demanding industrial environments. The 3300 XL proximity probes are engineered to measure the displacement of rotating shafts relative to the probe tip, enabling early detection of imbalance, misalignment, or bearing wear.

With a rugged stainless steel housing and sealed design, this probe is suitable for harsh conditions including high temperature, pressure, and corrosive atmospheres commonly found in power generation, oil & gas, and manufacturing industries. Its total length of 1.0 meter allows flexibility in installation, and its lightweight design (0.323 kg) reduces stress on mounting points, ensuring long-term operational stability.

Product Parameters

Product Applications

The 3300 XL 8 mm proximity probe is used extensively in machinery protection and condition monitoring systems in the following applications:

• Turbines: Monitoring shaft vibration to detect misalignment, imbalance, or bearing faults in steam, gas, and hydro turbines.

• Compressors: Used in centrifugal and axial compressors for vibration surveillance to prevent catastrophic failures.

• Generators: Measuring shaft position and vibration to ensure safe and efficient operation in power generation plants.

• Pumps: Detecting early signs of mechanical degradation or hydraulic instabilities in centrifugal pumps.

• Motors: Monitoring motor shaft displacement for predictive maintenance and operational efficiency.

• Industrial Machinery: Applied in a wide range of rotating equipment including fans, blowers, and gearboxes.

Product Advantages

• High Accuracy: Provides precise, repeatable measurements critical for early fault detection and machinery diagnostics.

• Durable Construction: Stainless steel housing and sealed cable connections protect against moisture, dust, and corrosive environments.

• Standard Compatibility: Fully compatible with Bently Nevada 3300 XL series monitoring systems and other third-party systems using similar eddy current sensors.

• Extended Operating Temperature Range: Suitable for use in environments ranging from -40°C to +120°C without performance degradation.

• Long Cable Length: One-meter cable provides installation flexibility, reducing the need for additional extensions.

• Lightweight Design: At 0.323 kg, the probe reduces mechanical strain on mounting fixtures, increasing longevity.

• Industry Standard Compliance: Meets or exceeds API 670 and IEC vibration monitoring standards for rotating machinery protection.

• Ease of Installation: Available with various connector options and mounting accessories, simplifying field deployment.

• Reliable Signal Transmission: Shielded twisted pair cable minimizes electromagnetic interference, ensuring signal integrity.

• Proven Track Record: Bently Nevada is a trusted brand with decades of experience in machinery protection solutions.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 3300 XL proximity probe?

A1: It measures shaft displacement and vibration in rotating machinery to detect early signs of mechanical issues.

Q2: What is the total length and weight of this probe?

A2: The total length is 1.0 meter and it weighs 0.323 kg.

Q3: Is this probe compatible with all 3300 series monitoring systems?

A3: Yes, it is fully compatible with the 3300 XL series and most legacy 3300 systems.

Q4: What environments can the probe operate in?

A4: It operates reliably from -40°C to +120°C and is resistant to harsh industrial conditions.

Q5: What type of cable does the probe use?

A5: The probe uses a shielded twisted pair cable to ensure signal integrity.

Q6: Can this probe detect both vibration and shaft position?

A6: Yes, it measures shaft displacement, which is used to infer vibration and shaft position.

Q7: How durable is the probe housing?

A7: The stainless steel housing is designed for high durability against corrosion and mechanical impact.

Q8: Does the probe comply with industry standards?

A8: Yes, it meets API 670 and IEC vibration monitoring standards.

Q9: Are mounting accessories included?

A9: Mounting accessories are typically sold separately but are readily available for the 8 mm probe series.

Q10: Can this probe be used in explosive environments?

A10: With appropriate certification and installation practices, it can be used in hazardous areas.
