Bently Nevada 330180-X1-RU 143416-49 3300 XL Proximitor Sensor

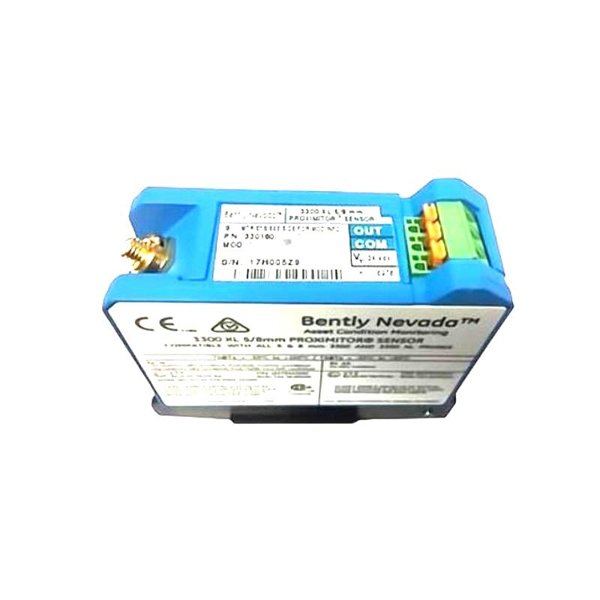

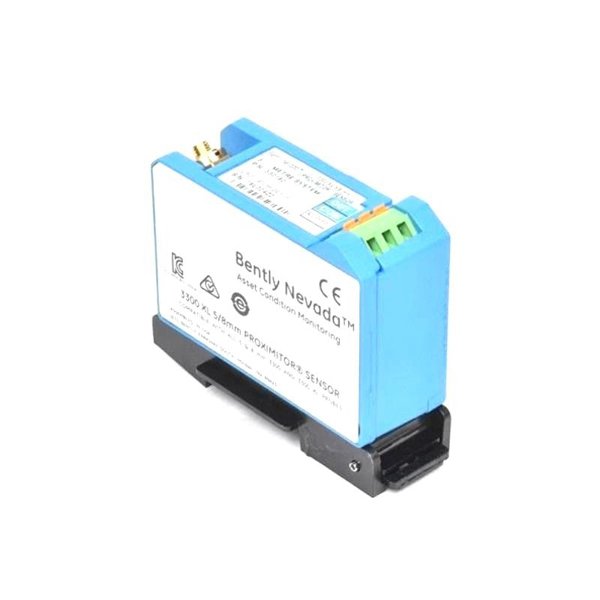

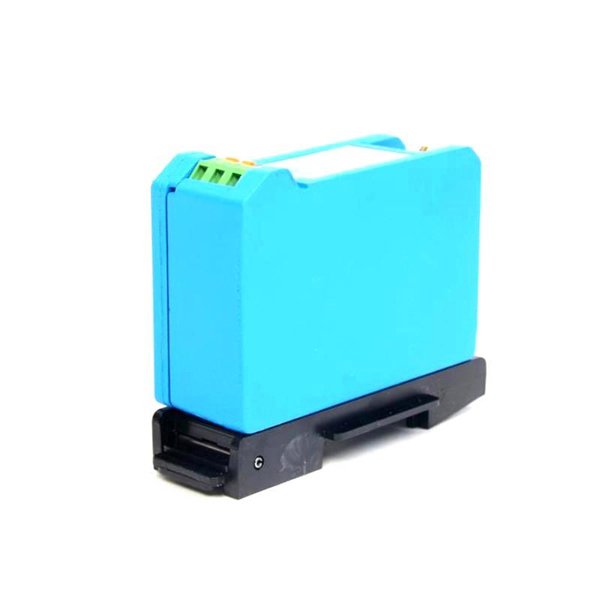

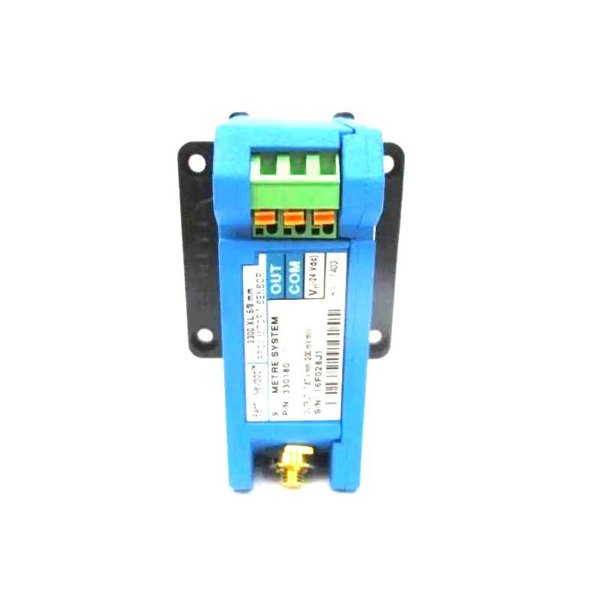

The Bently Nevada 330180-X1-RU 143416-49 is a 3300 XL Proximitor Sensor designed for use in the 3300 XL 8 mm Proximity Transducer System. This system provides a voltage output directly proportional to the distance between the probe tip and a conductive surface, enabling precise measurement of both static (position) and dynamic (vibration) parameters.

It meets API 670 standards for mechanical configuration, accuracy, linear range, and temperature stability, ensuring full interchangeability without the need for matched calibration of components. The sensor features advanced RFI/EMI immunity, high-density DIN or panel mount capability, and robust SpringLoc terminals for reliable, tool-free wiring connections.

Technical Specifications

Applications

• Vibration and position monitoring in fluid-film bearing machines

• Shaft speed and Keyphasor reference measurements

• Turbomachinery condition monitoring

• Generator and motor bearing health tracking

• Overspeed and protection systems (per application guidelines)

• Industrial machinery performance diagnostics

Advantages

• Full API 670 compliance for accuracy, linear range, and stability

• High interchangeability with no calibration needed between components

• Excellent RFI/EMI immunity, allowing flexible installation without special shielding

• Robust mechanical design with corrosion-resistant ClickLoc connectors

• Wide temperature operating range for harsh environments

• SpringLoc terminals for quick, secure, and tool-free wiring

FAQ

Q1: What type of probe is compatible with the 330180-X1-RU Proximitor Sensor?

A1: It is compatible with 3300 XL 8 mm proximity probes and extension cables, as well as non-XL 3300 5 mm and 8 mm components.

Q2: Does this model meet API 670 standards?

A2: Yes, it fully complies with API 670 mechanical configuration, accuracy, and stability requirements.

Q3: Can it be used in hazardous areas?

A3: Yes, it has CSA, ATEX, and IECEx approvals for use in Class I, II, and III hazardous areas.

Q4: What is the recommended probe gap setting?

A4: Approximately -9 Vdc, equivalent to 1.27 mm (50 mils).

Q5: What is the linear measurement range?

A5: 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils).

Q6: How is it mounted?

A6: It supports both DIN-rail and panel mount configurations.

Q7: What is the output scale factor?

A7: 7.87 V/mm (200 mV/mil) ±5% for standard systems.

Q8: Is special wiring required?

A8: No, it uses standard 3-conductor shielded triad cable, with a maximum field wiring length of 305 m.

Q9: Can it be used for overspeed protection?

A9: Yes, but consult the manufacturer’s guidelines for eddy current probe overspeed applications.

Q10: What are its environmental limits?

A10: Operating temperature is -52°C to +100°C, with high humidity resistance per IEC 68 2 3.
