Vibro-Meter TQ912-011 111-912-000-011 A1-B6-E5000-F2-G4800-H05 Proximity Sensor
Item Number: TQ912-011 111-912-000-011 A1-B6-E5000-F2-G4800-H05
Brand:Vibro-Meter
Lead Time: In stock
Description: Proximity Sensor
Payment: T/T
Product Description

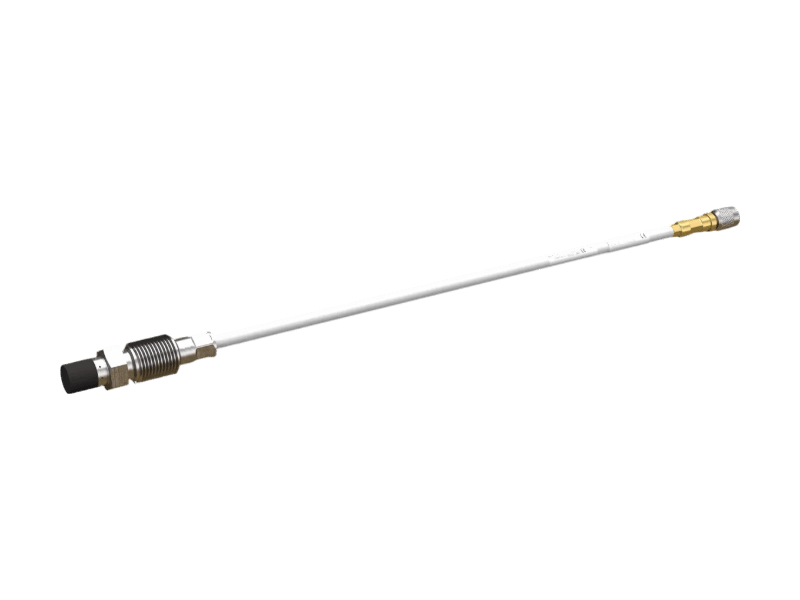

The TQ912-011 (part number 111-912-000-011 A1-B6-E5000-F2-G4800-H05) is an eddy current proximity sensor that does not operate independently but forms a complete proximity measurement chain together with an extension cable and a signal conditioner.
Usage:The sensor is used for non-contact measurement of the relative displacement between the moving and stationary parts of rotating machinery. Its output signal is proportional to the distance between the sensor probe and the target metal surface.
Note: This product is designed for reverse installation.
Function & Features
- The TQ912-011 111-912-000-011 sensor is the core front end of the "TQ9xx measurement chain" and is designed for use with the EA90x (to extend the distance from the sensor to the conditioner as needed) or the IQS900.
- The TQ912-011 111-912-000-011 probe is injection-molded from PPS engineering plastic and houses the induction coil; the sensor body is constructed from stainless steel.
- The TQ912-011 111-912-000-011 is available with metric and imperial thread sizes and includes options such as an interconnect protector (IP172) and a junction box (JB118).
Specifications
|
Item |
Description |
|
Model |
TQ912-011 111-912-000-011 |
|
Part Number |
A1-B6-E5000-F2-G4800-H05 |
|
Sensor and cabling with a total system (chain) length of 1, 5 or 10 m |
<5% for-30 to 150°C (-22 to 302°F) |
|
Pressure between sensor tip and body |
6 bar (100 psid) max. |
|
Protection rating (according to IEC 60529) |
The head of the sensor (sensor tip and integral cable) is rated IP68 |
|
Vibration (according to IEC 60068-2-26) |
5 g peak between 10 and 500 Hz |
|
Shock acceleration (according to IEC 60068-2-27) |
15 g peak (half sine impulse, 11 ms duration) |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
