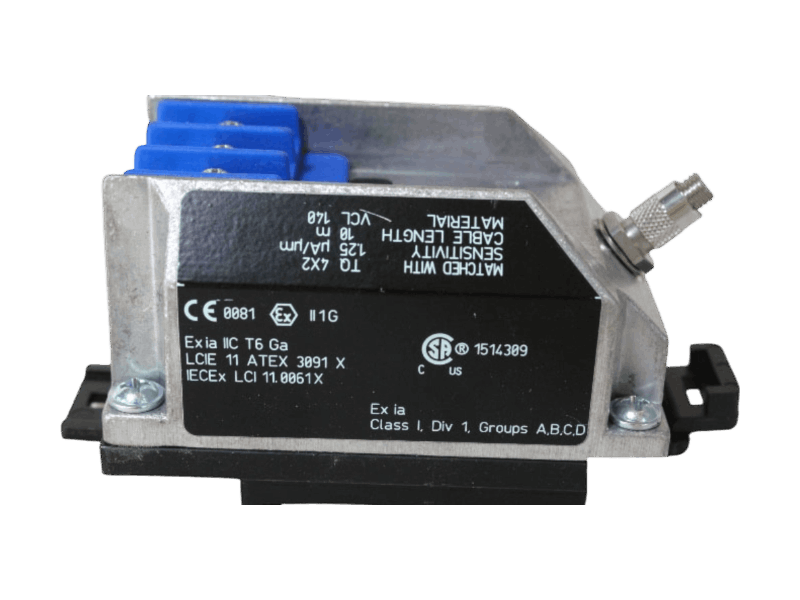

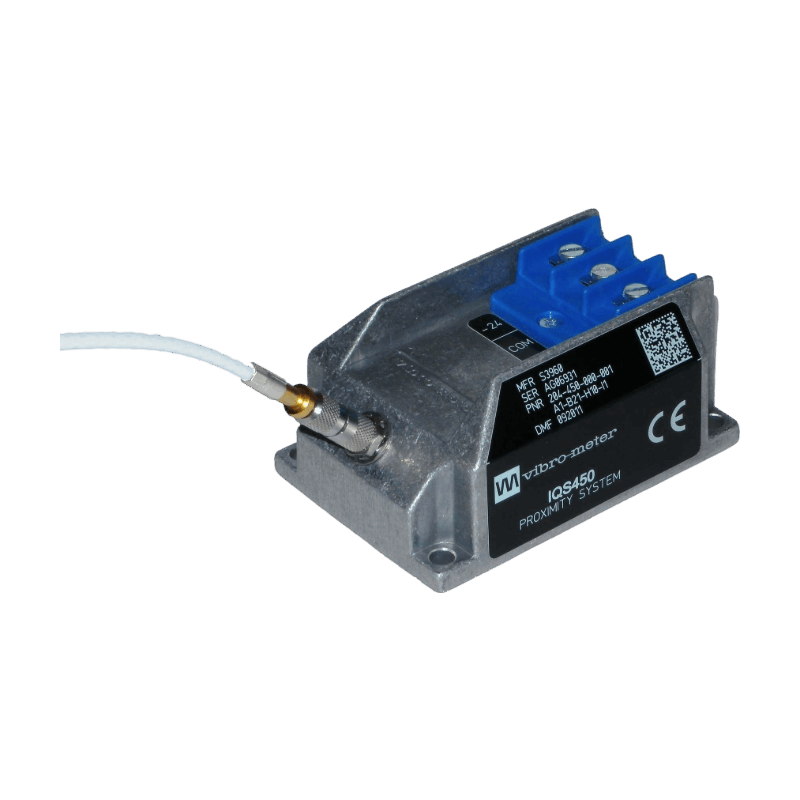

Vibro-Meter IQS450 204-450-000-002 A1-B21-H05-I0 Signal Conditioner
Item Number: IQS450 204-450-000-002 A1-B21-H05-I0
Brand:Vibro-Meter
Lead Time: In stock
Description:Signal Conditioner
Payment: T/T
Product Description
The IQS450 204-450-000-002 A1-B21-H05-I0 is a signal conditioner designed for use with the TQ401 non-contact sensor. The IQS450 generates a high-frequency signal to drive the sensor's (TQ401) probe coil, generating an electromagnetic field.
When the sensor approaches a metallic target surface (such as a shaft), the electromagnetic field energy changes, altering the impedance of the probe coil. The conditioner detects this change, demodulates it, and converts it into a standardized electrical output signal proportional to the gap distance.
Function & Features
- Core Functionality: The IQS450 204-450-000-002 includes a high-frequency modulator/demodulator, which provides the sensor drive signal and processes the return signal.
- Calibration System: The IQS450 and TQ401 are supplied as a precalibrated system; components (regulators or sensors) within the system can be interchanged without recalibration.
- Target Material: The IQS450 204-450-000-002 must be a conductive metal (e.g., steel, iron, aluminum, etc.). Different metal materials affect the sensor's sensitivity and linear range, requiring calibration for the target material (the system is typically calibrated to mild steel at the factory).
Specifications
|
Parameter |
Details |
|
Model Number |
IQS450 204-450-000-002 A1-B21-H05-I0 |
|
Voltage output, 3-wire configuration |
|
|
Voltage |
-20 to -32 V* |
|
Current |
-13 mA ±1 mA (-25 mA max.) |
|
Current output, 2-wire configuration |
|
|
Voltage |
-20 to -32 V* |
|
Current |
-15.5 to -20.5 mA |
|
Supply input capacitance |
1 nF |
|
Supply input inductance |
100 μH |
|
Standard version (Weight) |
140 g approx. |
|
Ex version (Weight) |
220 g approx. |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
