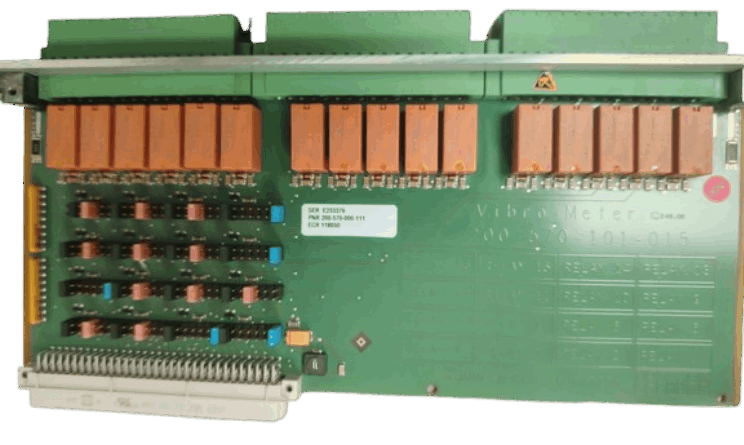

Vibro-Meter RLC16 200-570-000-112 Relay Card
Item Number: RLC16 200-570-000-112
Brand:Vibro-Meter
Lead Time: In stock
Description: Relay Card
Payment: T/T
Product Description
RLC16 200-570-000-112 is a relay card for machinery protection and condition monitoring systems. It is an optional accessory for applications where the four relays on the IOC4T input/output card are insufficient and additional relays are required. It mounts to the rear of the ABE04x or ABE056 and connects directly to the rack backplane via a single connector.
Function & Features
- Relay Configuration: The RLC16 200-570-000-112 has 16 relays, each with change-over contacts supporting normally open (NO), normally closed (NC), and common (COM).
- The RLC16 200-570-000-112 offers two operating modes: normally energized (NE) (contacts operate when power is applied) and normally de-energized (NDE) (contacts operate when power is removed).
- Wiring: Each relay in the RLC16 200-570-000-112 has three screw terminals, with the terminal block located at the rear of the chassis.
Specifications
| Parameter | Details |
|---|---|
| Model | RLC16 200-570-000-112 |
| Relay names | RL1 to RL16 |
| Type | PE014005 |
| Contact arrangement | 1x COM, 1x NC and 1x NO contact/relay. All relay contacts are available on J1, J2 and J3. |
| Nominal rated voltage | 250 Vₐc |
| Nominal rated current | 5 Aₐc |

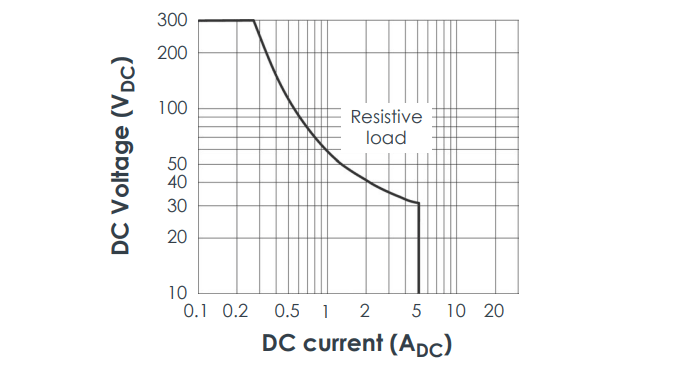

| Maximum breaking capacity | 1250 VA |
| Operate / release / bounce time | Typically 8 / 8 / 6 ms |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A:Relay Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
