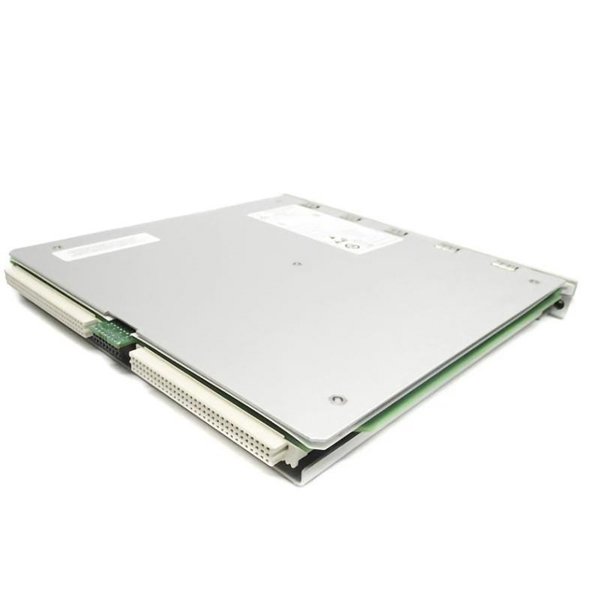

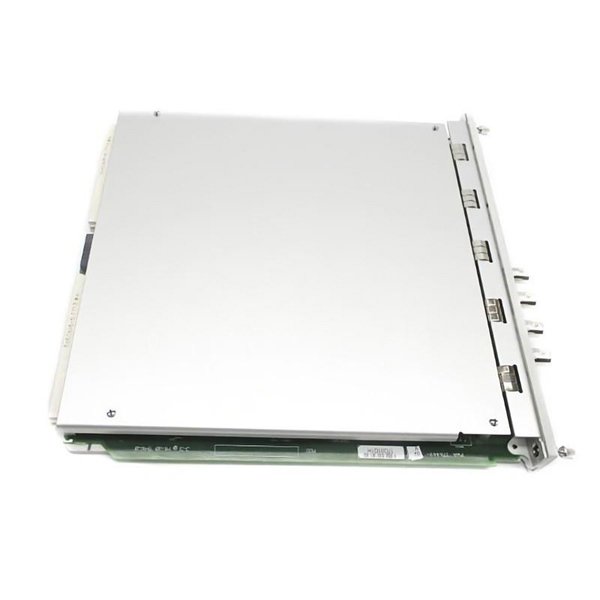

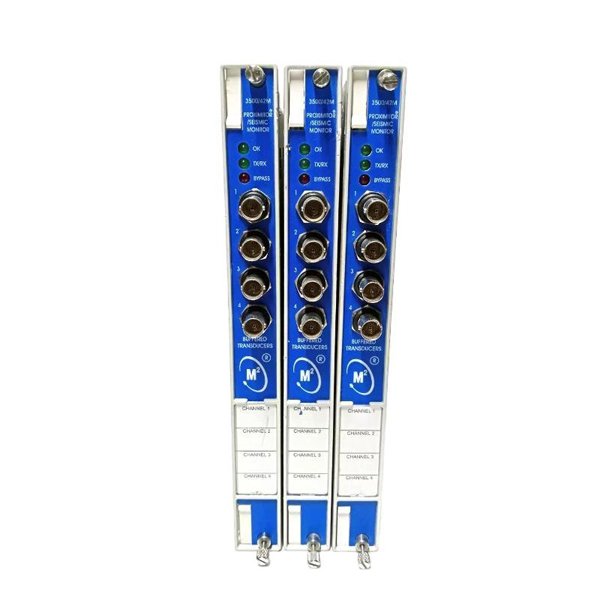

Bently Nevada 3500/42-01-00 176449-02+128229-01 Proximitor Seismic Monitor

The Bently Nevada 3500/42-01-00 Proximitor Seismic Monitor (part numbers 176449-02 and 128229-01) is an integral component of the renowned 3500 Series machinery protection system. Engineered by Bently Nevada, a pioneer in condition monitoring and asset protection, this seismic monitor module is designed to deliver precise vibration and seismic data critical for the protection of large rotating machinery and structural assets.

This device uses Proximitor technology to convert sensor signals into reliable and accurate measurements of machinery vibration and seismic activity. The 3500/42-01-00 module provides a robust, continuous monitoring solution that enhances plant reliability and safety by early detection of abnormal conditions, reducing unplanned downtime and costly repairs.

Product Specifications

Product Applications

The Bently Nevada 3500/42-01-00 Seismic Monitor is widely used in demanding industrial environments where continuous machine and structural health monitoring is essential:

• Power Generation Plants: Monitoring turbine vibration and seismic events to protect critical equipment.

• Oil and Gas Industry: Ensuring integrity of compressors, pumps, and other rotating machinery in refineries and pipelines.

• Petrochemical Facilities: Providing early warning for equipment distress due to vibration or seismic activity.

• Mining Operations: Monitoring heavy machinery and structural conditions in harsh environments.

• Manufacturing Plants: Protecting critical machinery from vibration-induced damage.

• Infrastructure Monitoring: Used in buildings and bridges for seismic activity tracking and structural health assessment.

The device’s high reliability and accurate measurement capabilities make it essential for maintaining operational safety and optimizing maintenance schedules.

Product Advantages

• High Accuracy and Reliability: Utilizes advanced Proximitor technology to deliver precise vibration and seismic data for early fault detection.

• Robust Construction: Designed to withstand harsh industrial environments with wide temperature tolerance and electromagnetic interference resistance.

• Modular Design: Easily integrates into the Bently Nevada 3500 Series system and supports flexible installation options.

• Comprehensive Monitoring: Offers both analog and digital outputs, enabling seamless communication with control and monitoring systems.

• Improved Asset Protection: Enables early detection of potential machinery faults, reducing unexpected downtime and costly repairs.

• Certified Safety Compliance: Meets global certification standards ensuring safe operation in critical applications.

• Ease of Maintenance: Modular, plug-and-play design allows for quick replacement and system upgrades without significant downtime.

• Versatile Application: Suitable for a wide range of rotating equipment and structural monitoring needs.

Frequently Asked Questions (FAQ)

1. What types of sensors are compatible with the 3500/42-01-00 Proximitor Seismic Monitor?

   It is compatible with Bently Nevada proximity probes and seismic sensors designed for the 3500 Series.

2. Can this module be used as a standalone monitor?

   No, it is designed to be part of the 3500 Series system and requires integration with a rack and control system.

3. What kind of outputs does the seismic monitor provide?

   It provides both analog and digital outputs to interface with the 3500 system and external monitoring devices.

4. Is the 3500/42-01-00 suitable for hazardous locations?

   It must be installed in appropriate enclosures; consult ABB/Bently Nevada documentation for hazardous area certifications.

5. What is the typical installation environment for this product?

   It is intended for industrial control rooms or panels with standard rack mounting.

6. How often should the module be calibrated or serviced?

   Regular maintenance schedules vary by application, but periodic functional checks and calibration are recommended as per Bently Nevada guidelines.

7. Can this monitor detect both vibration and seismic events?

   Yes, it processes signals from sensors designed to detect both machine vibration and seismic activity.

8. What is the expected lifespan of the 3500/42-01-00 monitor?

   With proper maintenance, it typically lasts many years in industrial settings, often exceeding 10 years.

9. Are software updates required for this device?

   Firmware and software updates are managed through the 3500 system controller; check Bently Nevada for support tools.

10. Can the 3500/42-01-00 module be used with non-Bently sensors?

    It is optimized for Bently Nevada sensors; using other brands may affect accuracy and reliability.
